TM XL ESD

From €95.00

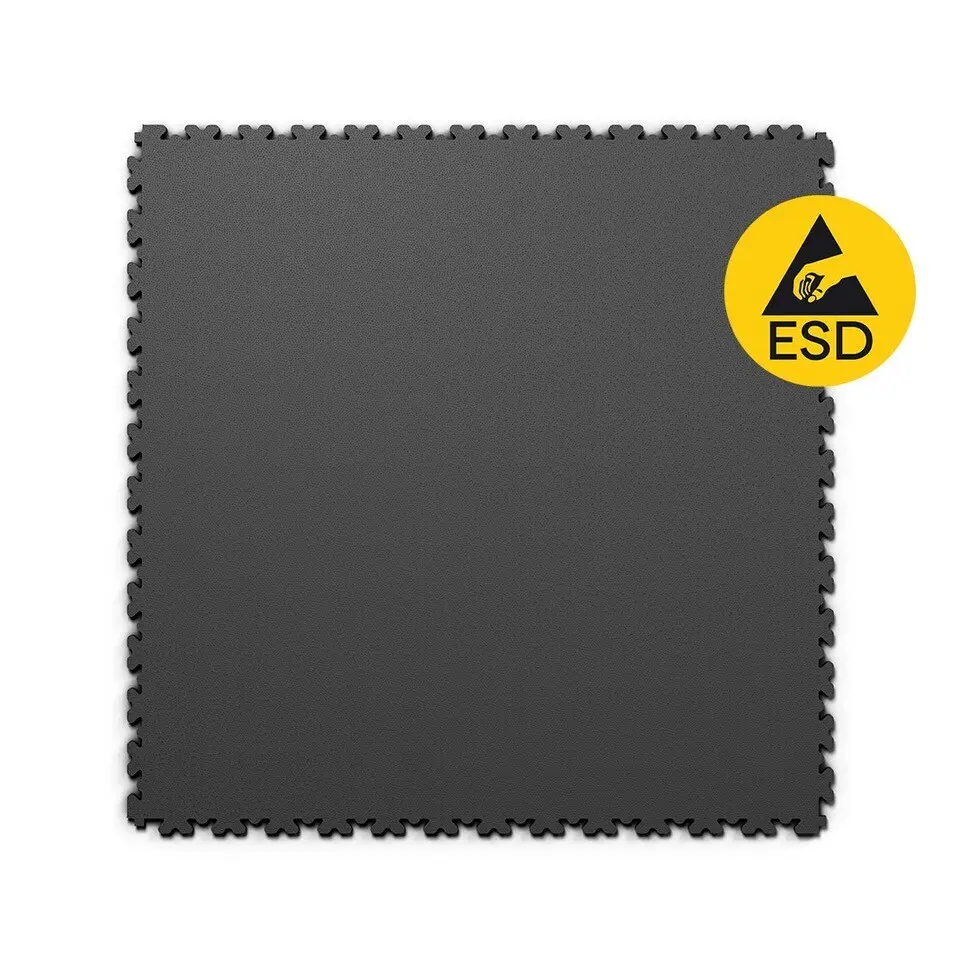

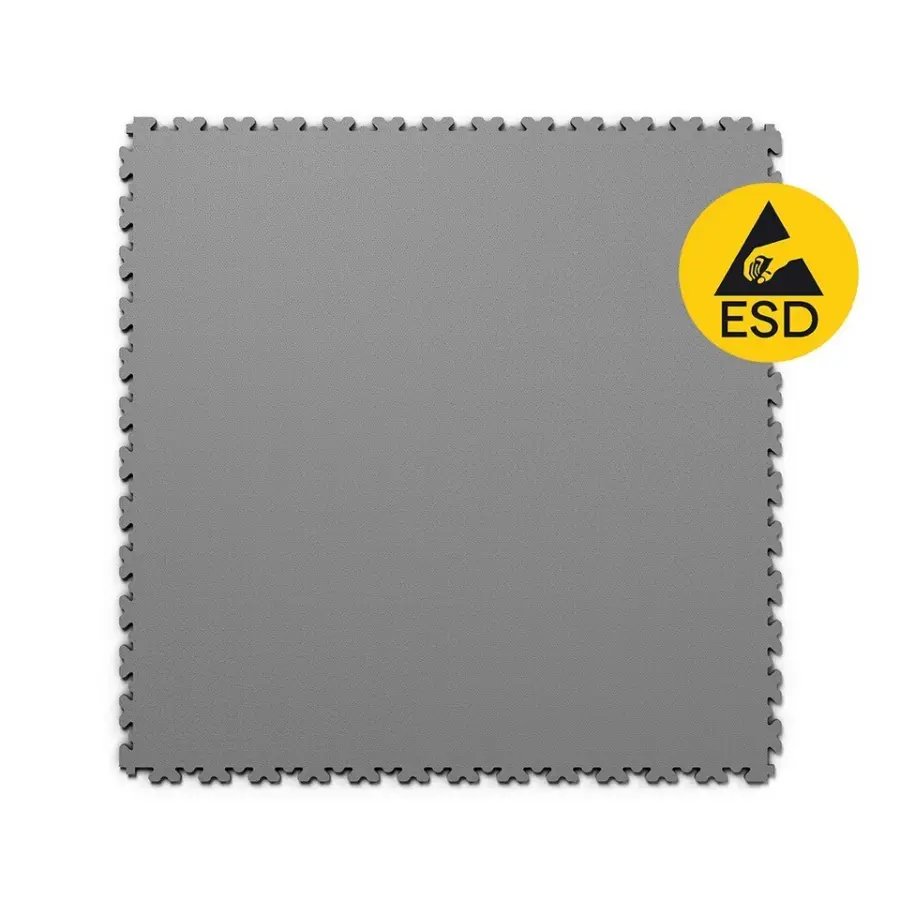

The electrostatic dissipative PVC tile in snaketop design.

  • Quick and easy installation
  • Excellent conductivity
  • Ideal for laboratories, rooms or halls with technically highly sensitive components or products
Surface:
Snakeskin
Colours:
Square metres:
x
=
m²

Price: €95.00 incl. VAT
(Net: €79.83)

plus shipping costs

Delivery time: approx. 2–3 weeks

Quantities under 50 m² can only be ordered online.
TM XL ESD Accessories Application examples Data & facts Downloads Customers also bought

TM XL ESD

for industrial, pharmaceutical, electrotechnical and even explosive environments.

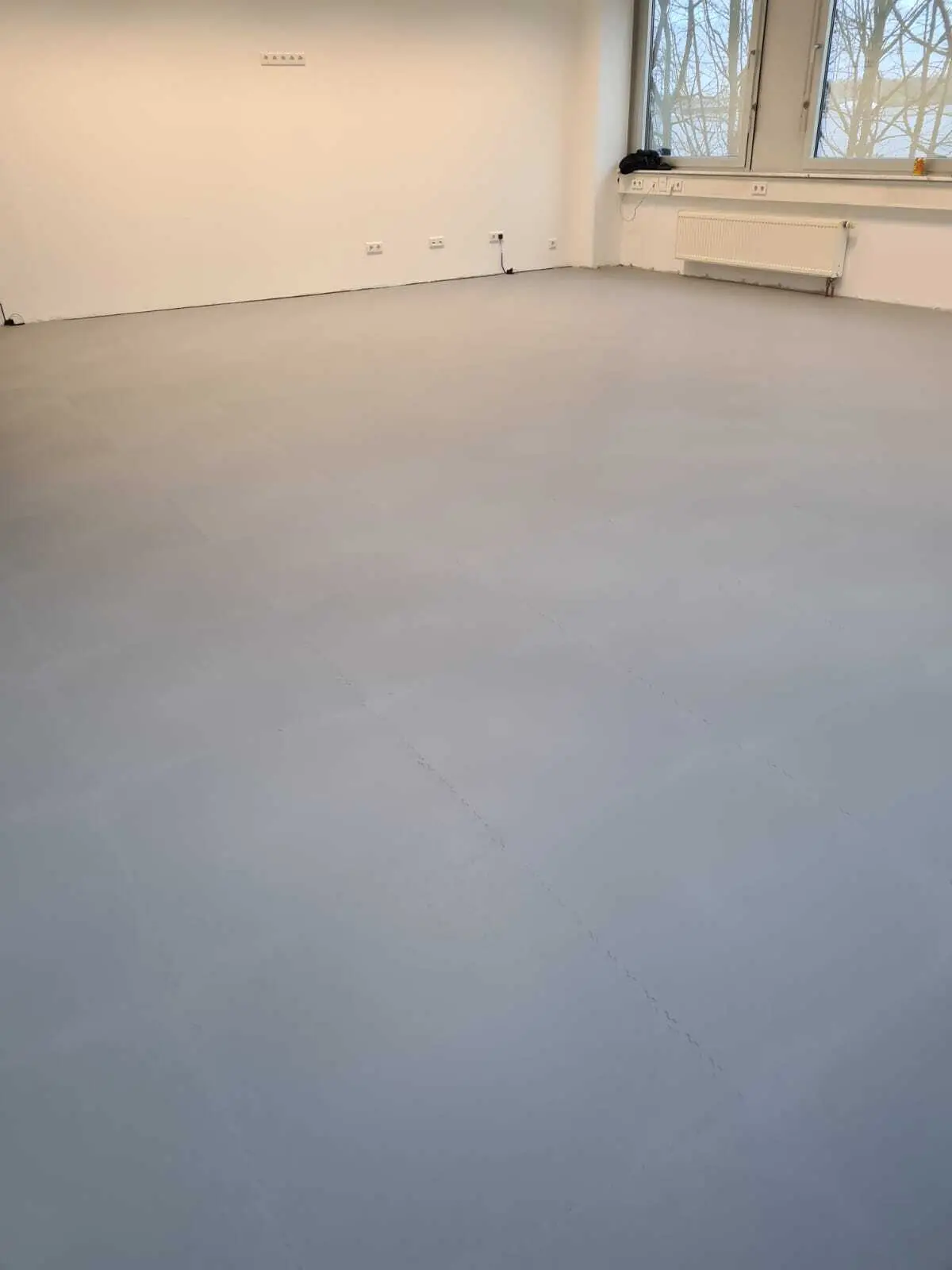

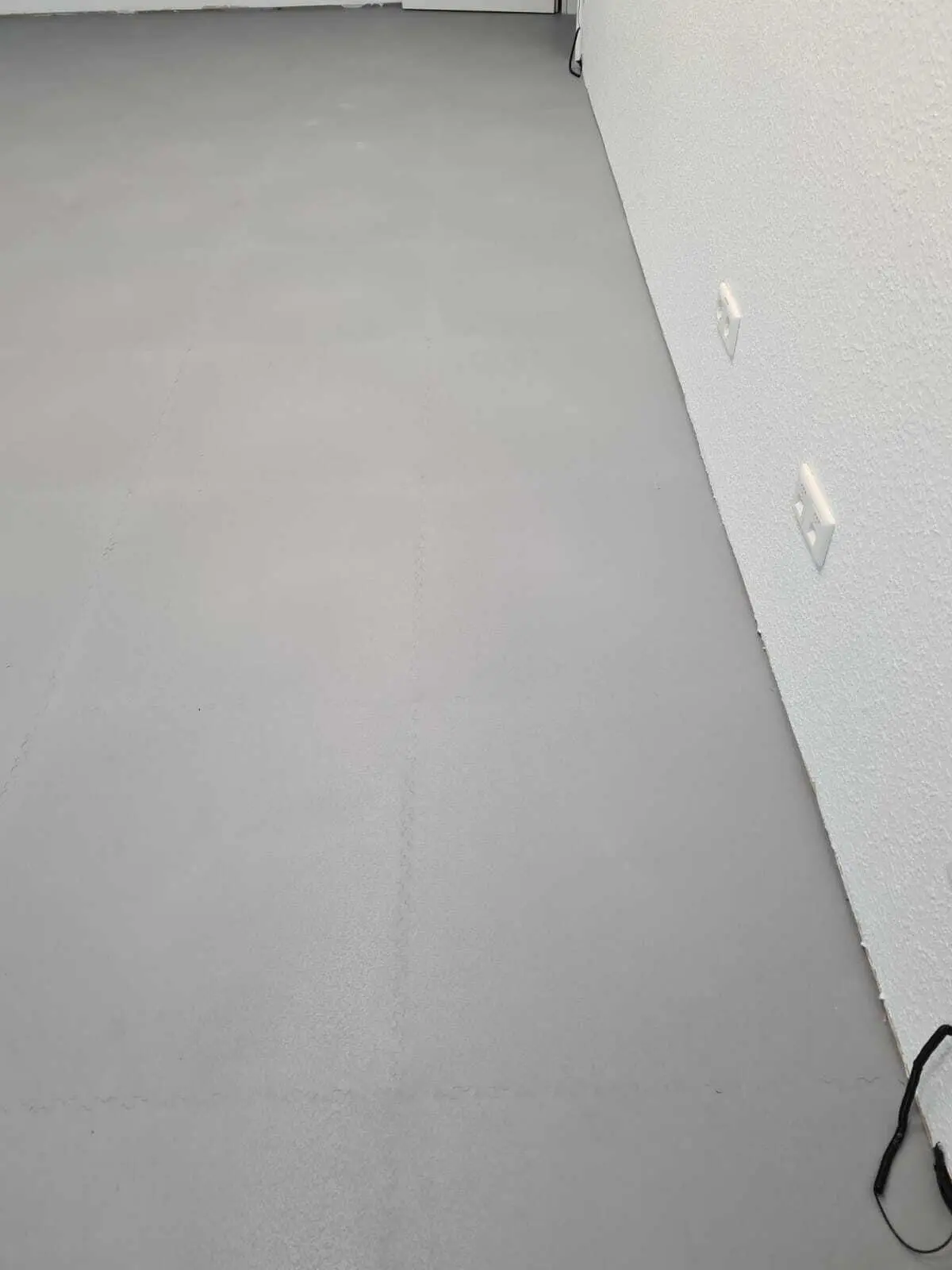

TM XL ESD – Industrial floor

Unique floor solution that eliminates electrostatic discharges. It is used mainly in laboratories, data centers, pharmaceutical and electrotechnical industries, and even in potentially explosive atmospheres.

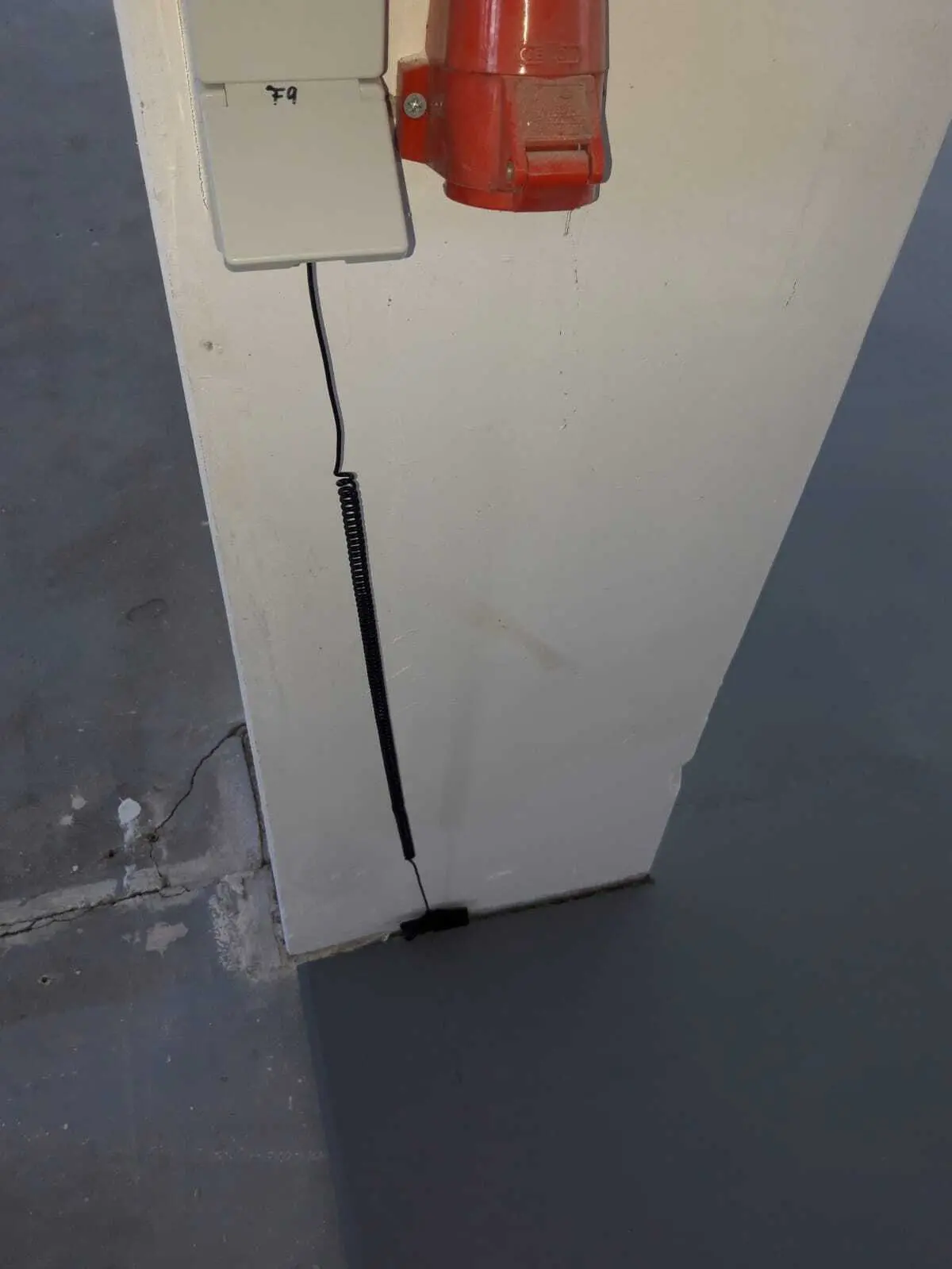

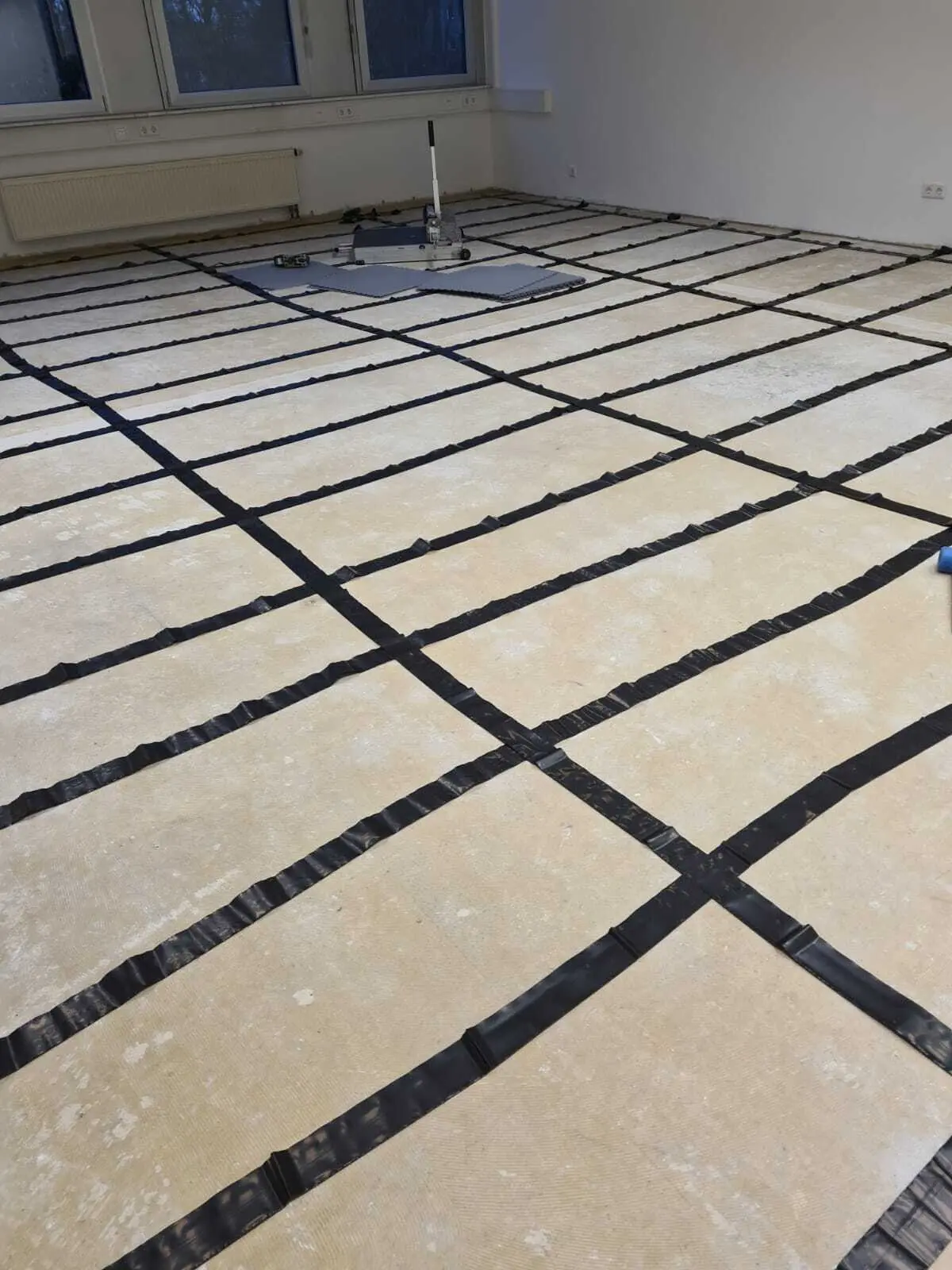

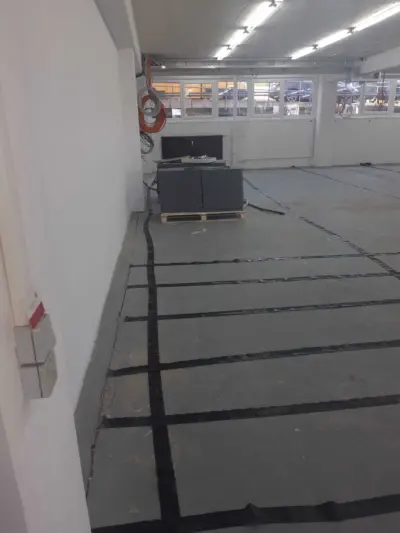

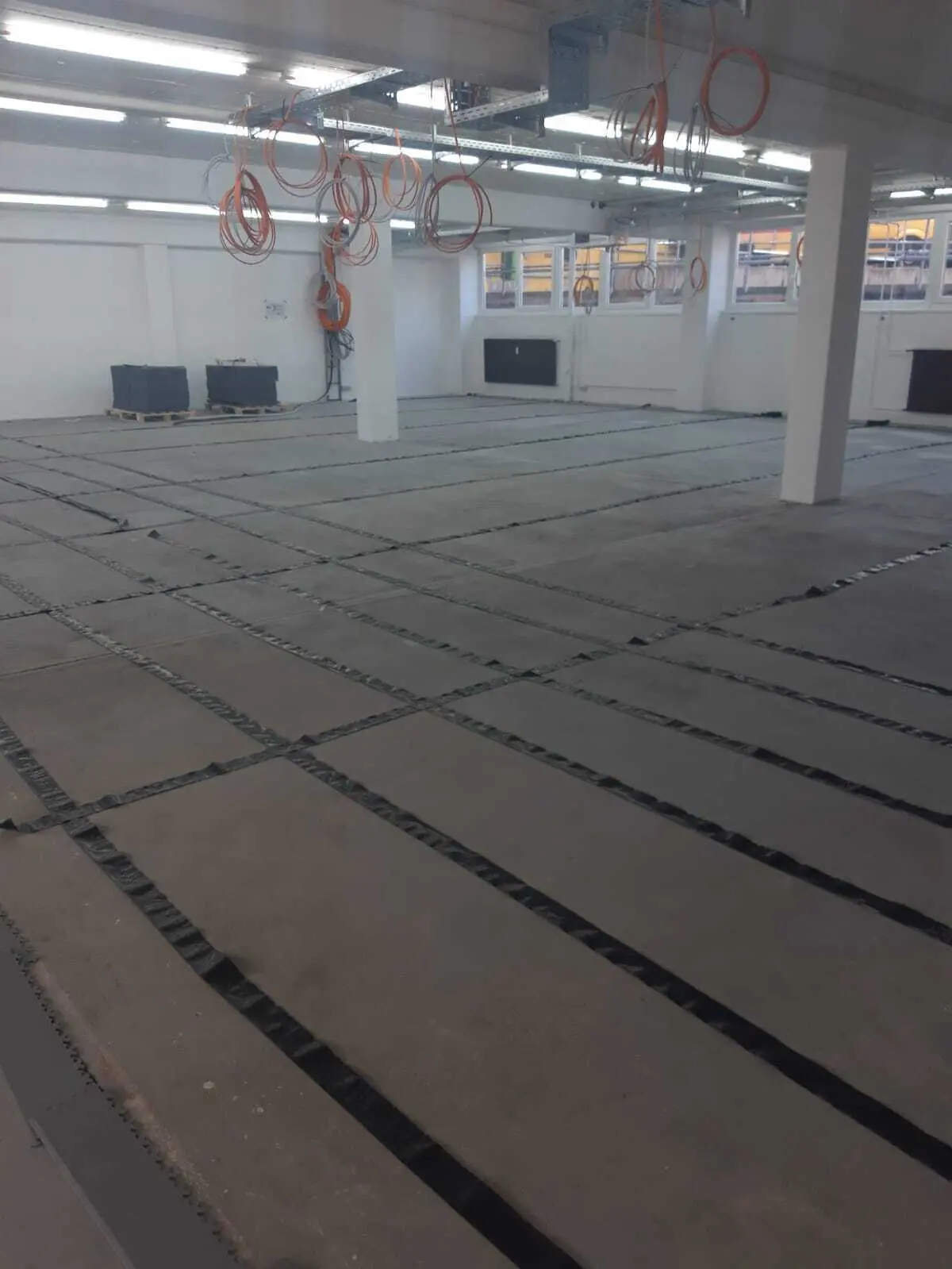

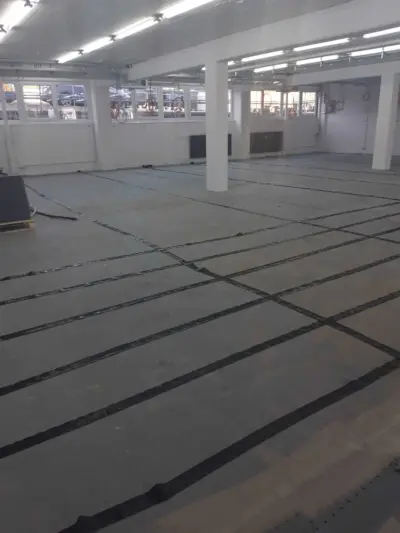

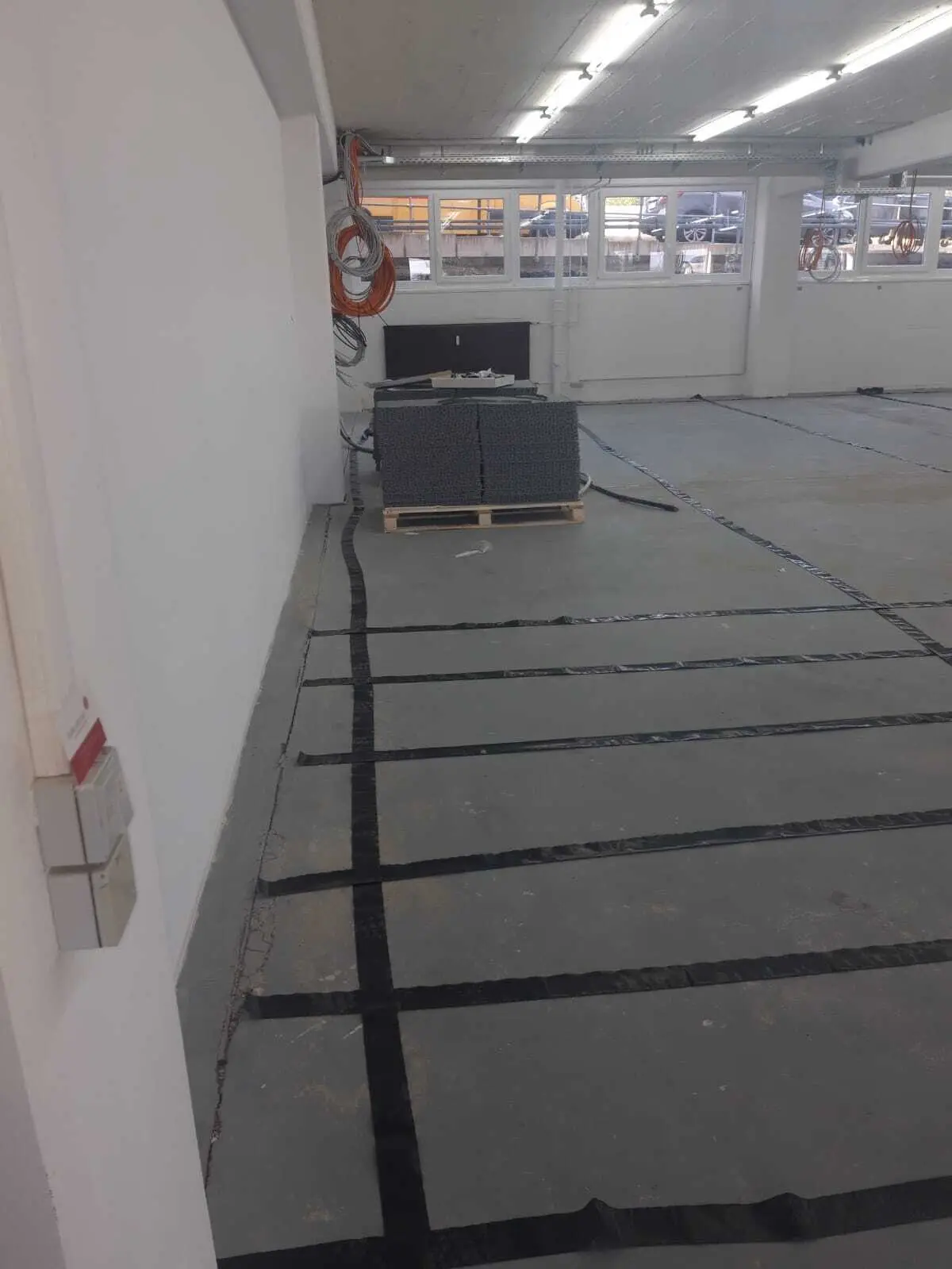

To complete a complete and functional ESD floor system, in addition to the ESD tiles, grounding tape and grounding kit - which includes a plug, a connecting cable, a connecting rivet, a metal grounding element and a CU self-adhesive tape - are required, which can be purchased separately.

These highly durable and easy-to-clean tiles are suitable for spaces where ESD flooring needs to be installed quickly and easily without gluing.

Rely on an ideal combination of stable and reliable conductivity and proven service life of ESD flooring.

Accessories

Matching accessories

    Application examples

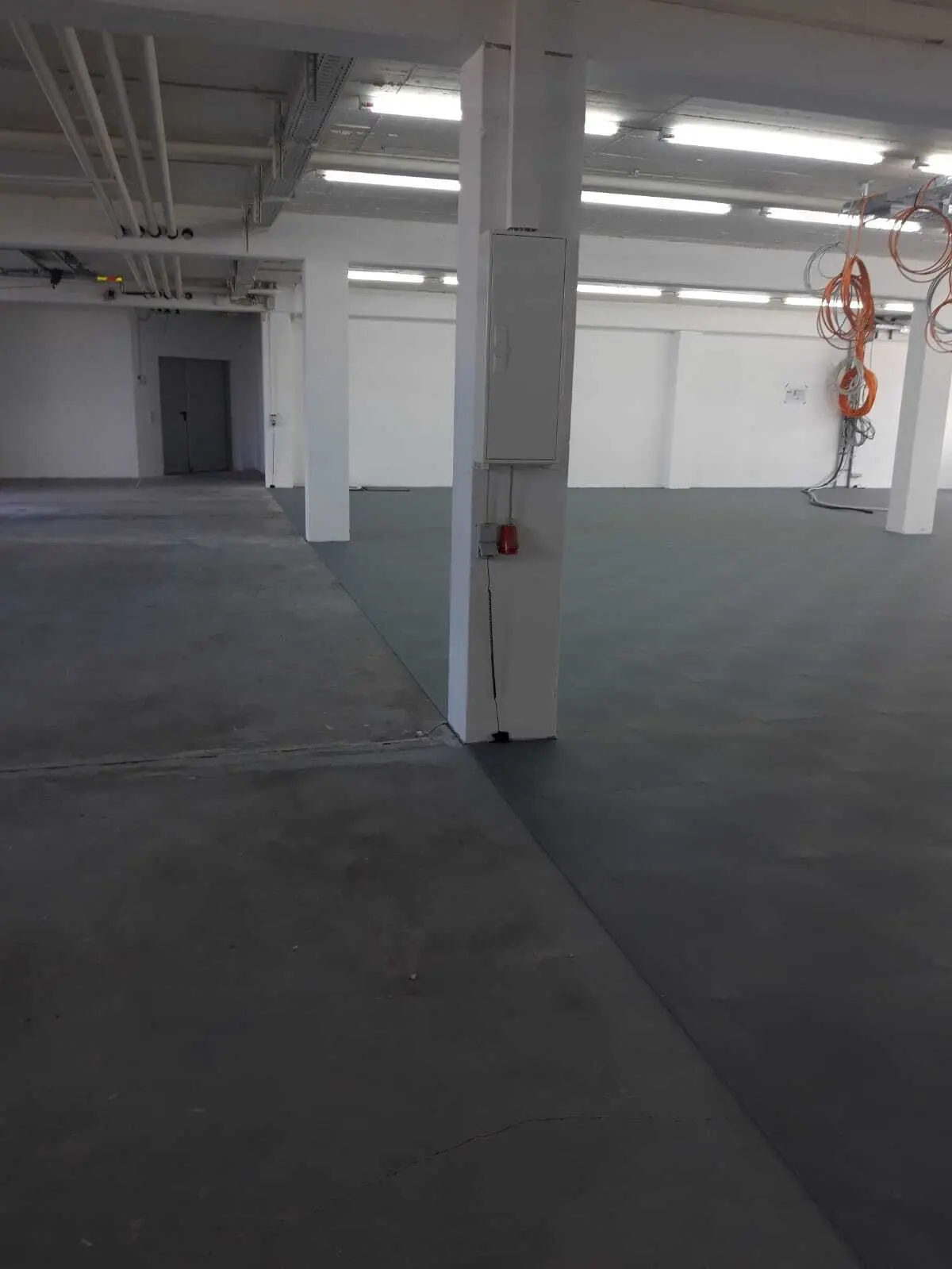

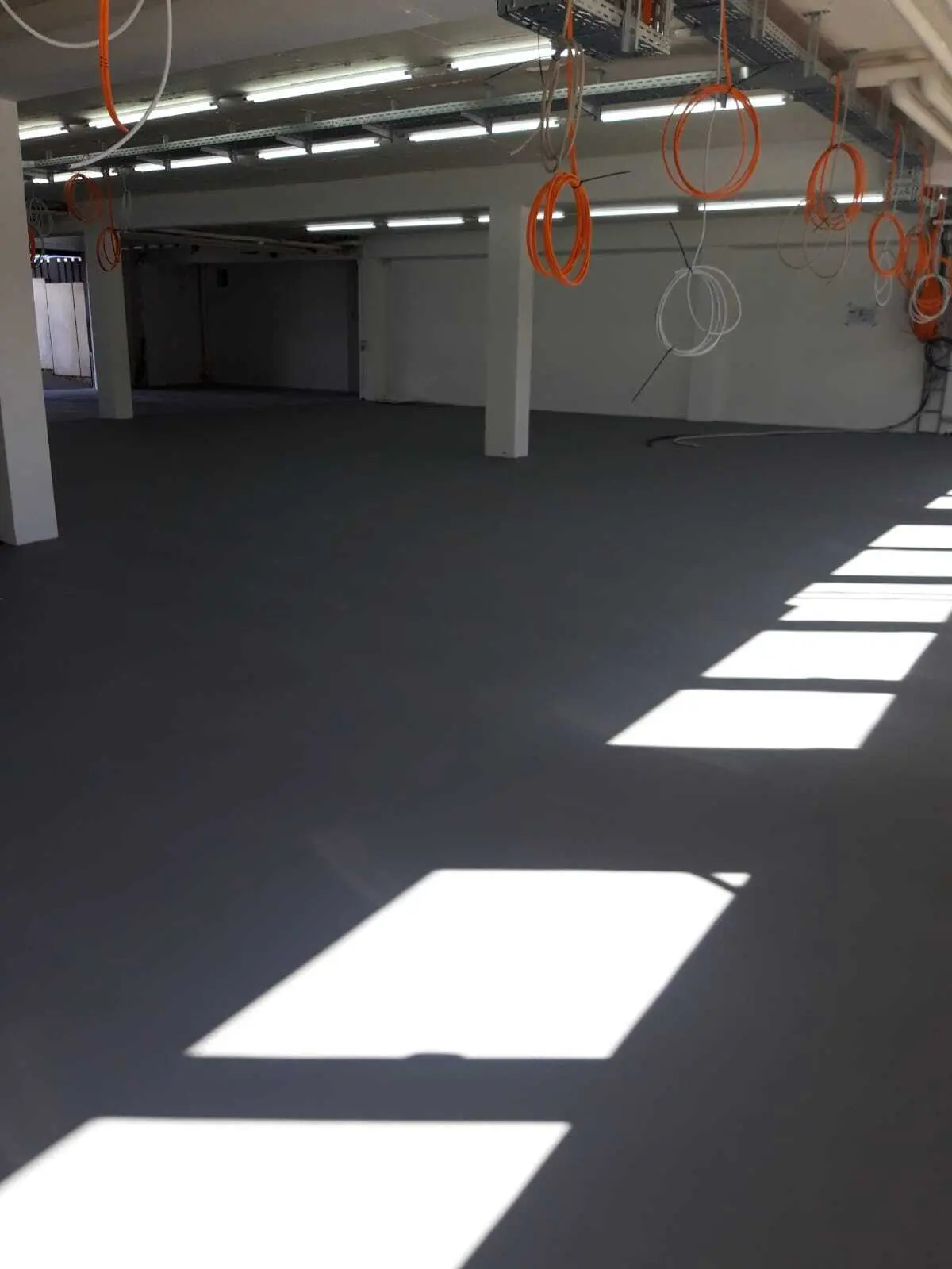

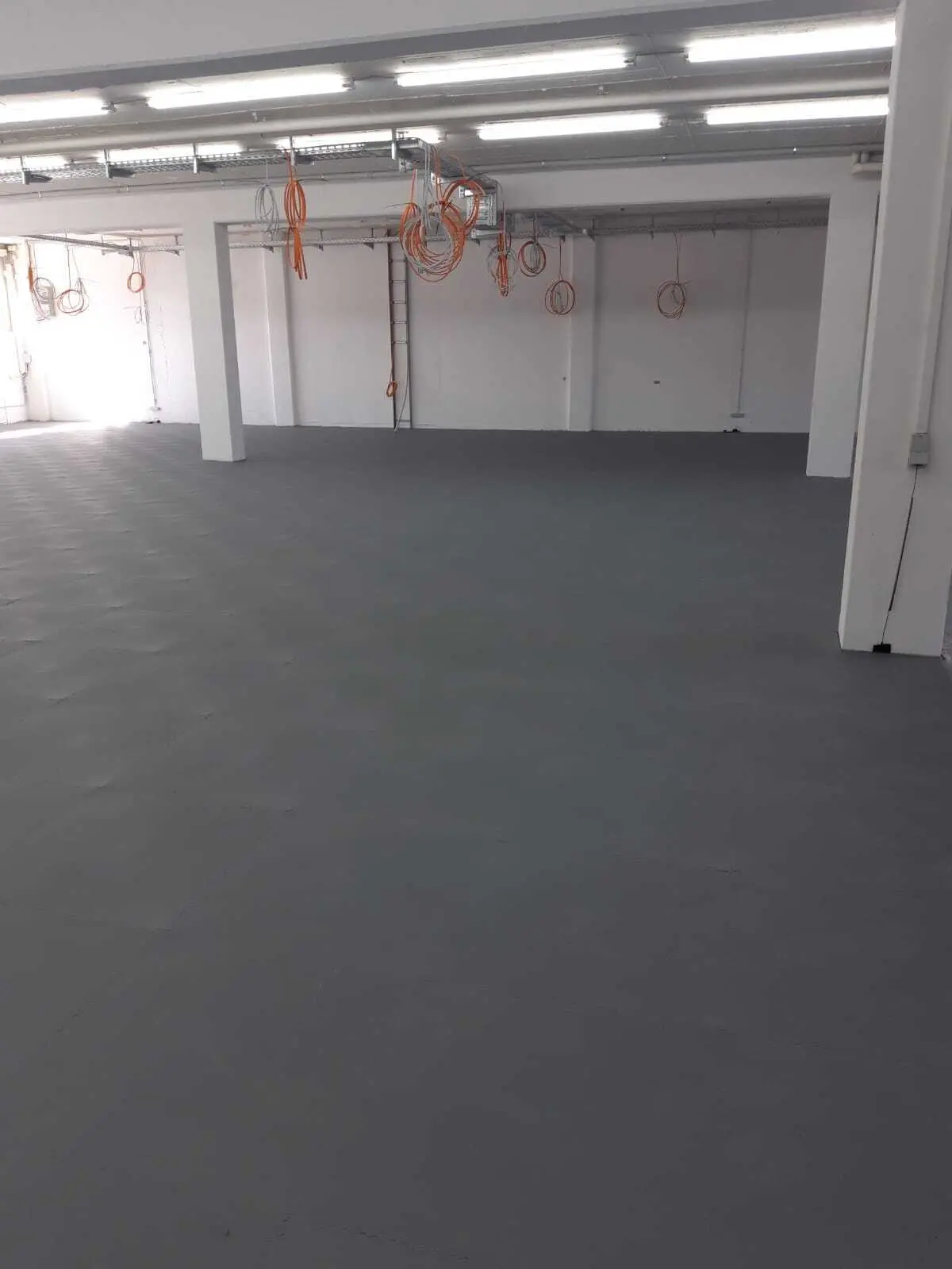

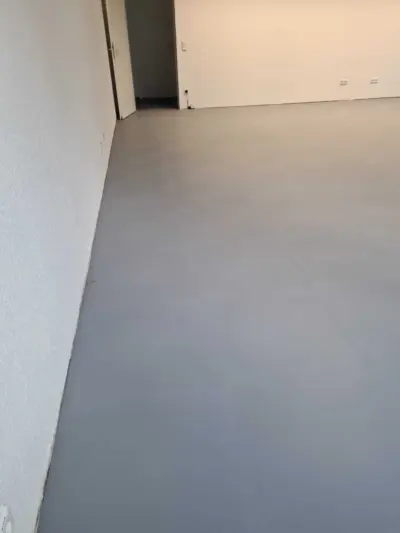

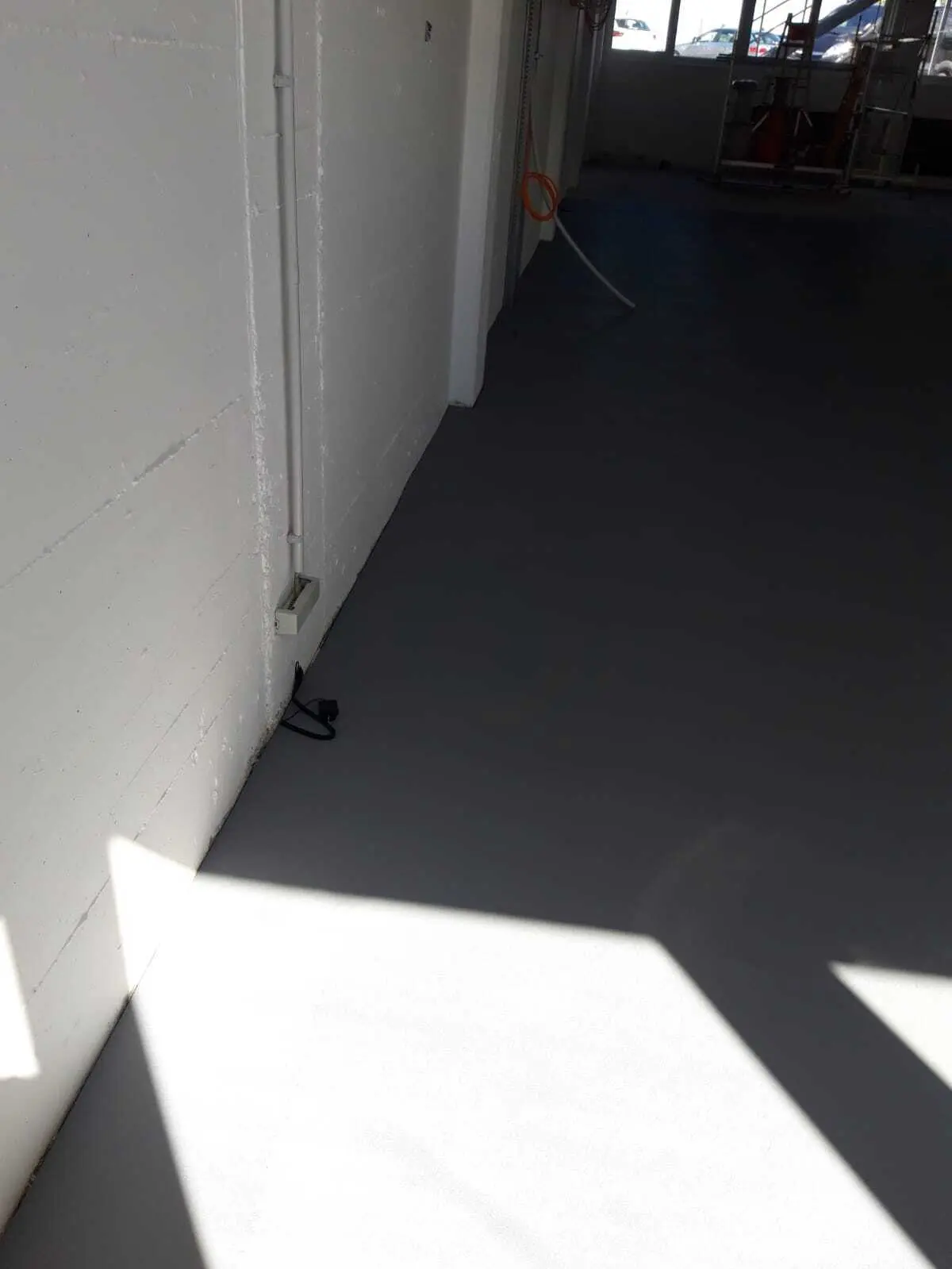

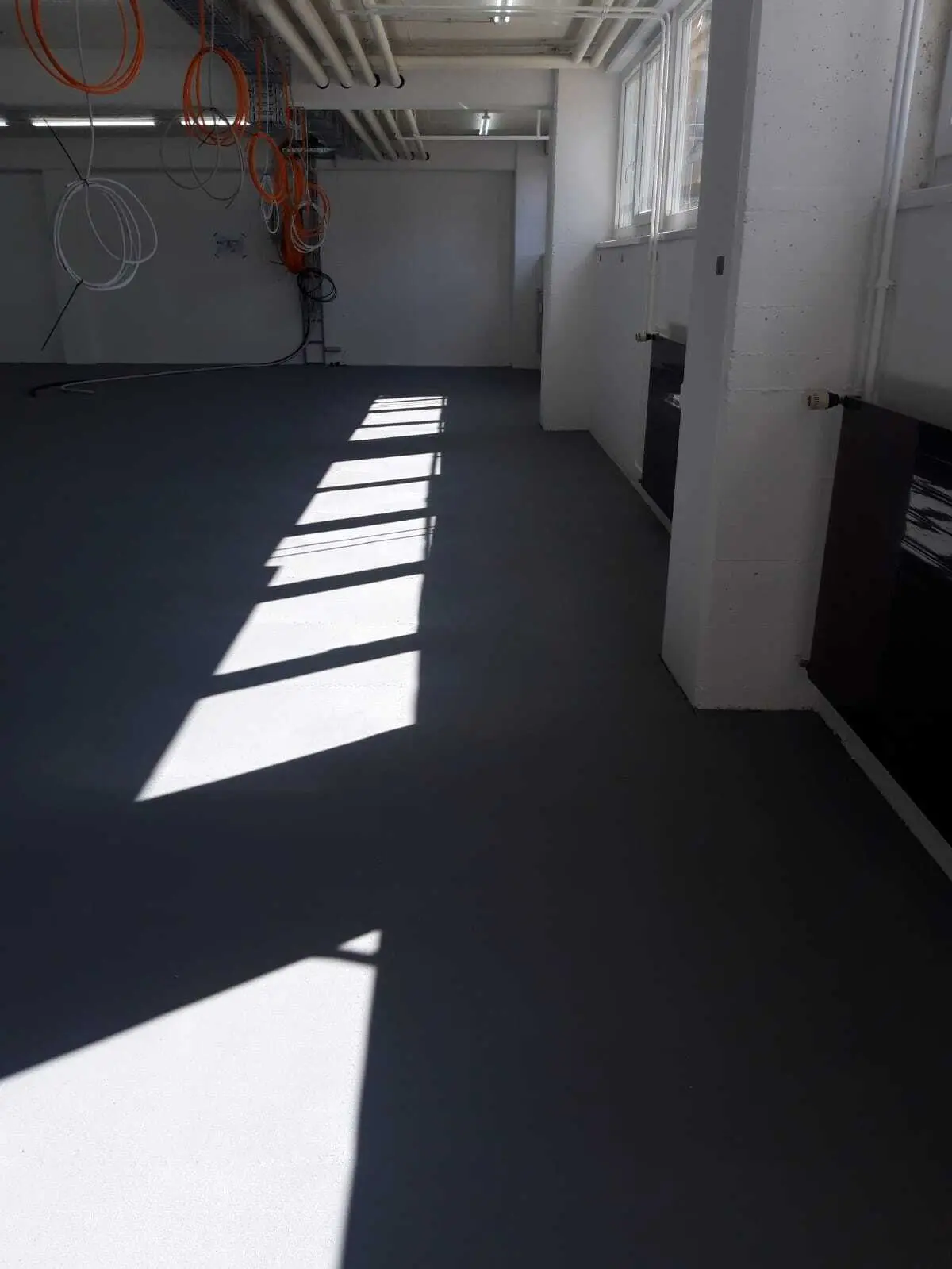

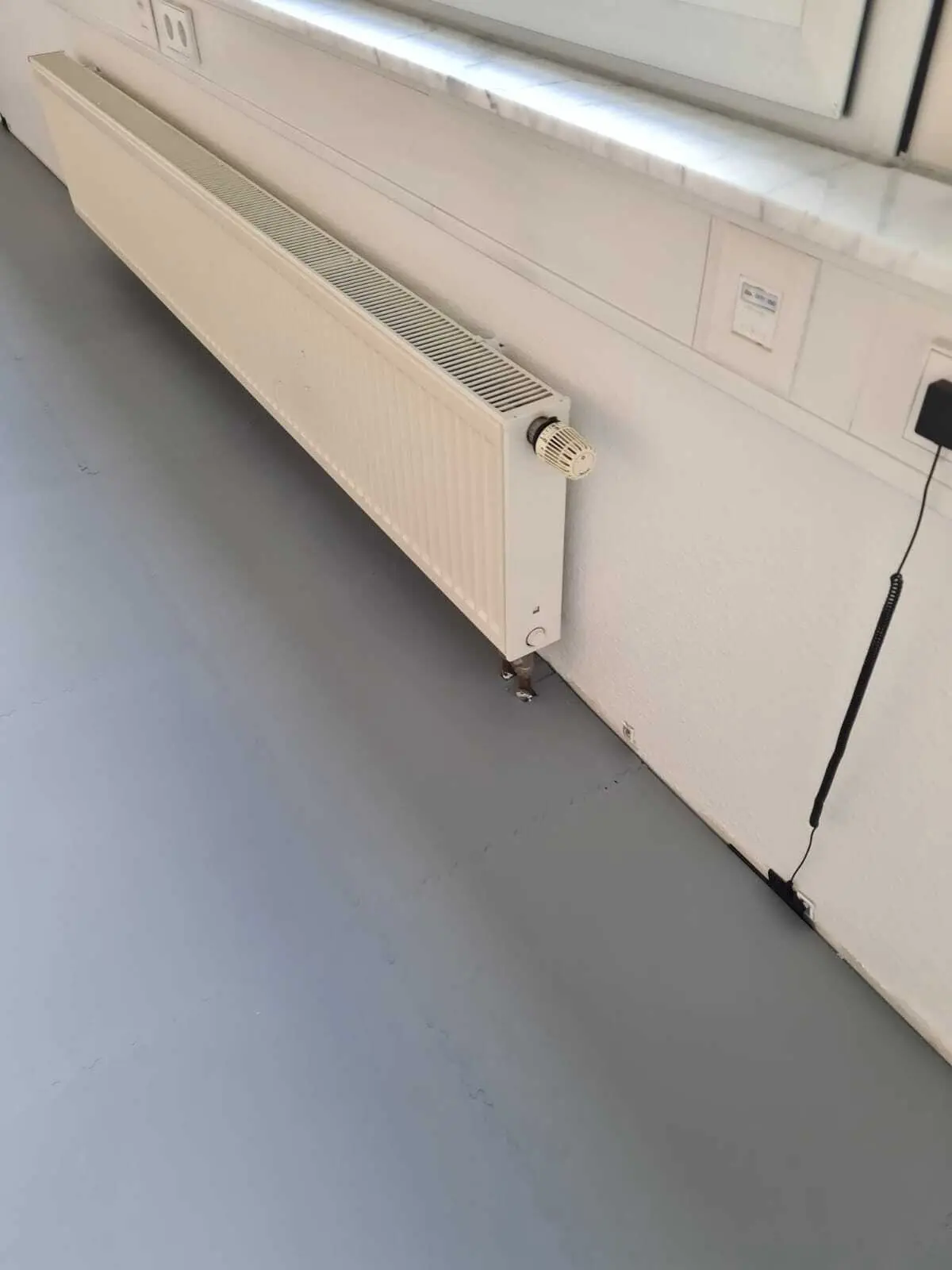

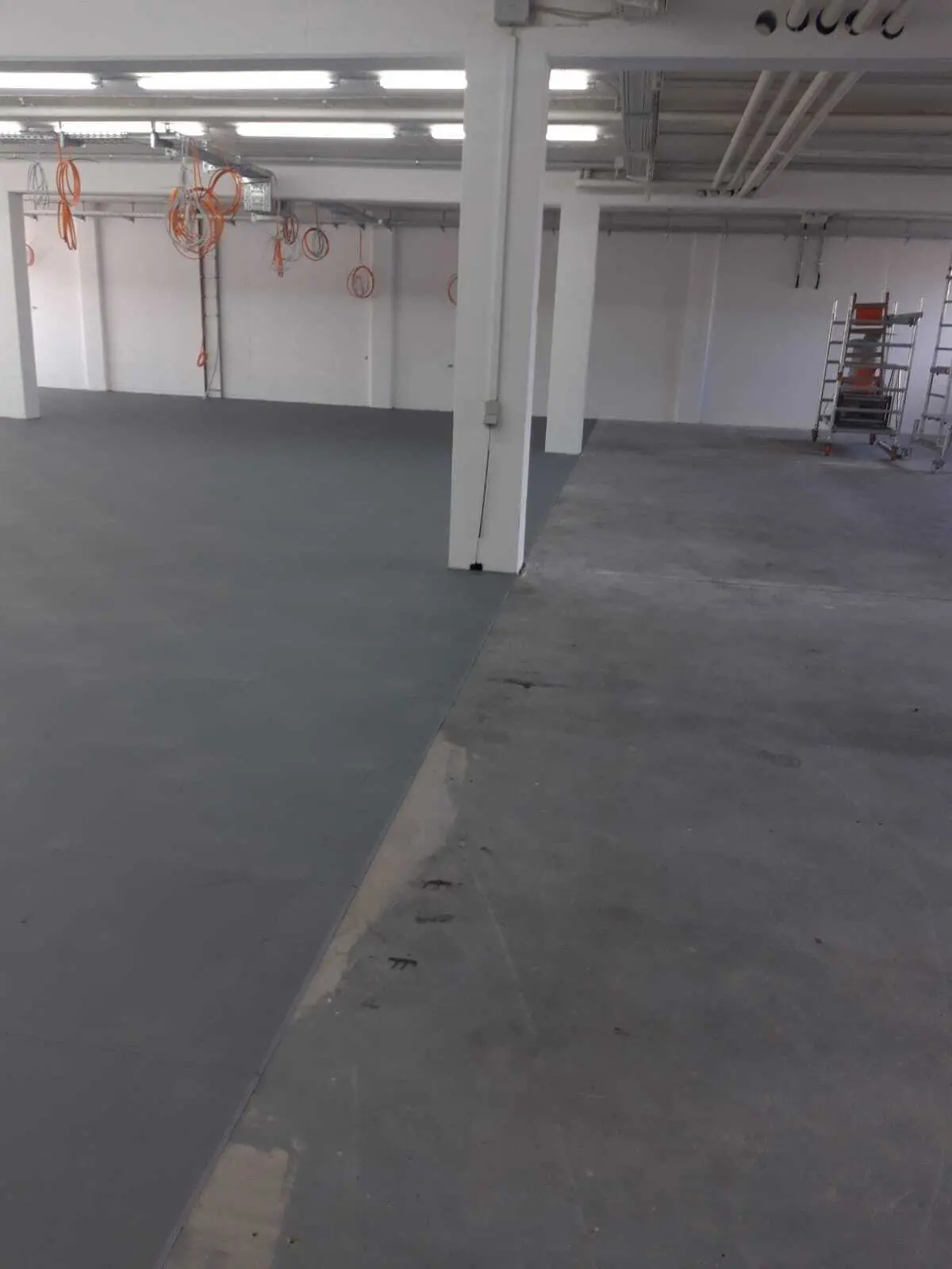

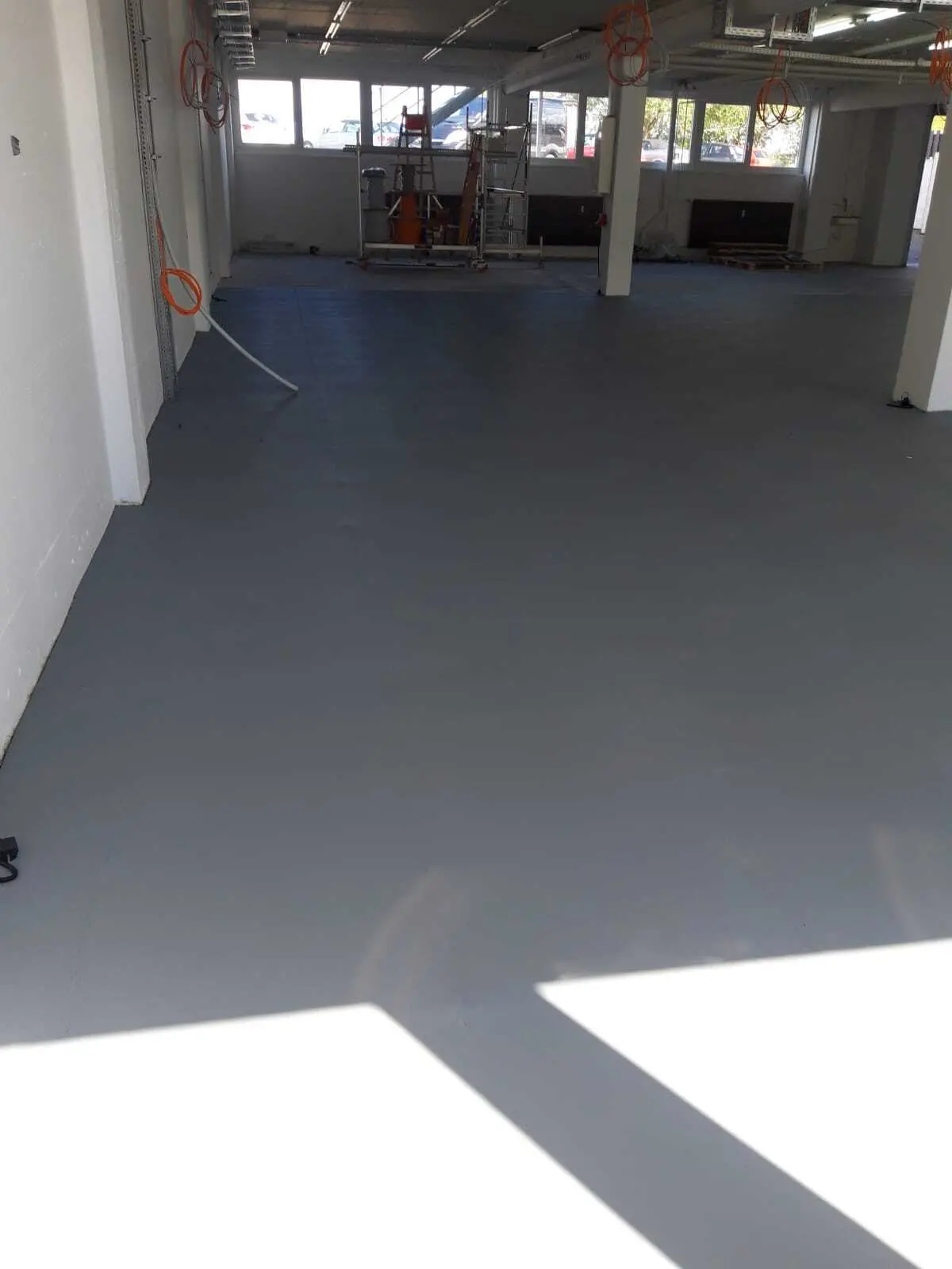

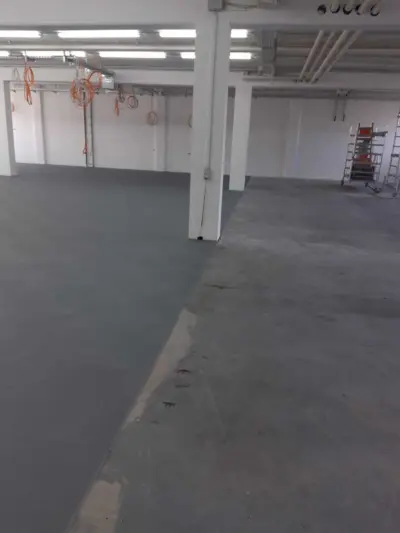

    The TM XL ESD is particularly suitable for use in production or manufacturing halls, laboratories, data centers, server rooms, etc.

    Data & facts

    The PVC floors are characterized primarily by their excellent conductivity, sound insulation and chemical resistance.

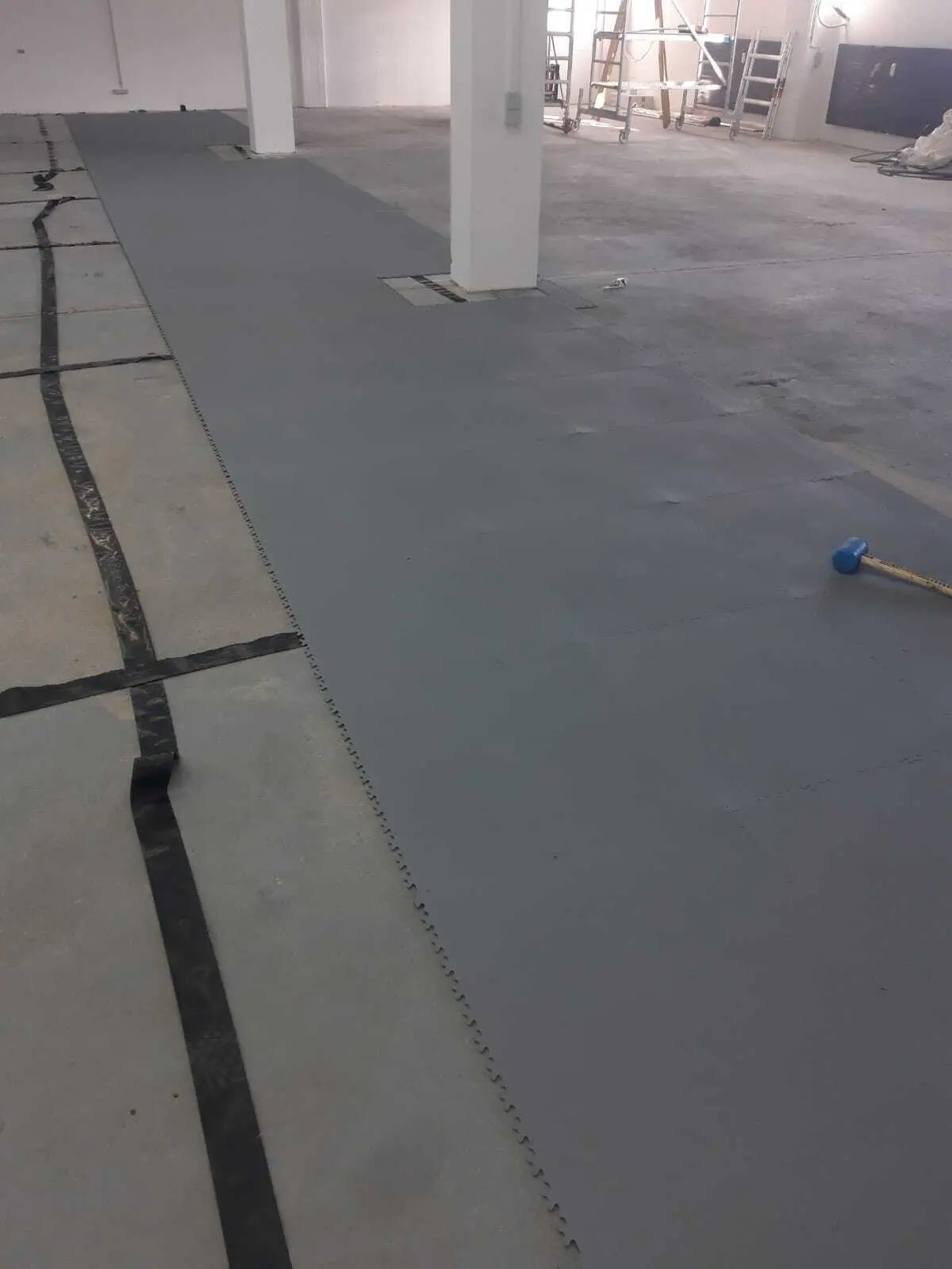

    The TM XL ESD is very robust and easy to install (floating on the fly).

    It is also very easy to maintain and clean and can be easily replaced thanks to the modular system.

    • Excellent conductivity
    • Grounding kit and grounding strap are required and sold separately
    • Installation possible on standard hard floors (wood, concrete, etc.)
    • No gluing, no fastening
    • Easy maintenance
    • Resistant PVC
    Material PVC
    Dimensions 653 x 653 mm
    Weight 5,75 kg/ m²
    Thickness 4 mm
    Slip resistance High (R10)
    Fire protection class Flame retardant (Bfl-S1)
    Resistance (R pp) < 10 high 5 Ohm (EN 61340-5-1)
    Electrical grounding resistance < 10 high 6 Ohm (EN 61340-5-1)

    Colours

    Graphite Light grey Blue Green
