TM Race

for the workshop, garage, showroom, trade fair or outdoor area

The TM Race click tiles are specially designed for the automotive sector and are child's play to handle. In just a few simple steps, you can create impressive, highly resilient and durable presentation surfaces for PS dreams on four or two wheels. The many combination options and extras leave nothing to be desired.

Various surface designs and a wide range of colours leave nothing to be desired. Because the panels can be combined with each other both in design and colour. In addition, numerous special colours and individual printing of single or multiple panels are possible.

They are simply laid out and joined together using the click system. In a matter of minutes, racing boxes, garages and exhibition stands become eye-catchers. Complex shapes are easily cut with a jigsaw, otherwise no further tools are necessary. The bevelled edge and corner pieces round off the overall appearance and serve as driveways. The floor is just as quickly dismantled and ready for transport - either as individual panels or in handy sections of 80 × 120 cm (suitable for Euro pallets).

The panels are suitable for all work around the vehicle. Loads of up to 30 tonnes per square metre are no problem. The material is resistant to almost all organic solvents, acids and alkalis and is optionally available in a flame-retardant or antistatic version. The tiles are designed for an extremely long service life. This is underlined by the functional guarantee of 15 years.

Accessories

Matching accessories

Reference ramp for TM Race

Expansion parts for TM Race

From €14.00

View product

Lighting strip for TM Race / Race Flat

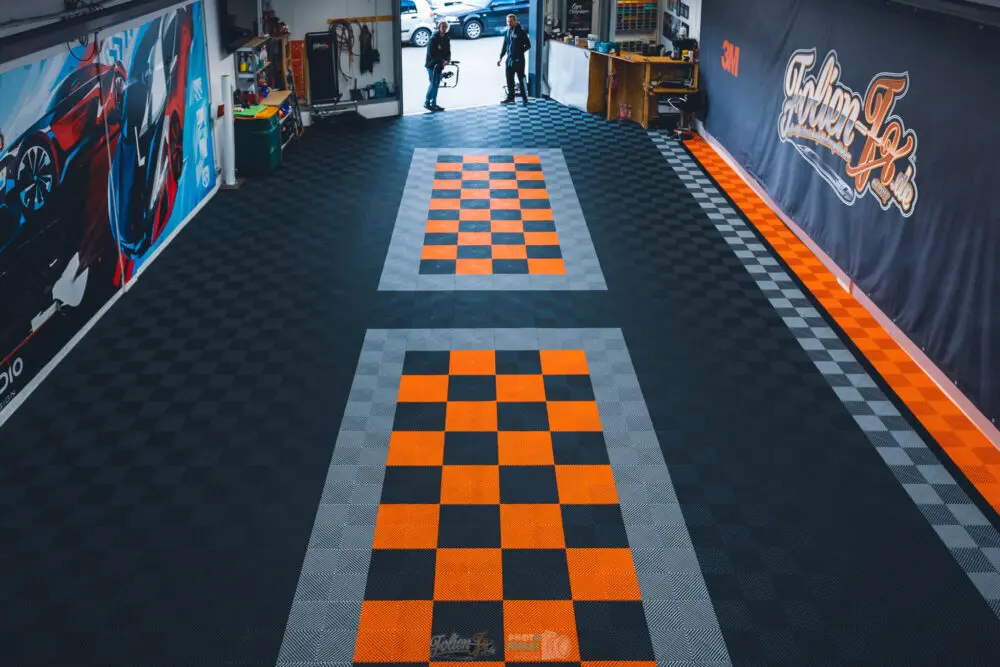

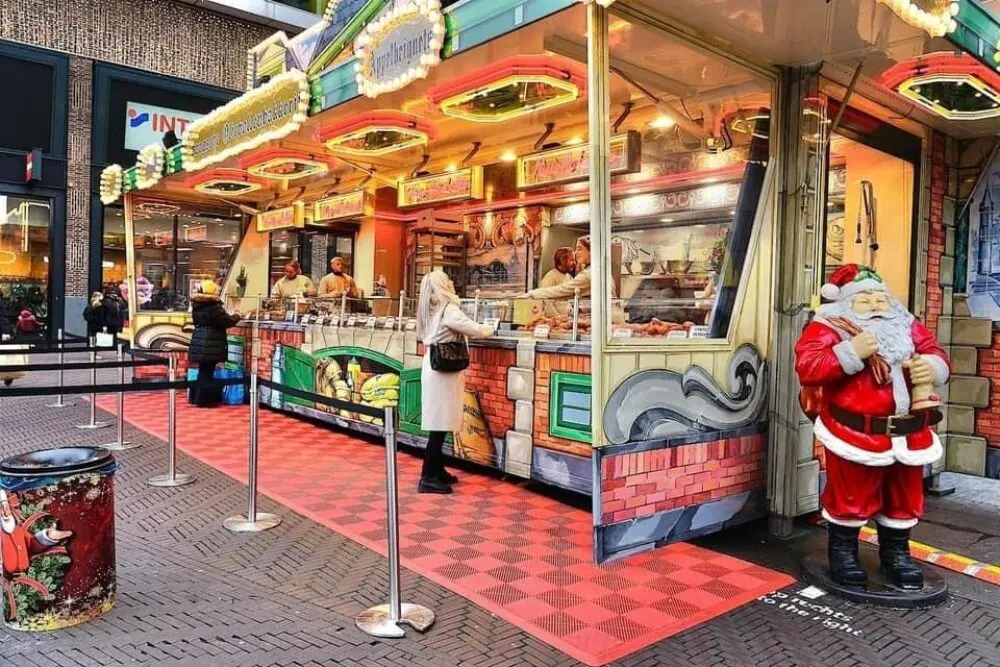

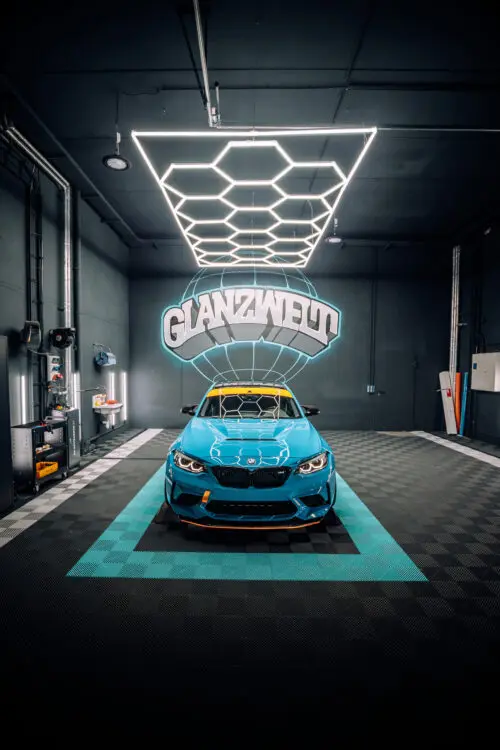

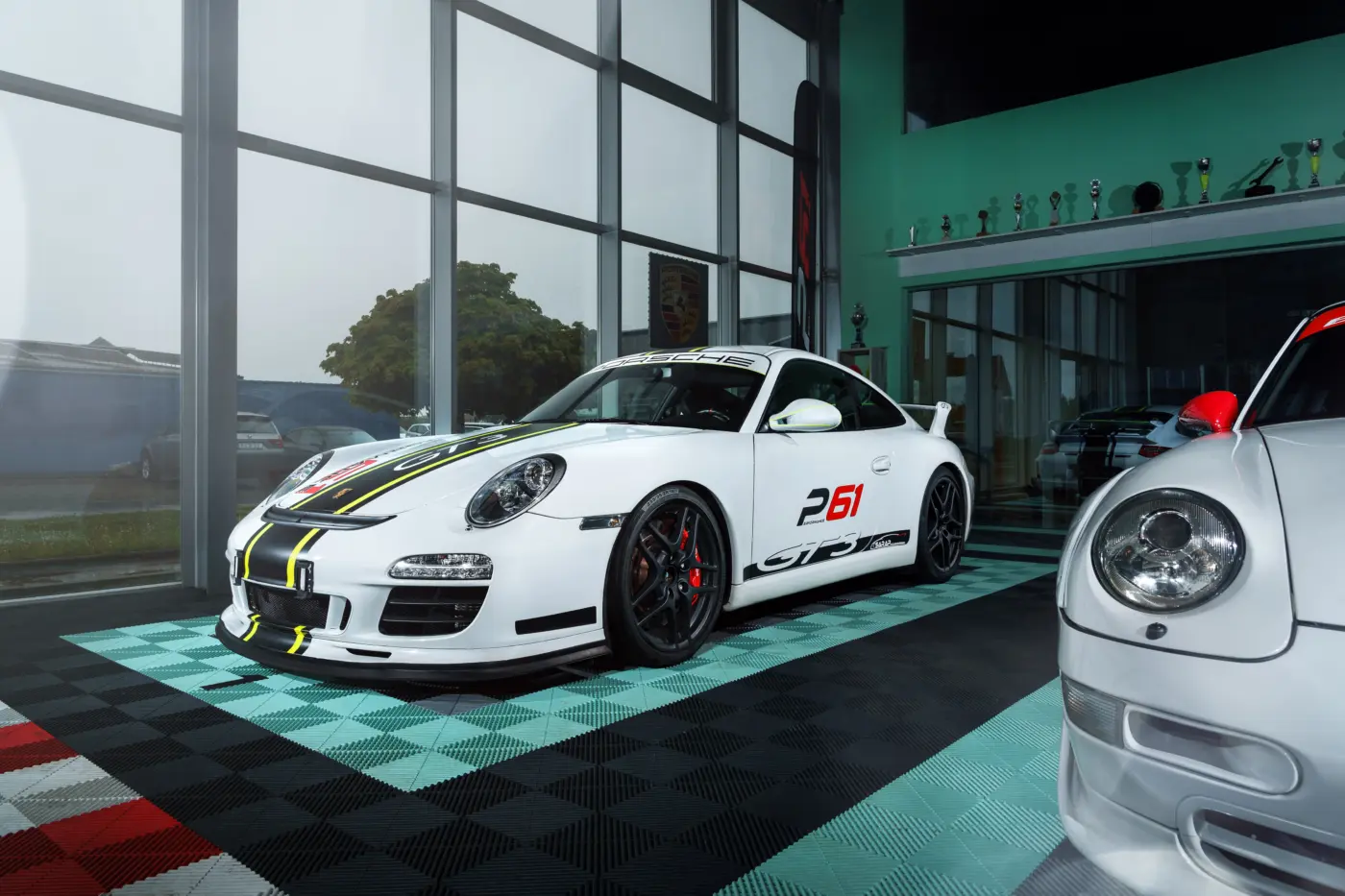

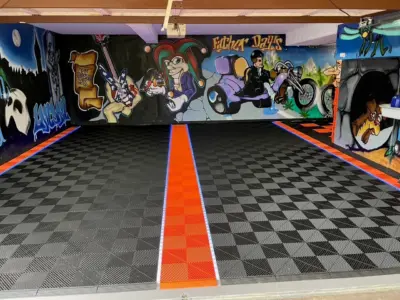

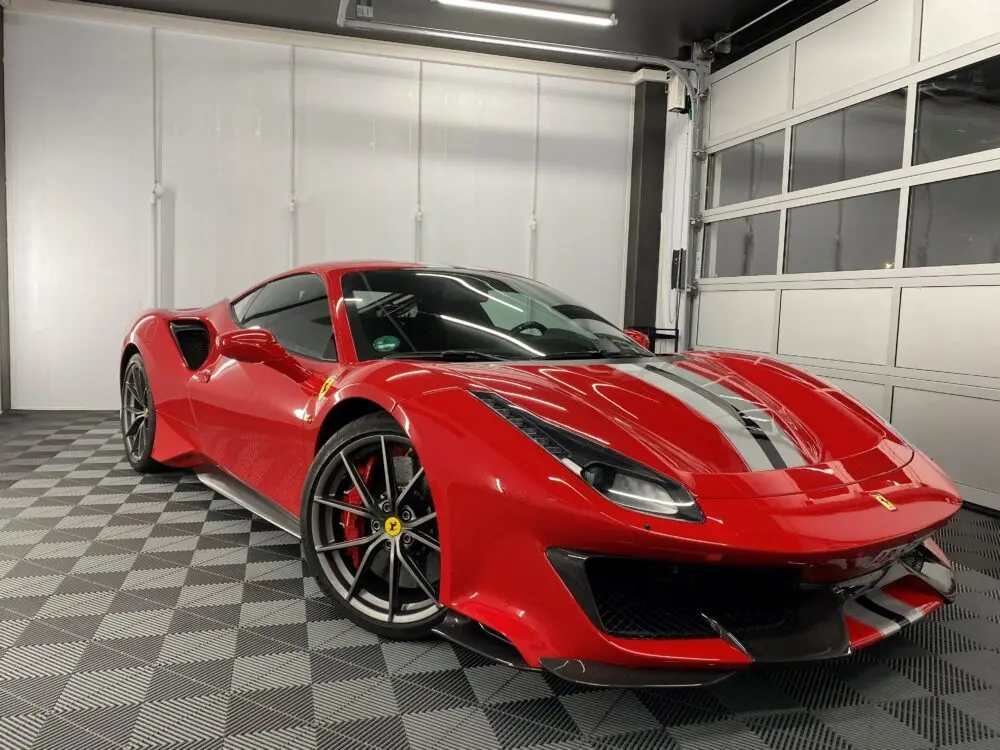

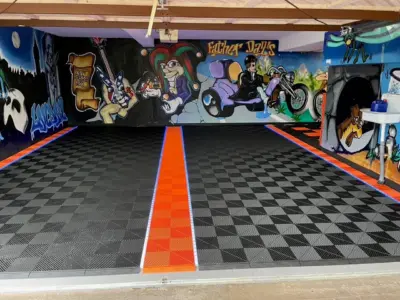

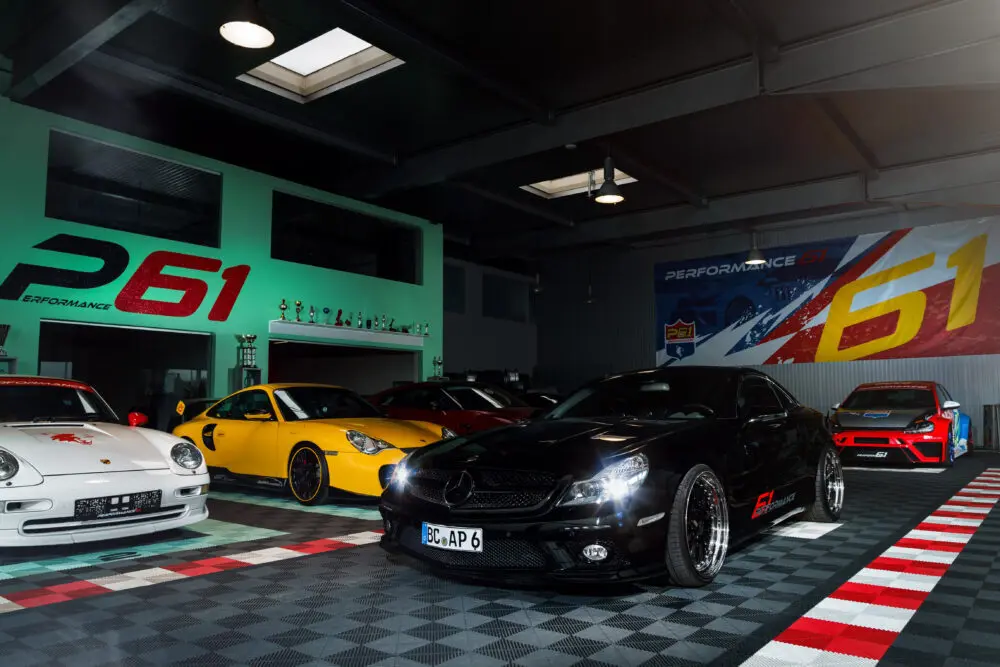

Application examples

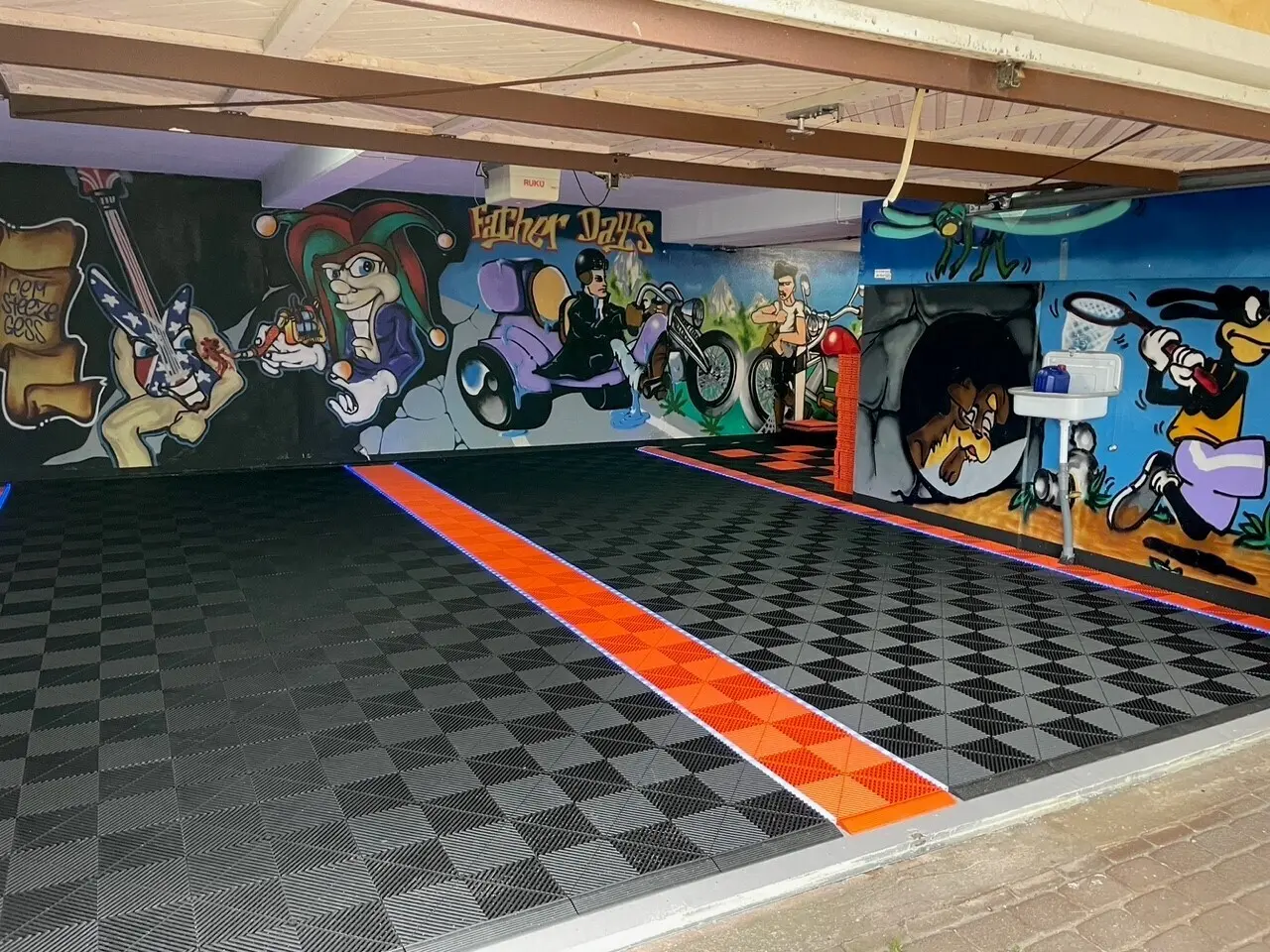

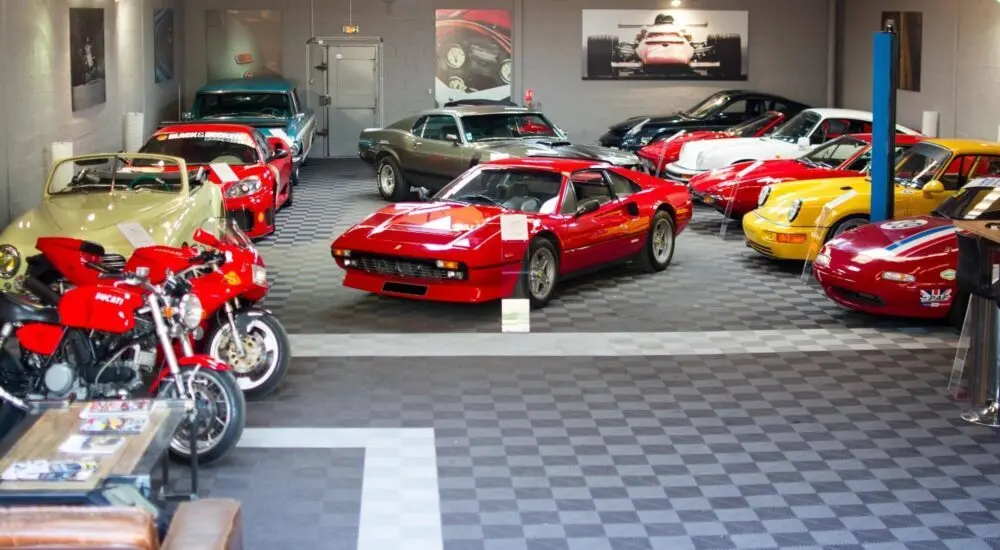

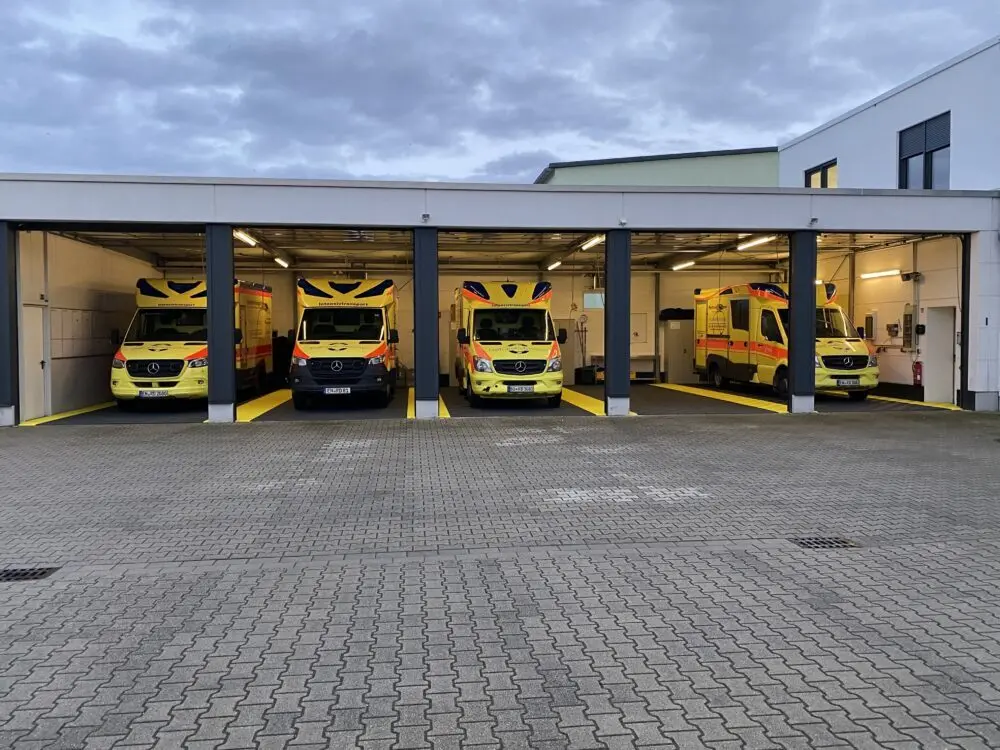

The TM Race is suitable for the following areas:

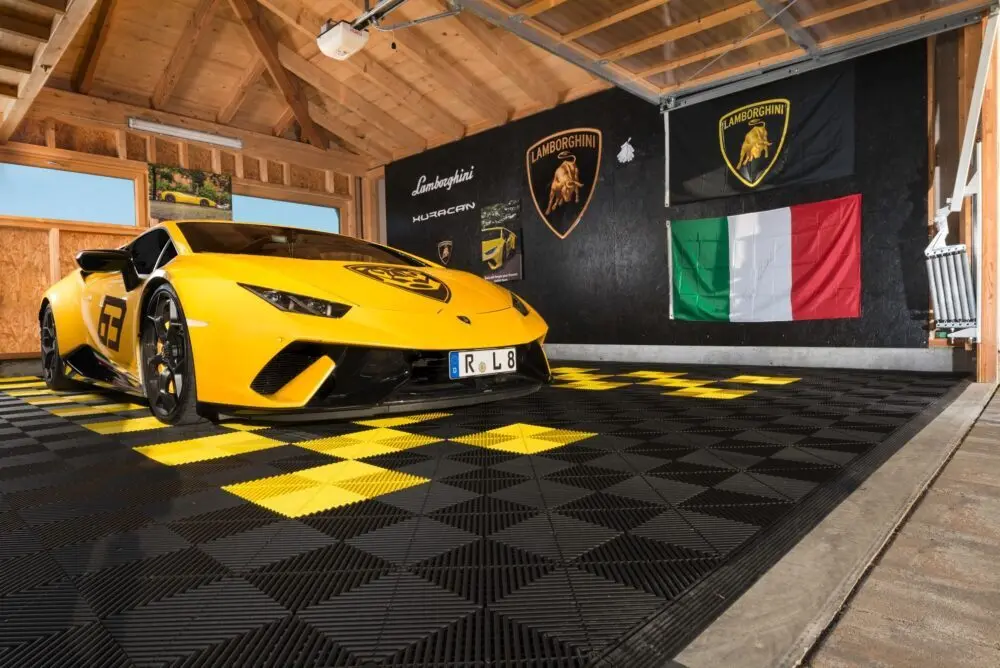

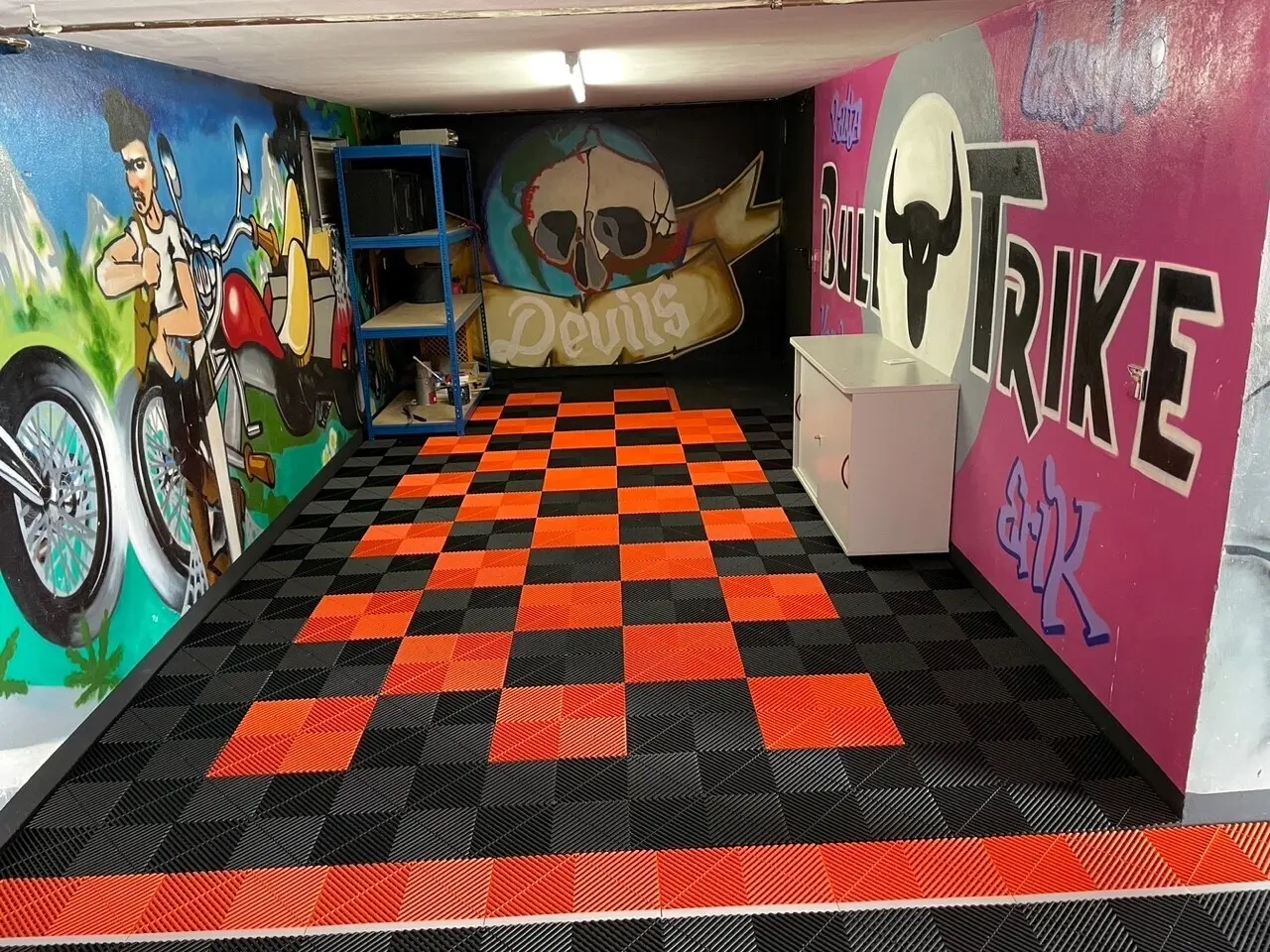

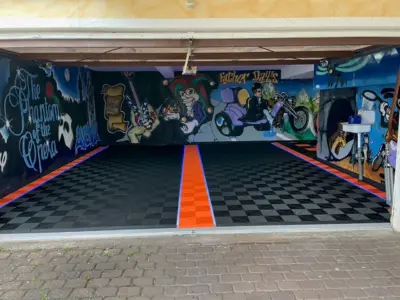

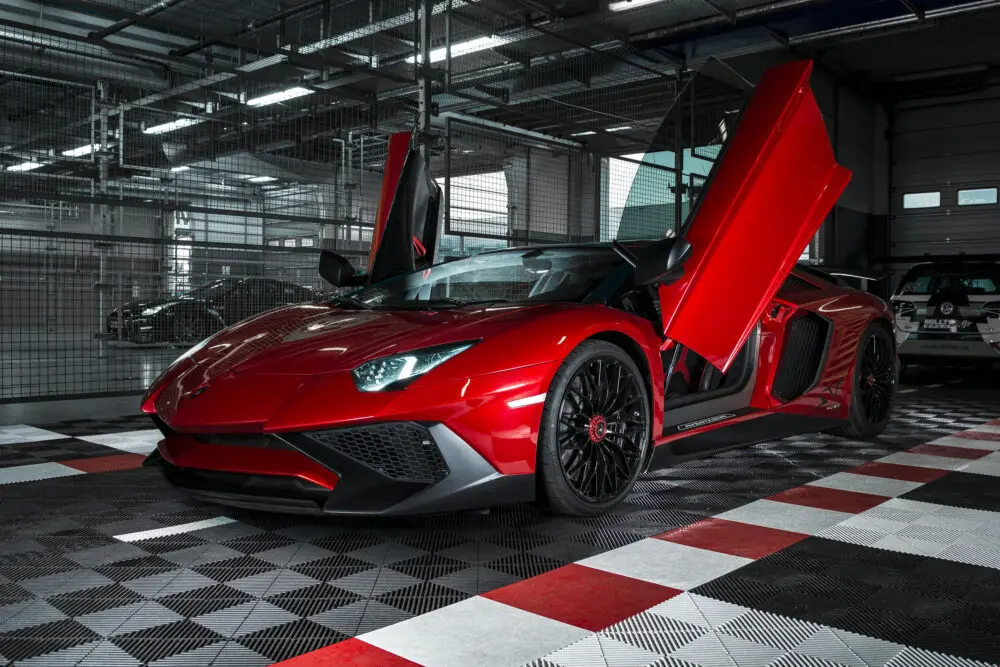

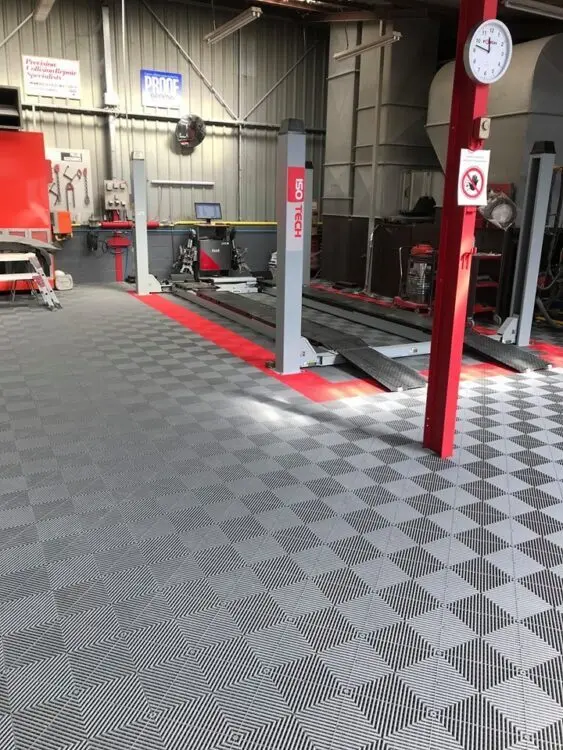

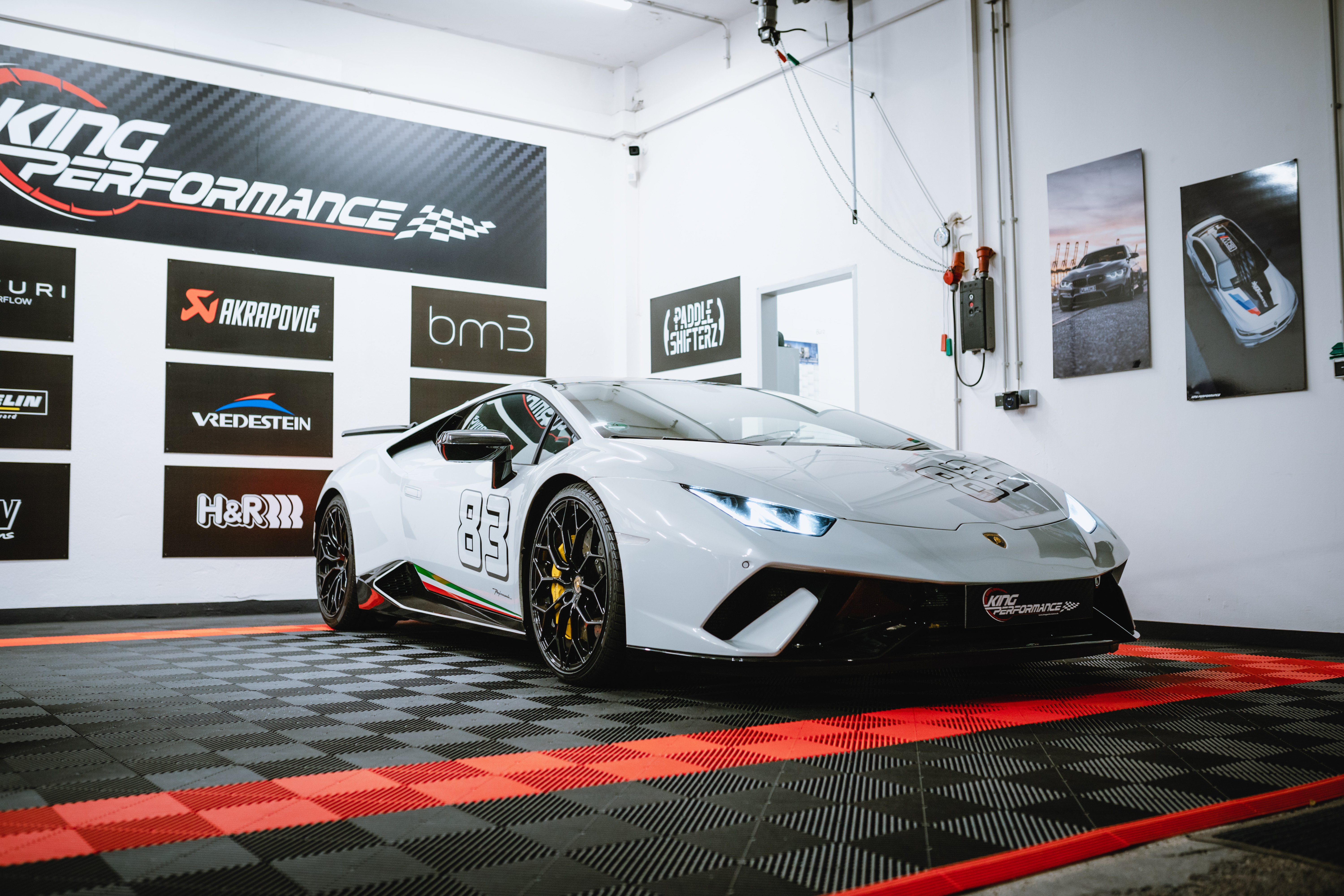

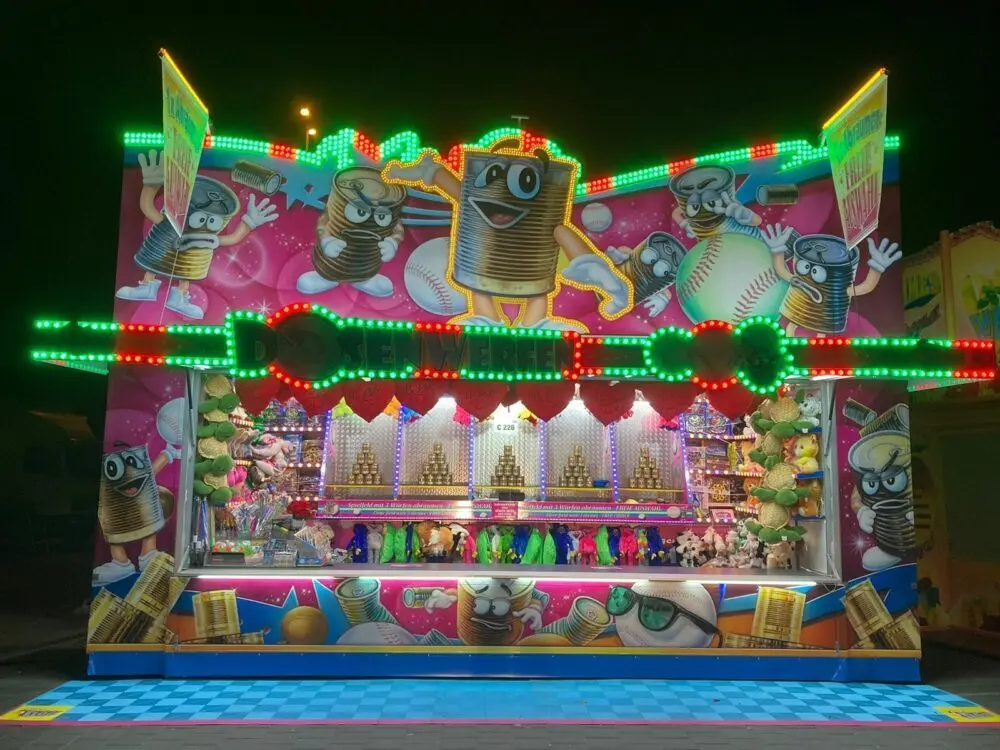

Workshops, garages, tuning areas, exhibition stands, motor sports, motor vehicle areas, presentation or advertising areas, showrooms, stores, outdoor areas, fairgrounds, tents, cellars, balconies, terraces, etc.

Data & facts

The TM Race is very robust and easy to install (click technology).

It is also very easy to maintain and clean and can be easily replaced thanks to the modular system.

The optimum material and ambient temperature is between 15 and 25°C.

Since polypropylene expands when exposed to heat, a distance from fixed components (walls, pillars, door thresholds, passages, etc.) should be planned. Our recommendation: The expansion joint should be 1% of the total of the total length and at least 3 cm in size.

Rounded surface
Special look due to 3D structure
Individual printing
Can be cut to size with jigsaw or circular saw
Resistant to acids, alkalis, bases and hydrocarbons
Guarantee: material/function 15 years, UV stability: 5 years
Dirt can fall through thanks to the open structure and liquids can dry (no puddles)
Easy cleaning with hoover and steam cleaner
Optional antistatic or flame retardant (Bfl-S1) version
Perforated bottom for approx. 80% less dirt (Race and Race Flat only)
With the improved Pro48® click system (Race only)
Made in Germany

Material	Polypropylene, 100% recyclable
Dimensions	400 x 400 mm
Weight	3,5 kg/ m²
Thickness	18 mm
Loadable	up to 30 t/ m²
Temperature resistant	-20 to 70°C
Fire protection class	Efl
Slip resistance class	R10
Package size	6 tiles ≈ 0.96 m²

Colours

White (RAL 9010) Black (RAL 9004) Dark gray (RAL 7012) Anthracite gray (RAL 7016) Reflex blue (Pantone Reflex Blue) White aluminum (RAL 9006) Gray aluminum (RAL 9007) Yellow (RAL 1018) Orange (Pantone 021) Red (RAL 3020) Yellow-green (RAL 6018) Green (RAL 6002) Light gray (Pantone 2707) Blue (RAL 5019) Brown (RAL 8011) Ivory (RAL 1015) Gray-brown (RAL 8019) Mint (Pantone 331) Lime (Pantone 375) Turquoise (Pantone 3262) Light blue (Pantone 297) Pink (Pantone 806) Violet (Pantone 2592) Dark blue (Pantone 295) Ultramarine blue (RAL 5002) Gold (Pantone 871)
