TM Race Flat

From €70.00

The TM Race Flat click tiles have a flattened surface and are therefore perfect for the workshop, or generally when there is a lot of working and kneeling on the floor.

  • Surface flattened
  • Large variety of colours
  • Quick installation (50 m² in 30 min)
Square metres:
x
=
m²

Price: €70.00 incl. VAT
(Net: €58.82)

plus shipping costs

Delivery time: approx. 2–3 weeks

Quantities under 50 m² can only be ordered online.
TM Race Flat Accessories Application examples Data & facts Downloads Customers also bought

TM Race Flat

for the workshop, garage, showroom, trade fair or outdoor area

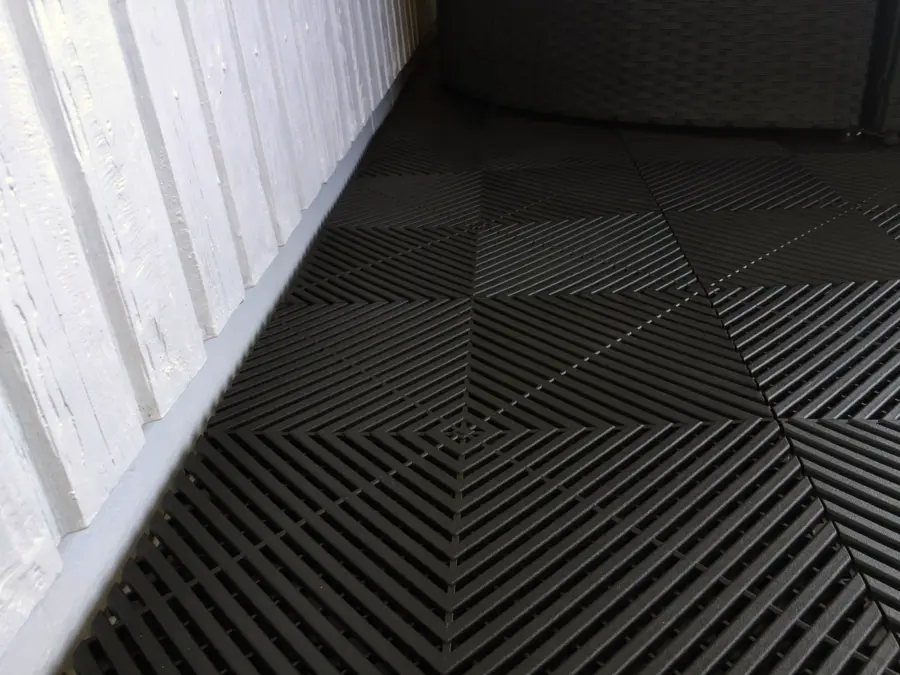

TM Race Flat – workshops

The TM Race Flat click tiles are specially designed for the automotive sector and are child's play to handle. In just a few simple steps, you can create impressive, highly resilient and durable presentation surfaces for PS dreams on four or two wheels. The many possible combinations and extras leave nothing to be desired.

Various surface designs and a wide range of colours leave nothing to be desired. Because the panels can be combined with each other both in design and colour. In addition, numerous special colours and individual printing of single or multiple tiles are possible.

The click tiles are simply laid out and joined together using the click system. Within minutes, racing boxes, garages and exhibition stands become eye-catchers. Complex shapes are easily cut with a jigsaw, otherwise no further tools are necessary. The bevelled edge and corner pieces round off the overall appearance and serve as driveways. The floor is just as quickly dismantled and ready for transport - either as individual tiles or in handy sections of 80 × 120 cm (suitable for Euro pallets).

The click tiles are suitable for all work around vehicles. Loads of up to 30 tonnes per square metre are no problem. The material is resistant to almost all organic solvents, acids and alkalis and is optionally available in a flame-retardant or antistatic version. The tiles are designed for an extremely long service life. This is underlined by the functional guarantee of 15 years.

Accessories

Matching accessories

    Application examples

    The TM Race Flat is suitable for the following areas:

    Workshops, garages, tuning areas, exhibition stands, motor sports, motor vehicle areas, presentation or advertising areas, showrooms, stores, outdoor areas, fairgrounds, tents, cellars, balconies, terraces, etc.

    Data & facts

    The TM Race Flat is very robust and easy to install (click technology).

    It is also very easy to maintain and clean and can be easily replaced thanks to the modular system.

    The optimum material and ambient temperature is between 15 and 25°C.

    Since polypropylene expands when exposed to heat, a distance from fixed components (walls, pillars, door thresholds, passages, etc.) should be planned. Our recommendation: The expansion joint should be 1% of the total of the total length and at least 3 cm in size.

    • Flattened surface
    • Special look due to 3D structure
    • Individual printing
    • Can be cut to size with jigsaw or circular saw
    • Resistant to acids, alkalis, bases and hydrocarbons
    • Guarantee: material/function 15 years, UV stability: 5 years
    • Dirt can fall through thanks to the open structure and liquids can dry (no puddles)
    • Easy cleaning with hoover and steam cleaner
    • Optional antistatic or flame retardant (Bfl-S1) version
    • Perforated bottom for approx. 80% less dirt (Race and Race Flat only)
    • Made in Germany
    Material Polypropylene, 100% recyclable
    Dimensions 400 x 400 mm
    Weight 3,5 kg/ m²
    Thickness 18 mm
    Loadable up to 30 t/ m²
    Temperature resistant -20 to 70°C
    Fire protection class Efl
    Slip resistance class R10
    Package size 6 tiles ≈ 0.96 m²

    Colours

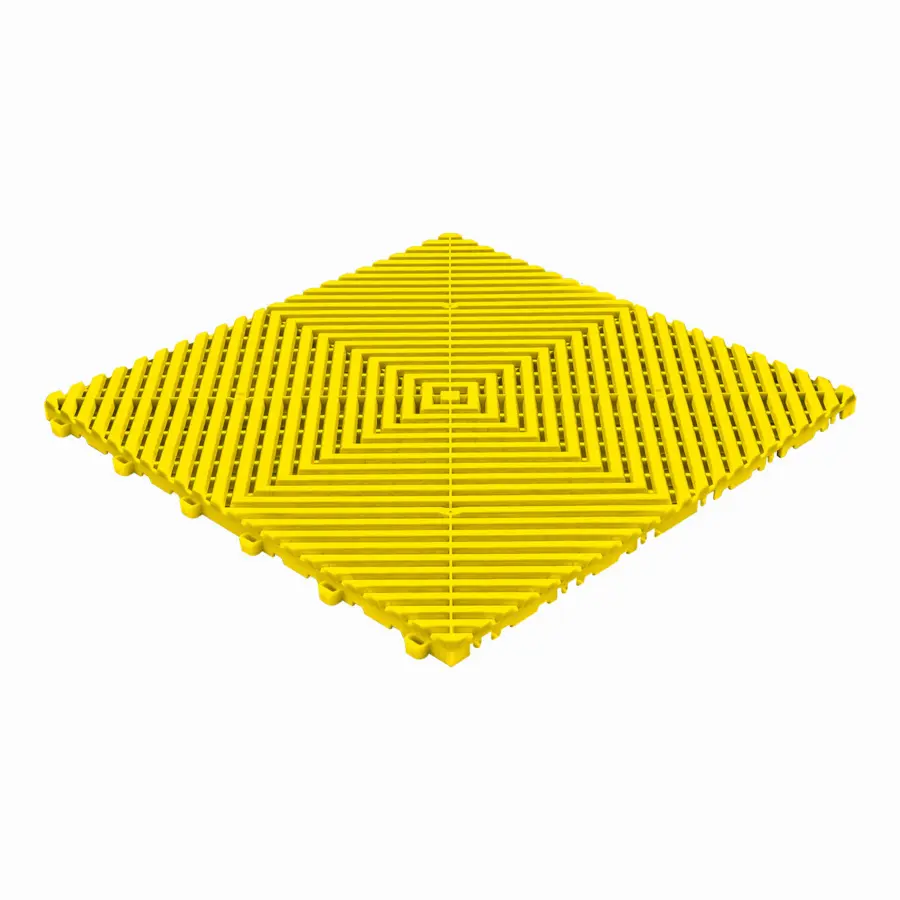

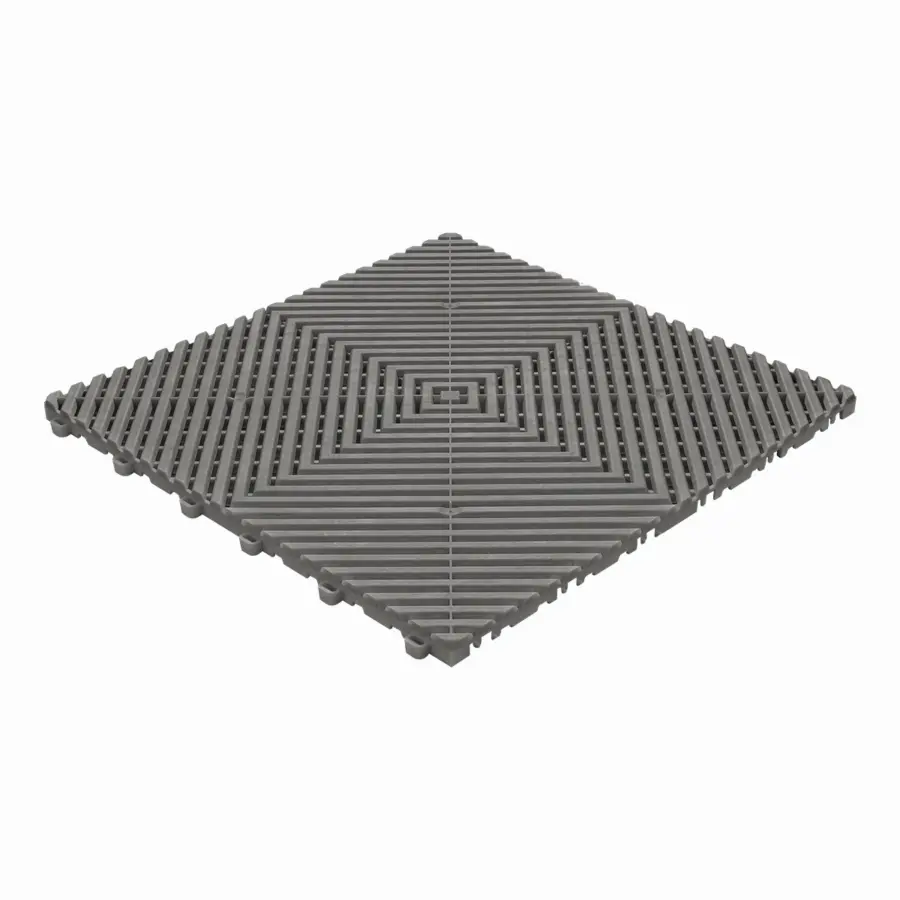

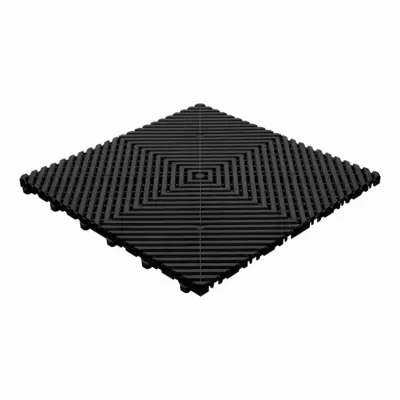

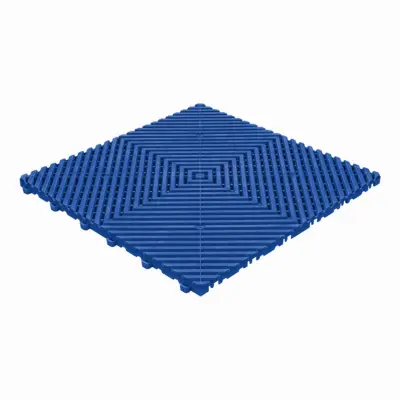

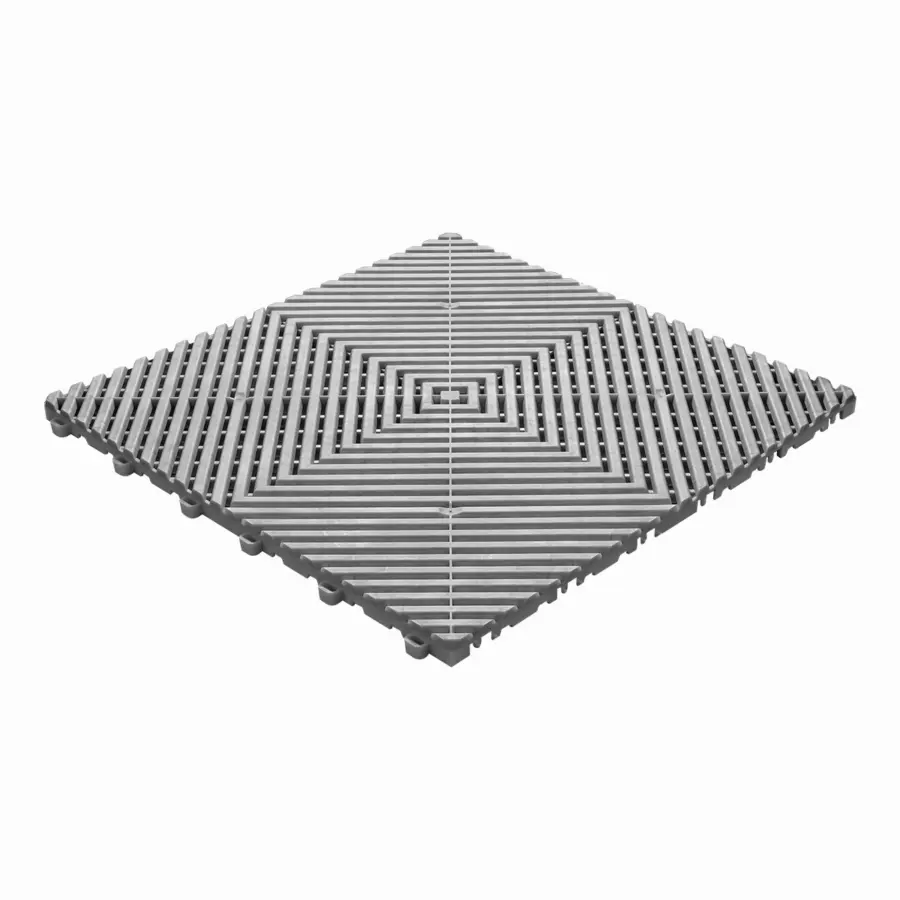

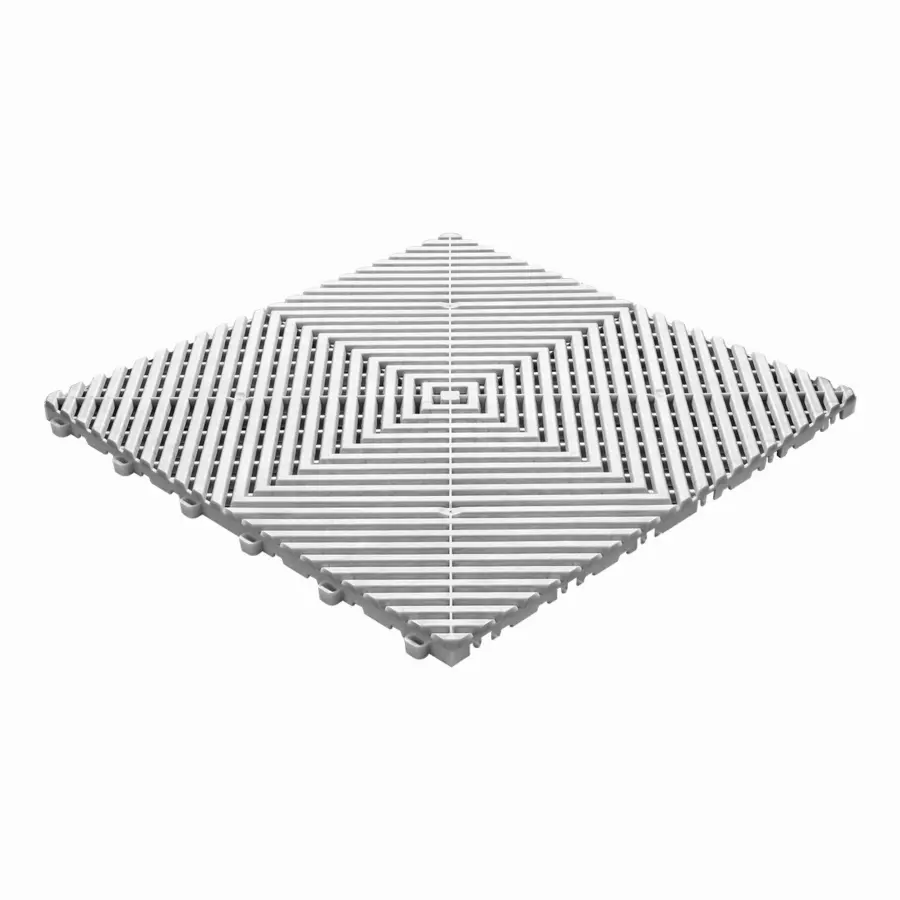

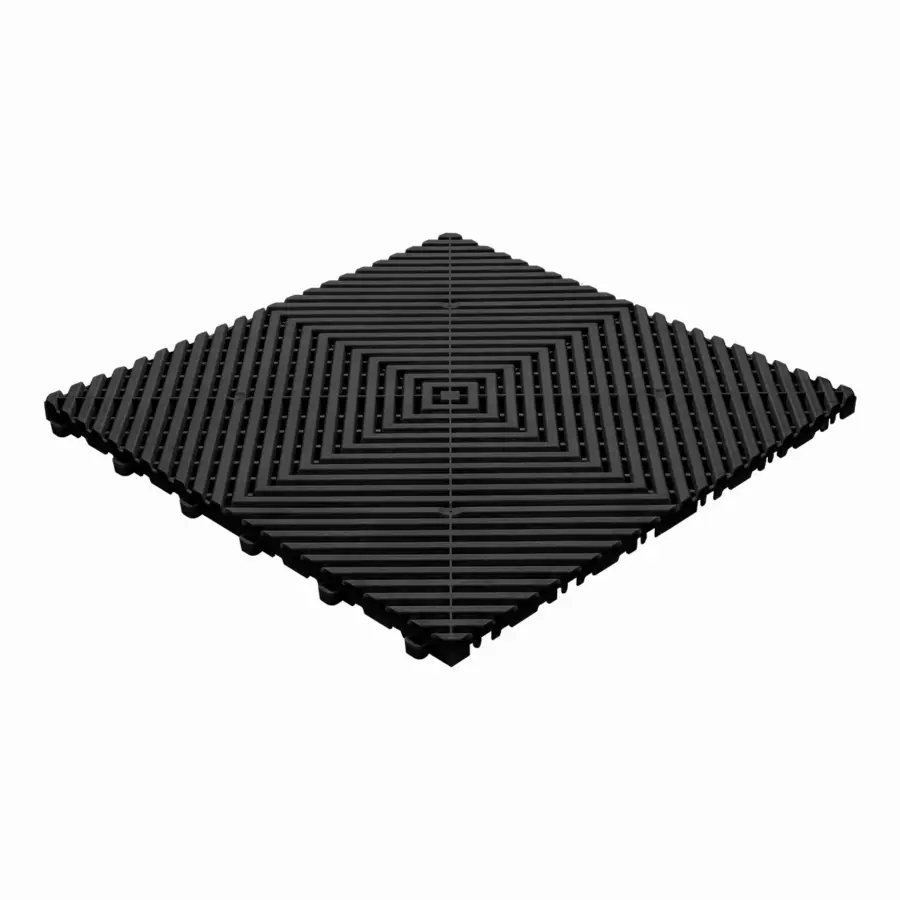

    White (RAL 9010) Black (RAL 9004) Dark gray (RAL 7012) Reflex blue (Pantone Reflex Blue) White aluminum (RAL 9006) Gray aluminum (RAL 9007) Yellow (RAL 1018) Red (RAL 3020) Orange (Pantone 021)
