TM Fitness Elite

TM Fitness Elite – Trade & commerce

The Fitness Elite training floor is a precisely calibrated indoor flooring made of PU-bonded rubber granules. Its compact material structure combines high durability with a particularly uniform, nearly seamless appearance. This makes the floor suitable for long-term use in fitness centers, functional training areas, CrossFit boxes, and high-end home gyms.

Precisely Calibrated and Dimensionally Stable

During production, panels are first manufactured in a larger raw format. After a sufficiently long cooling and curing period, these are cut precisely to the intended final dimensions. This calibration ensures very tight dimensional tolerances, precise edges, and high dimensional stability. As a result, the individual panels can be joined together with exceptional precision, creating a seamless appearance once installed.

Uniform appearance with barely visible joints

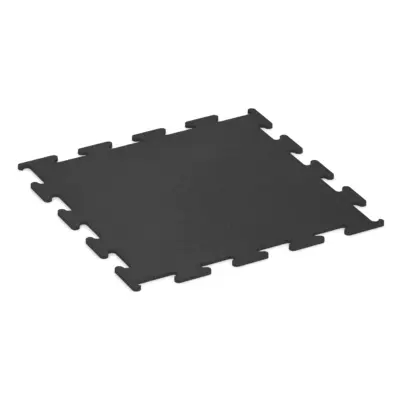

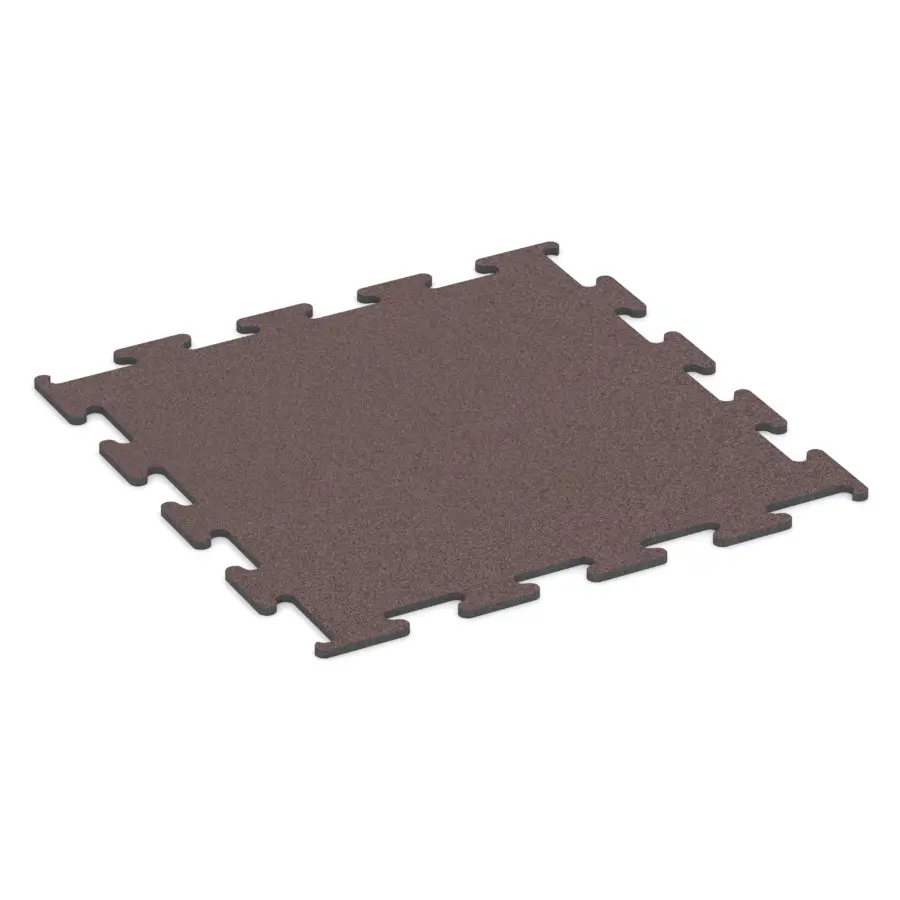

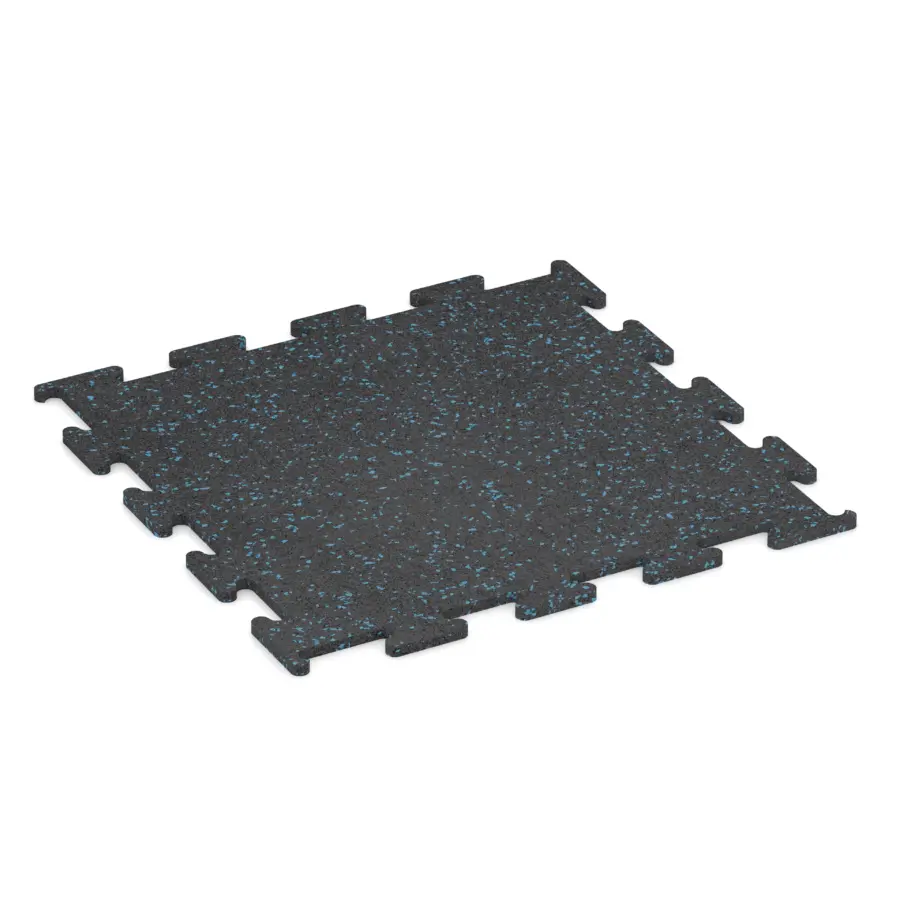

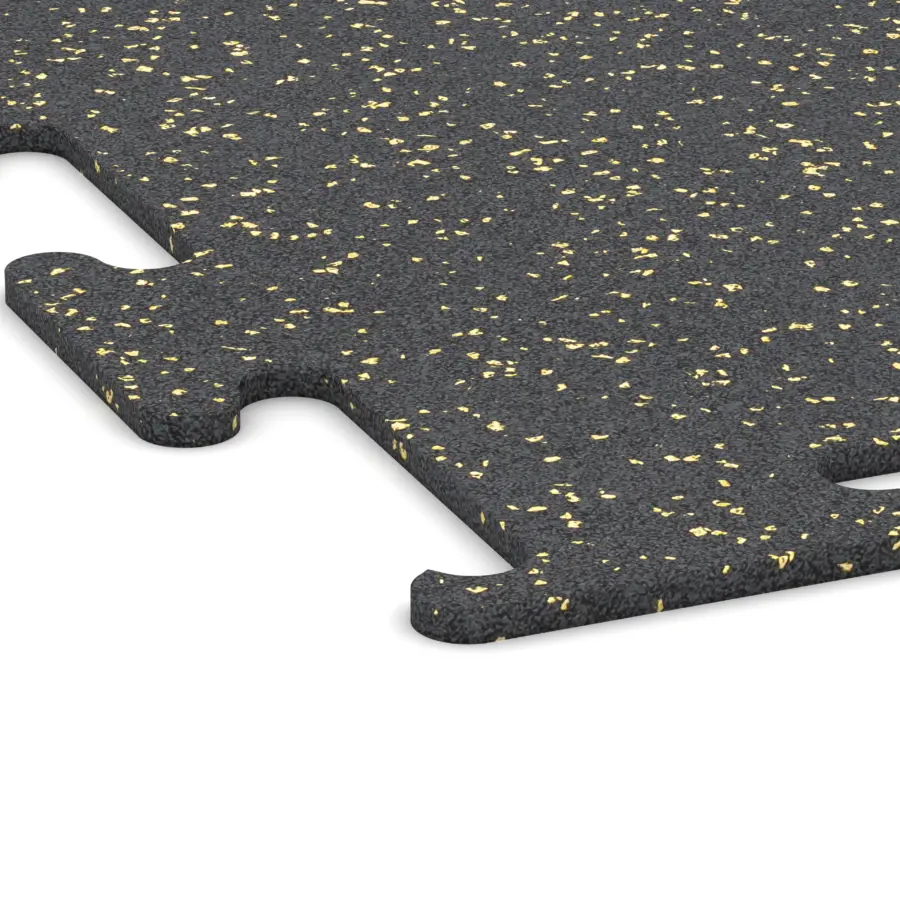

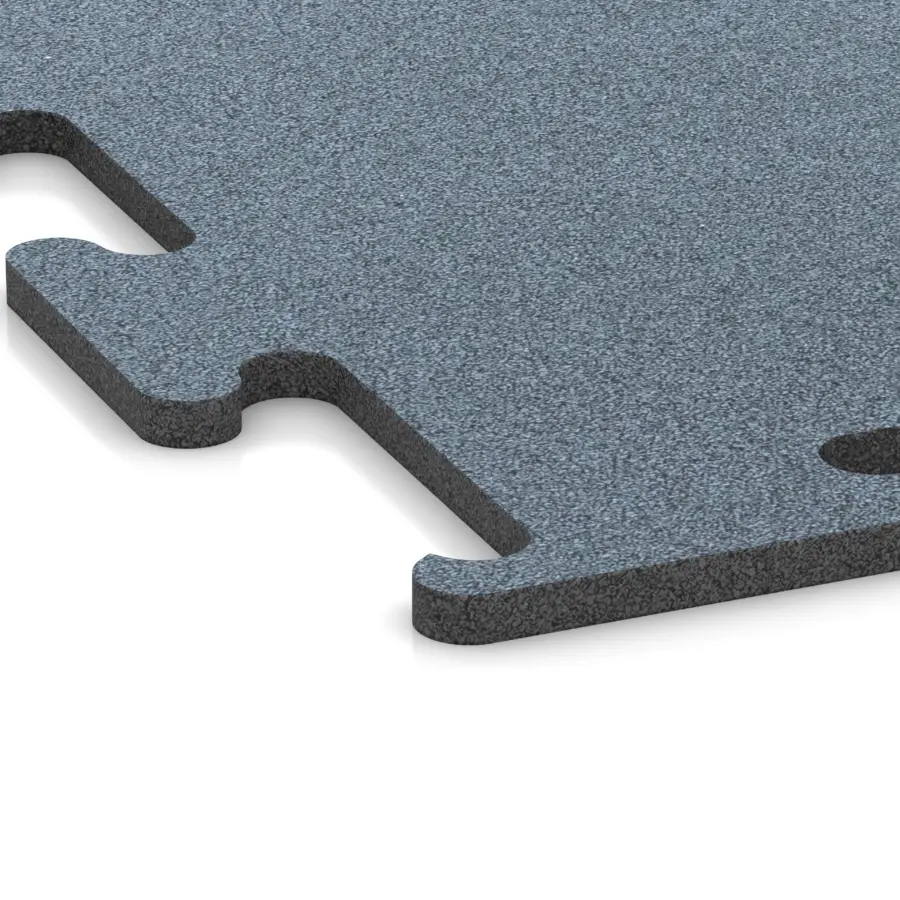

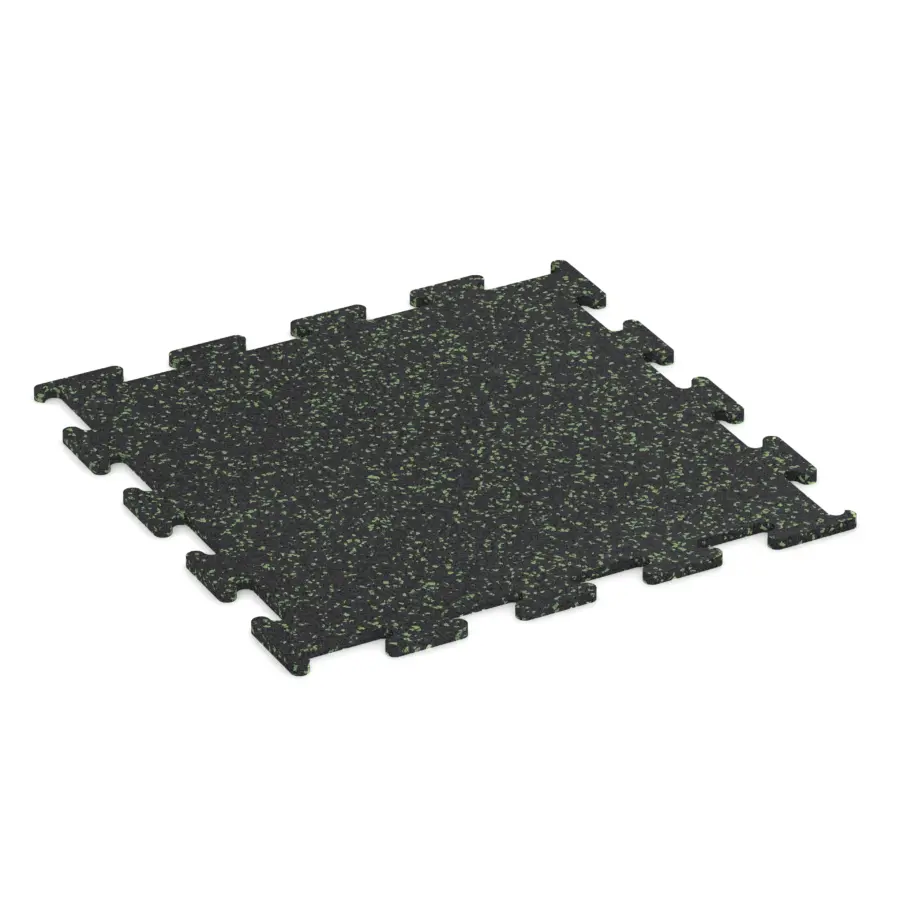

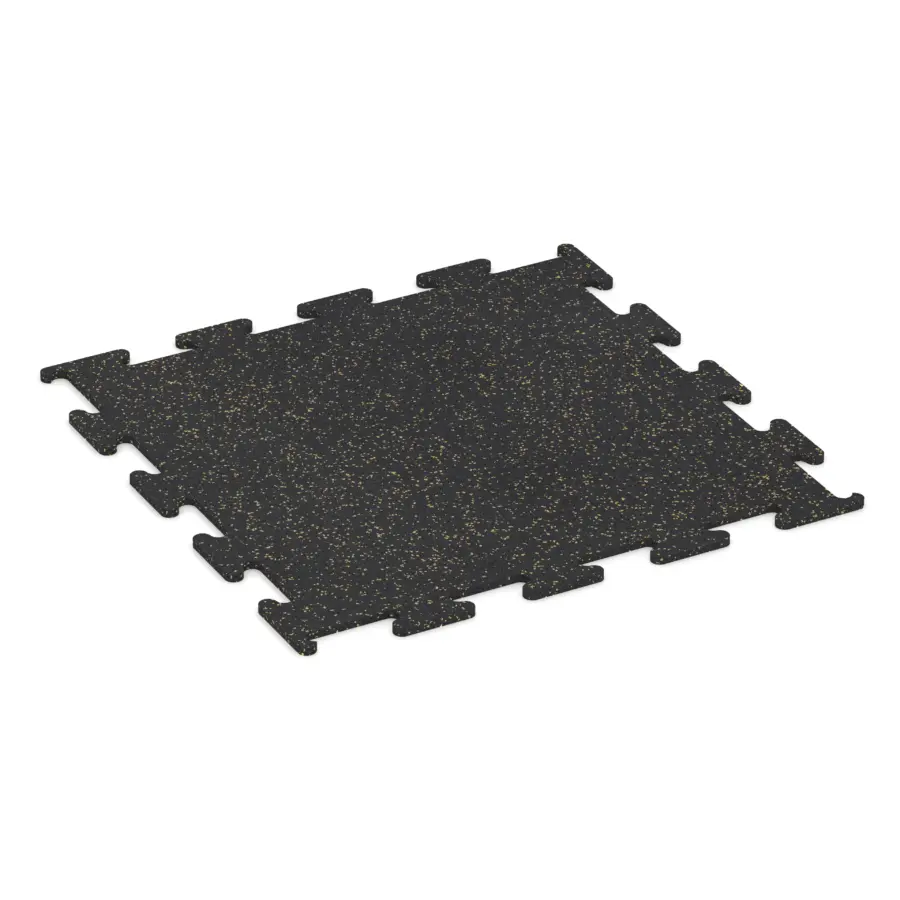

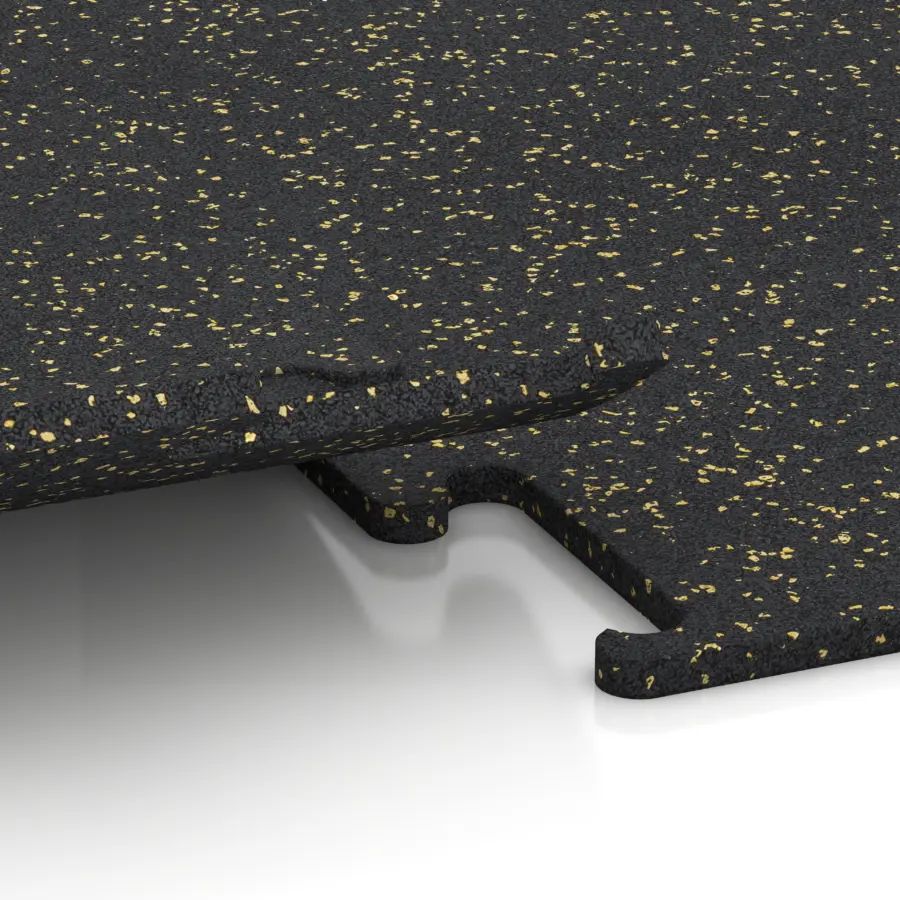

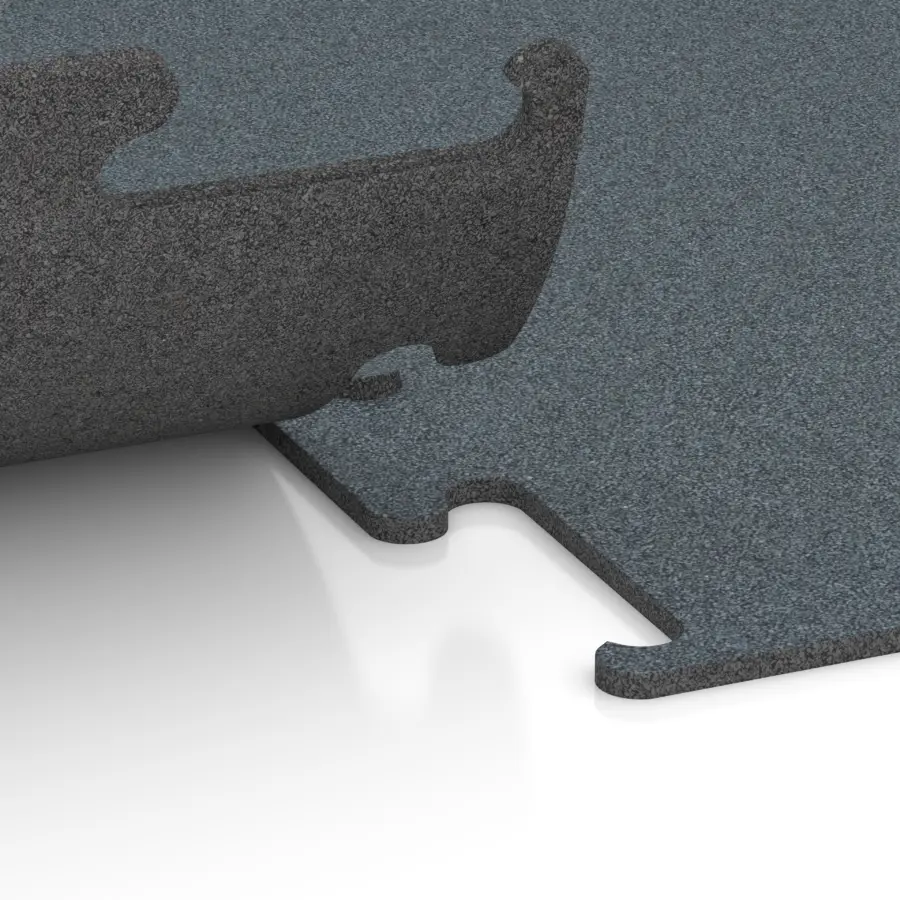

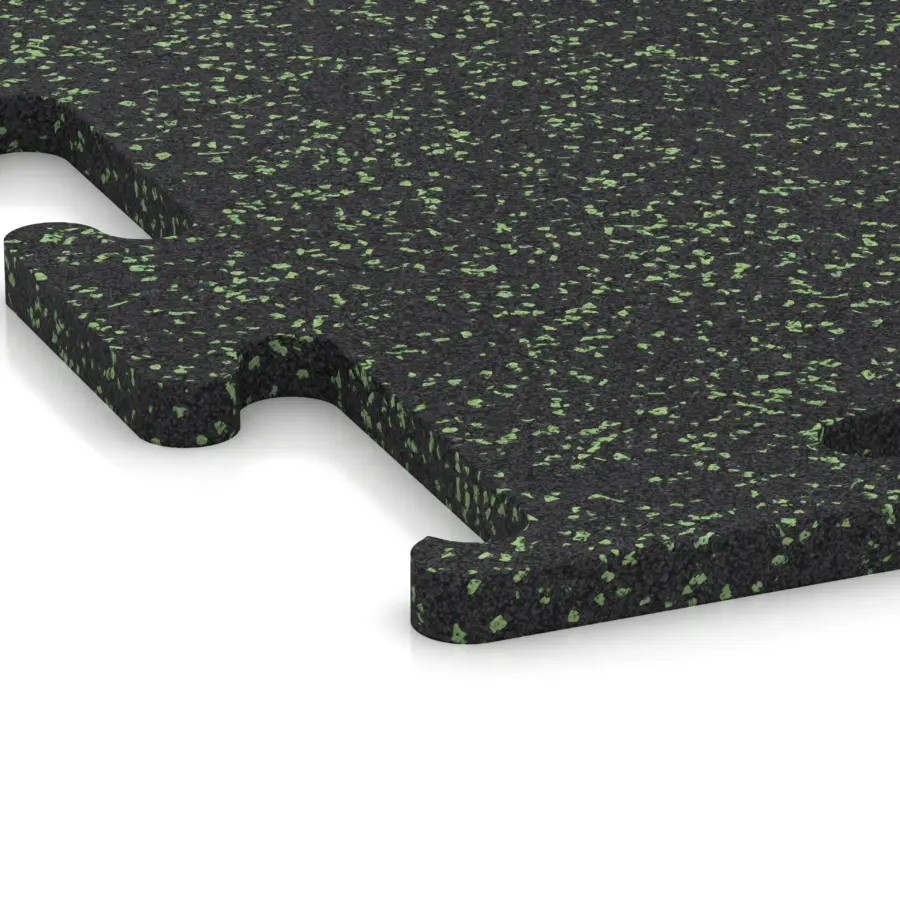

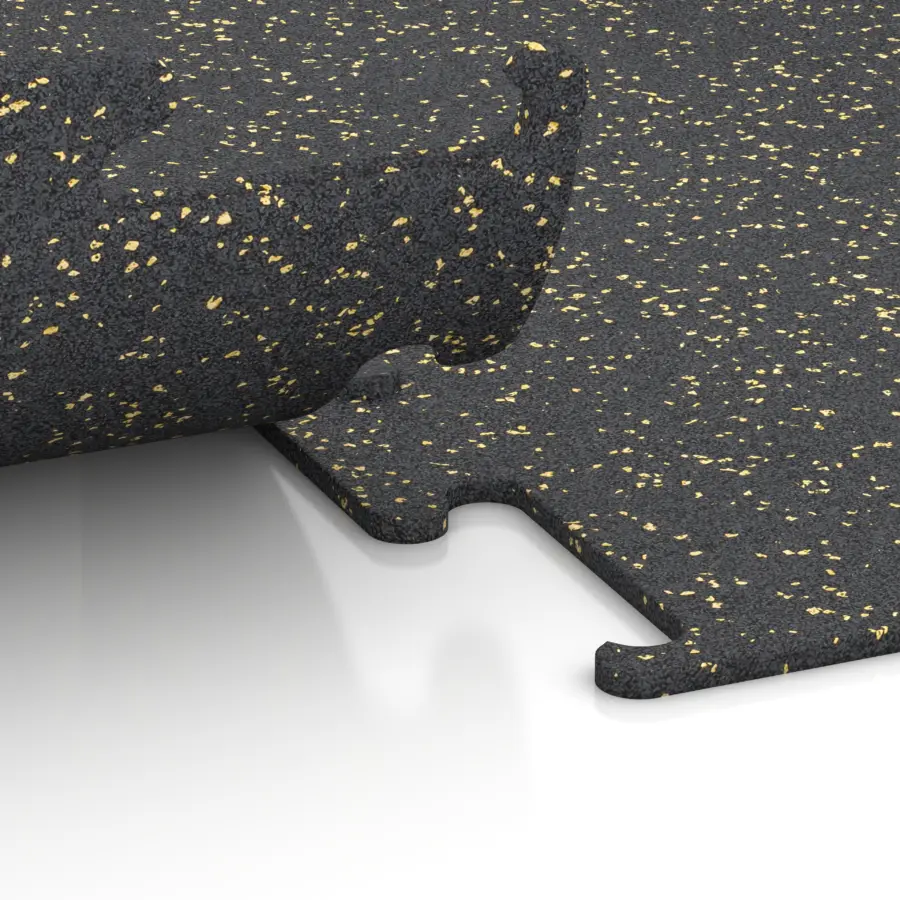

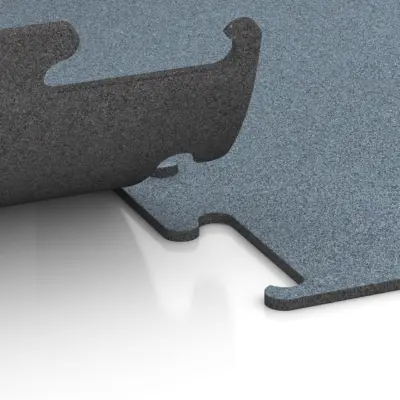

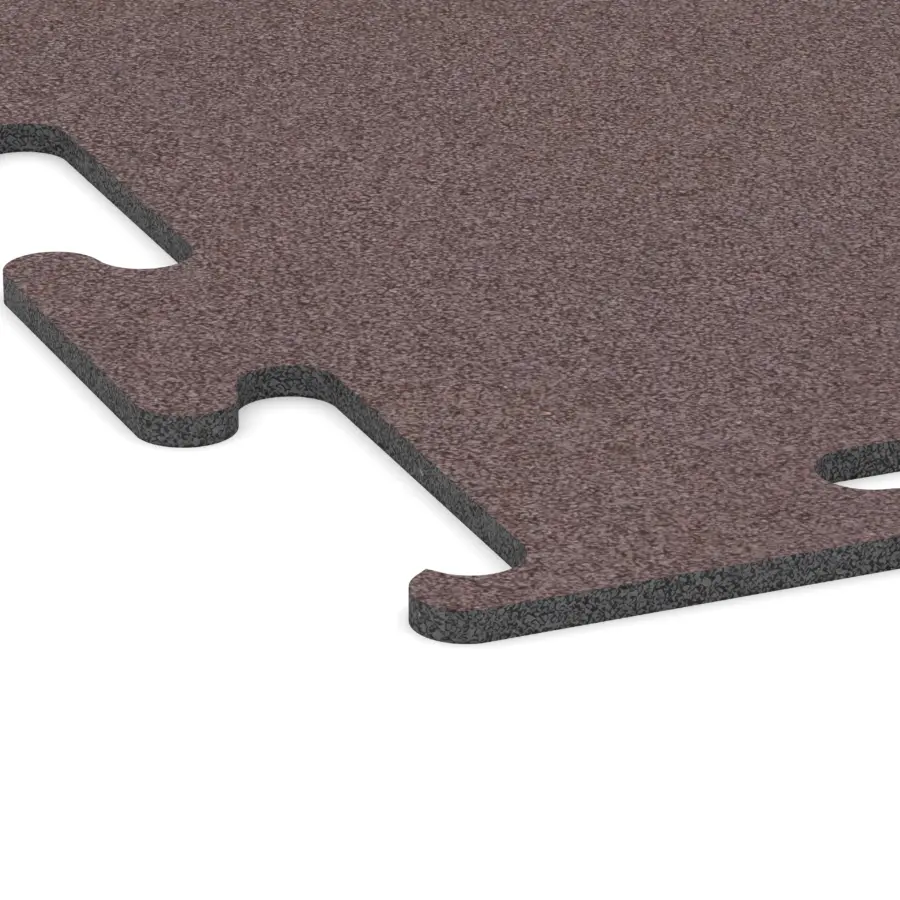

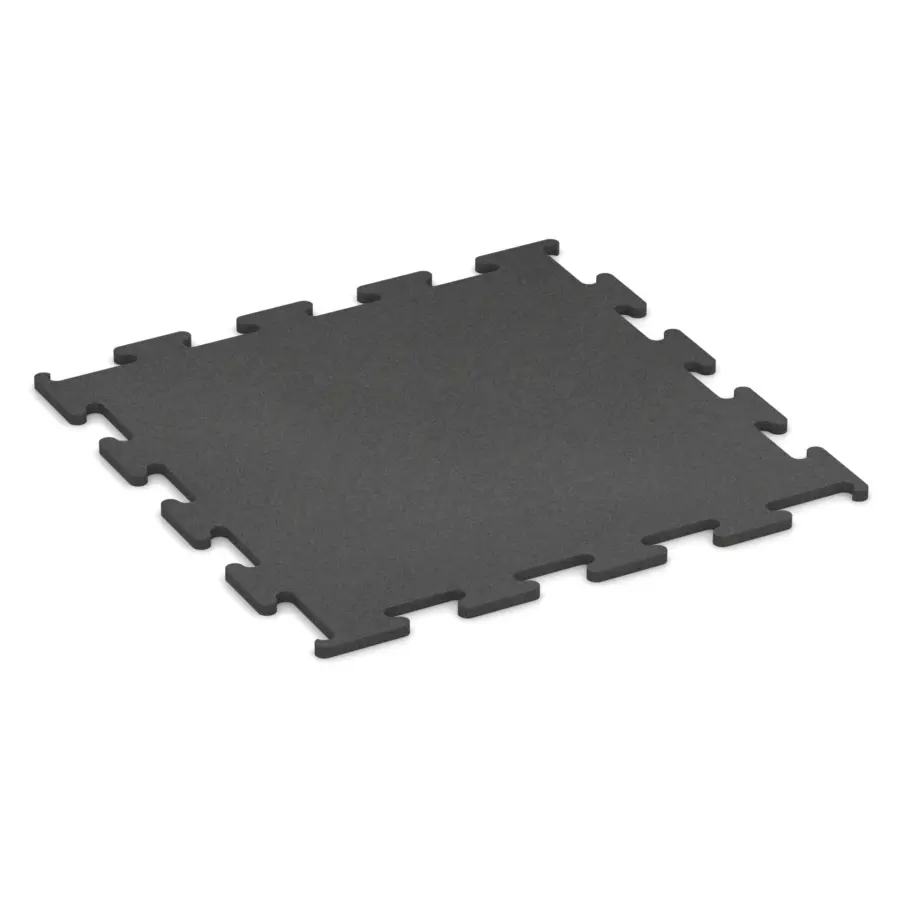

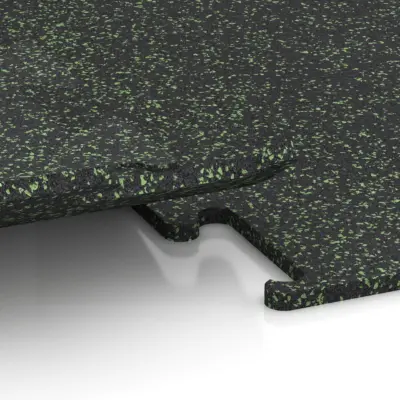

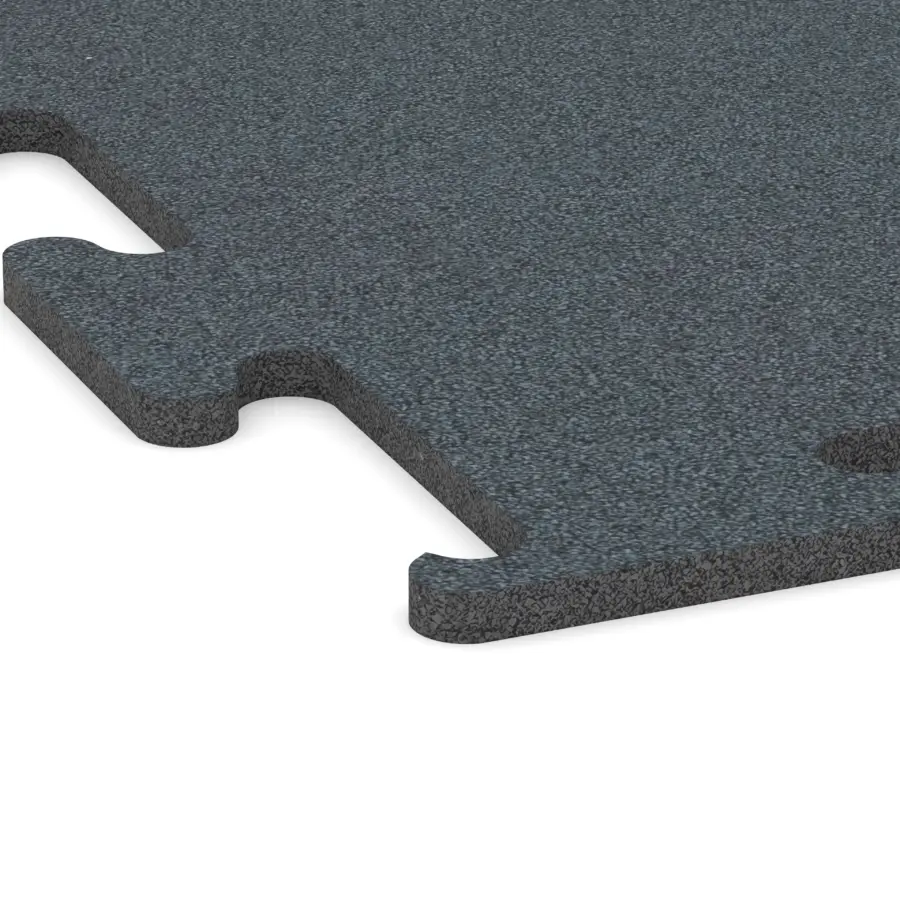

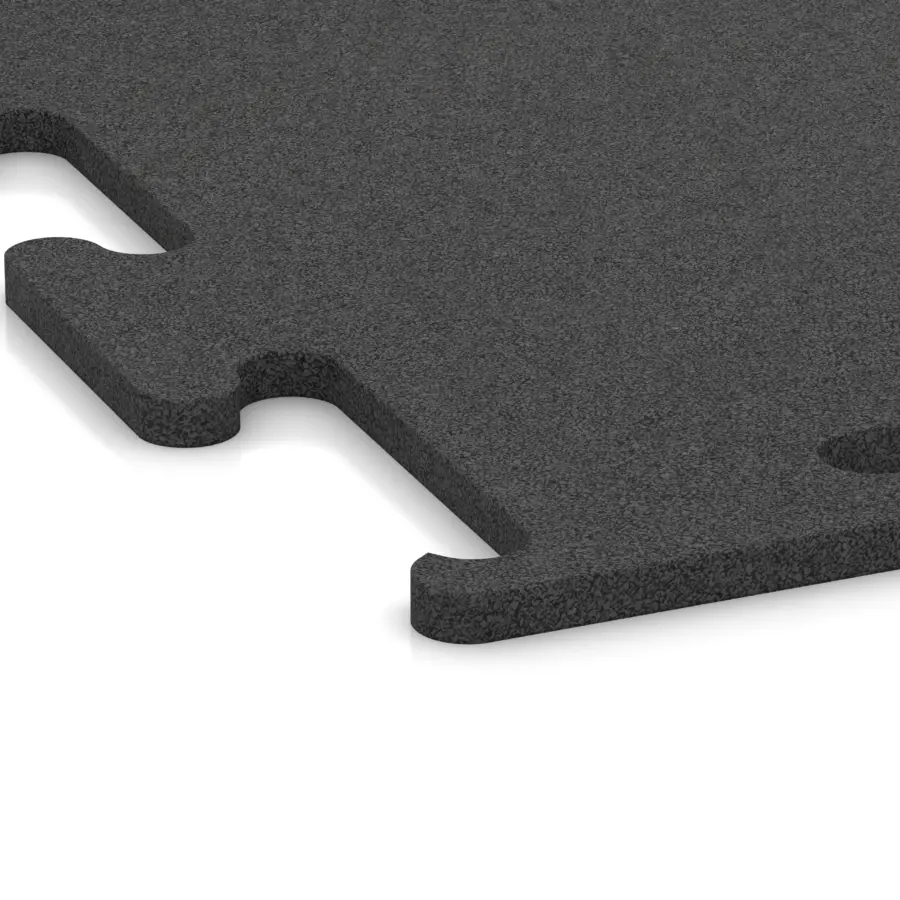

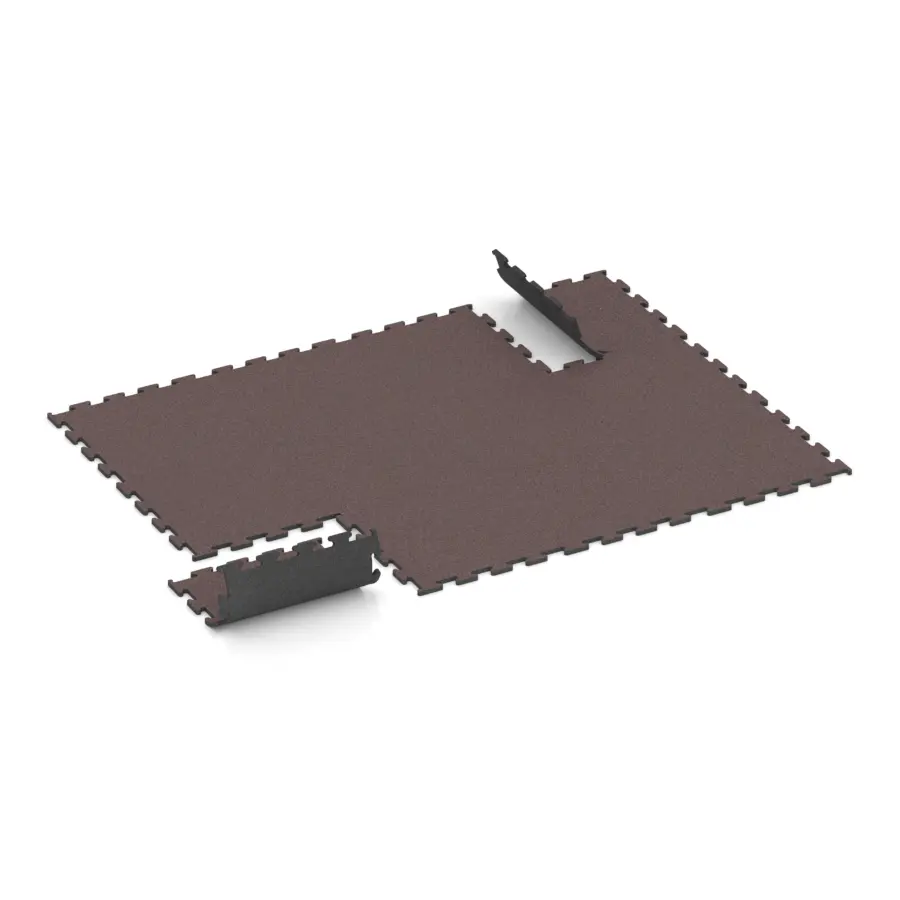

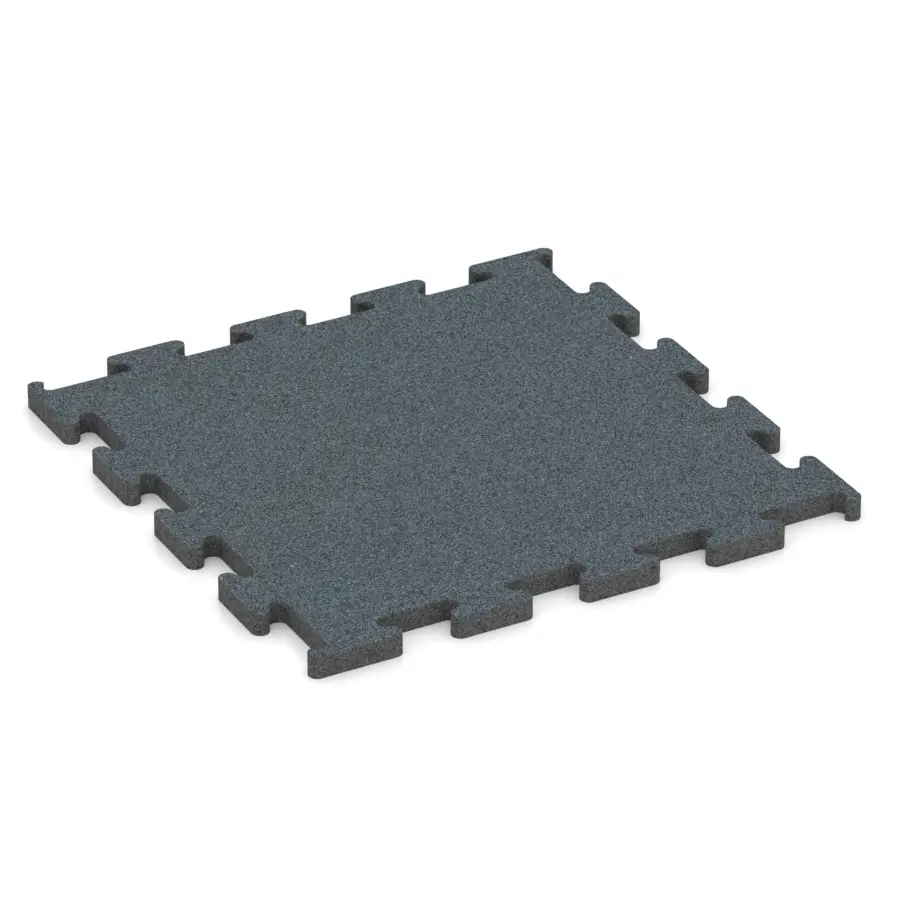

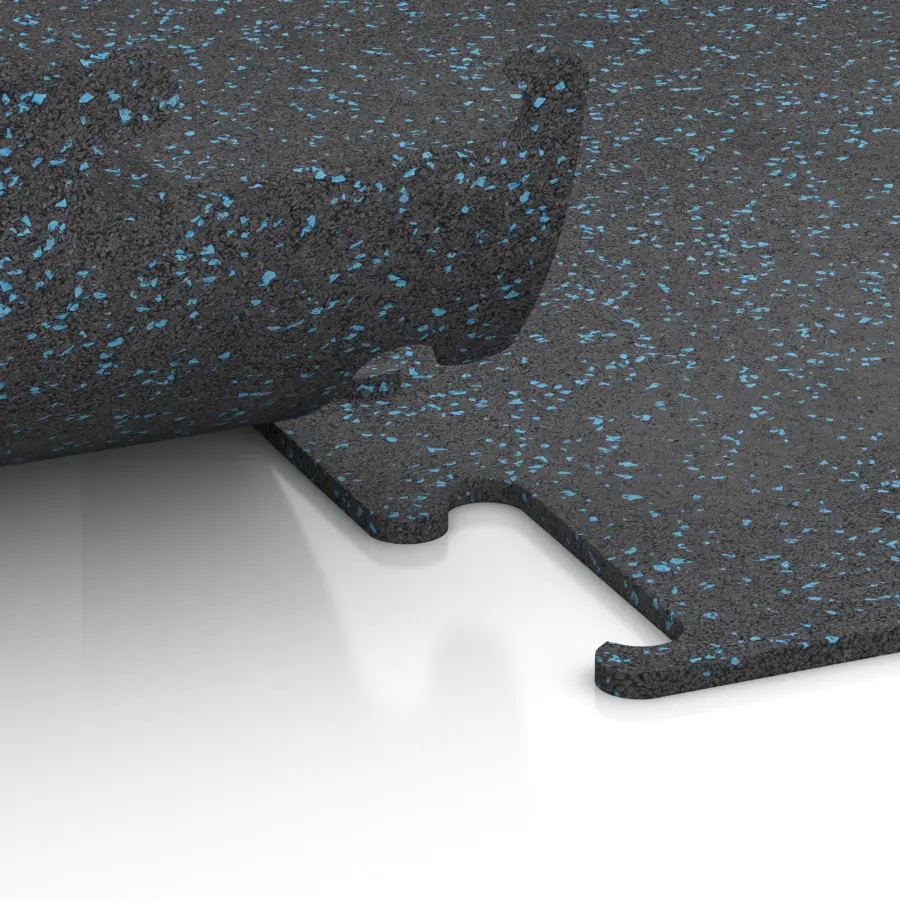

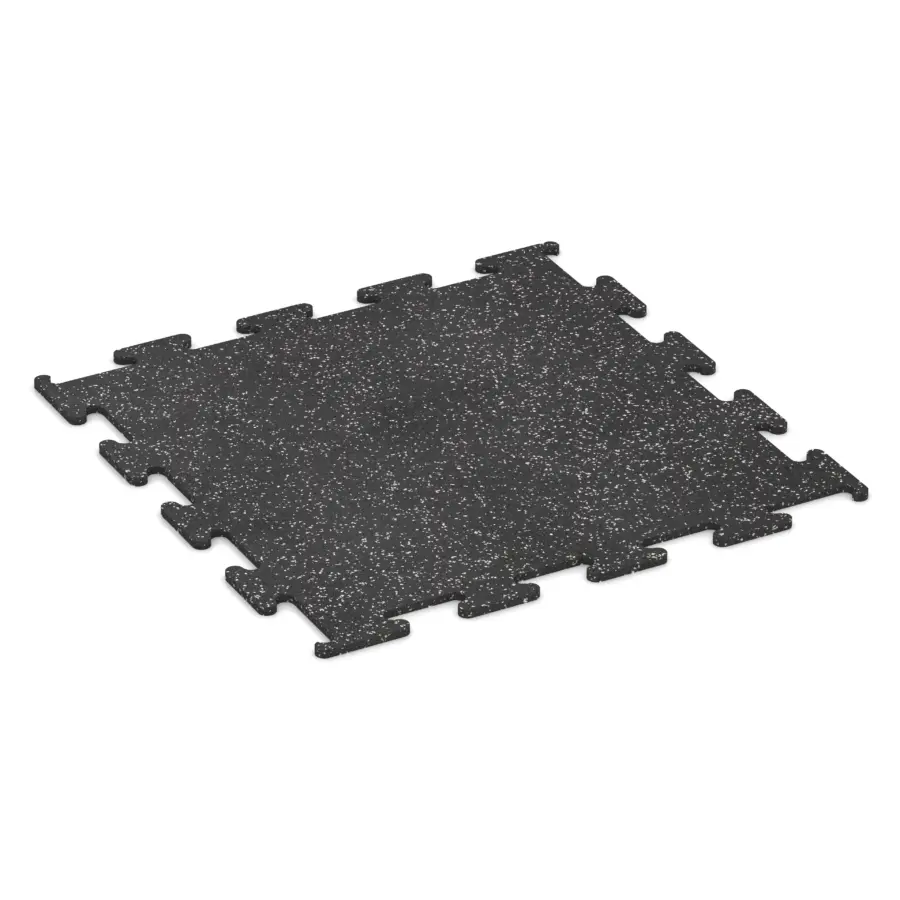

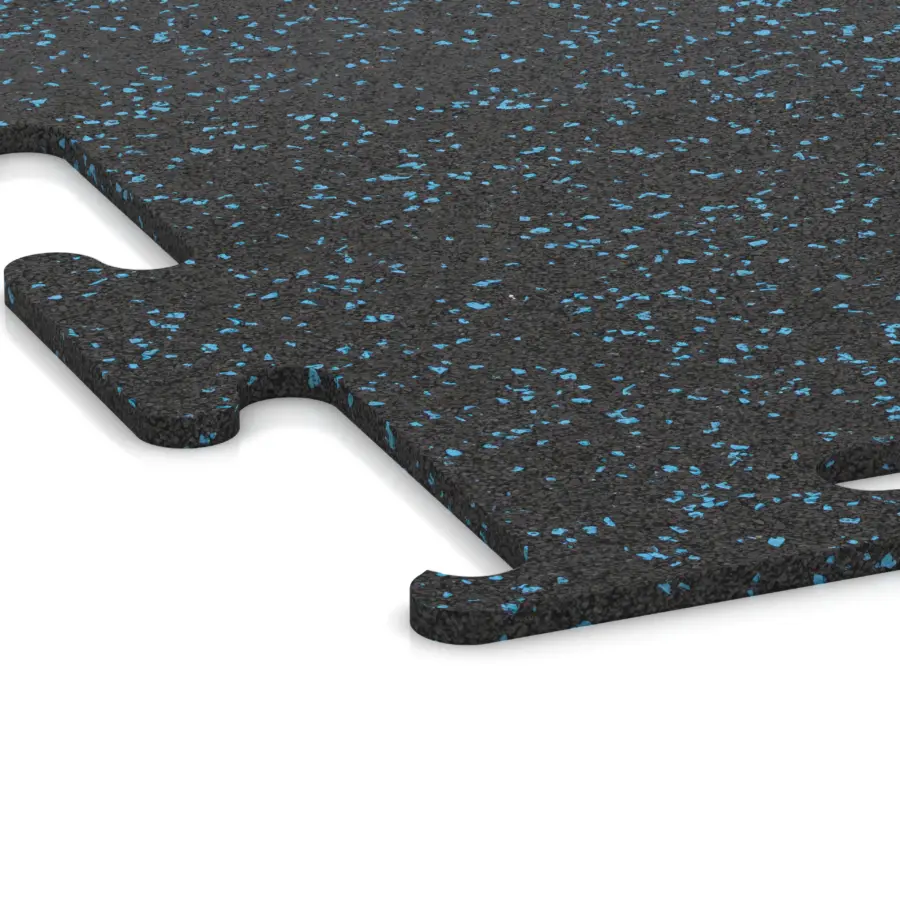

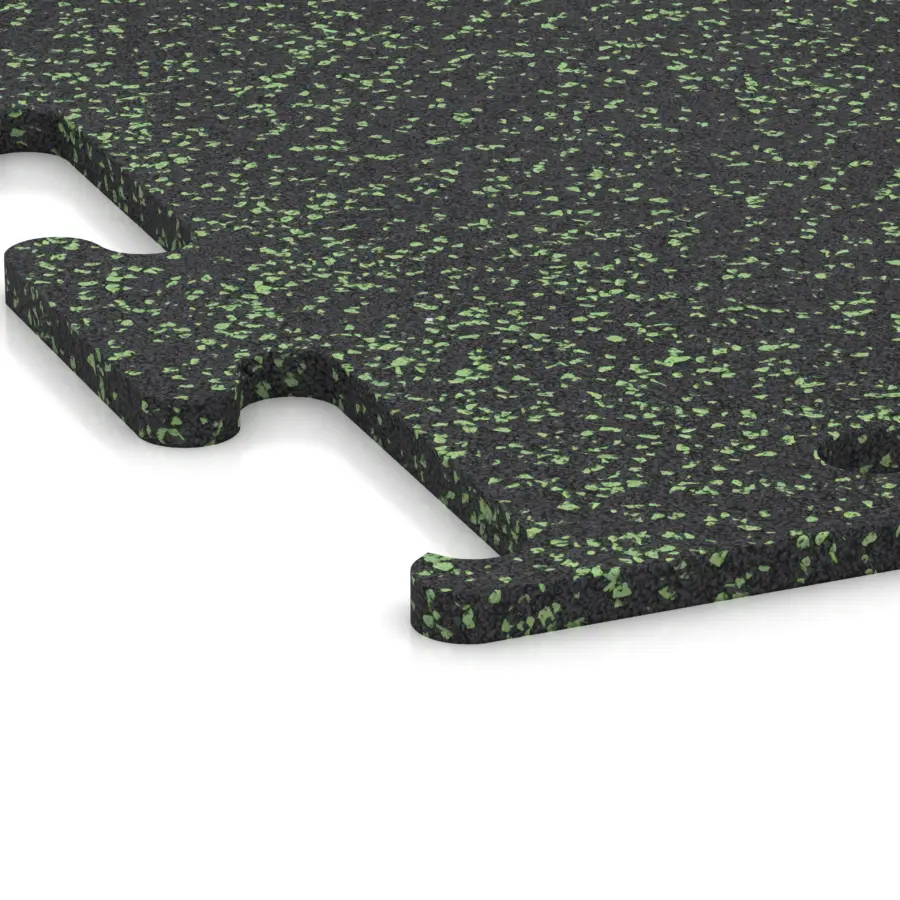

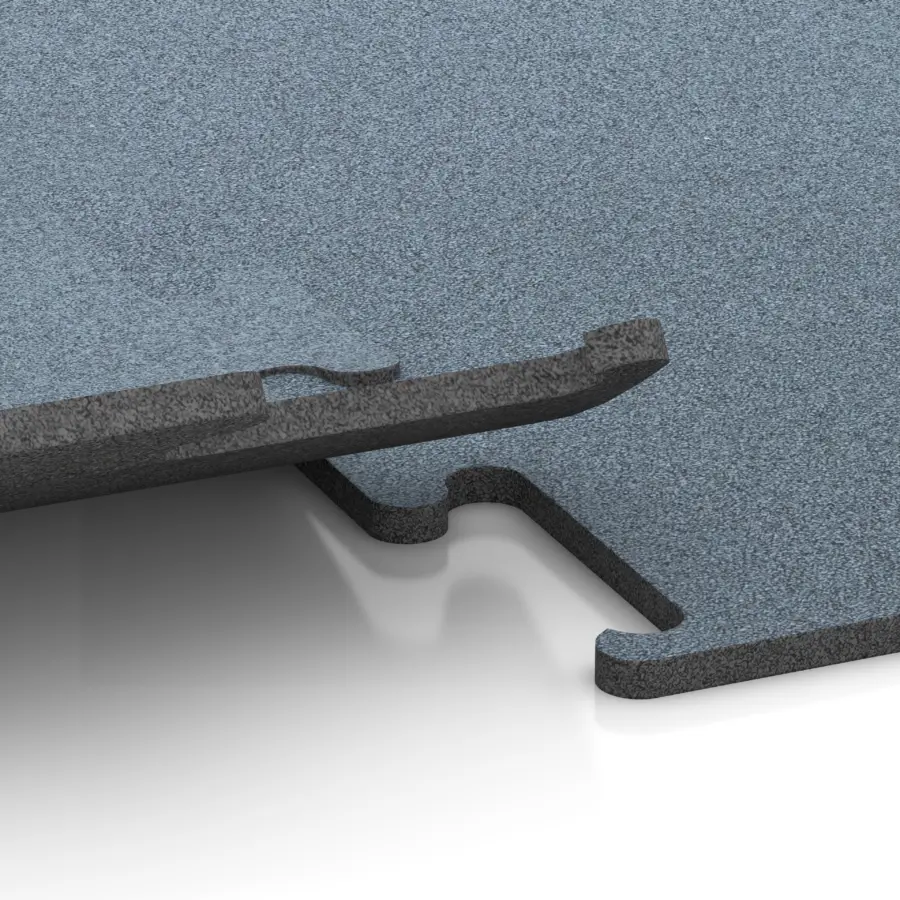

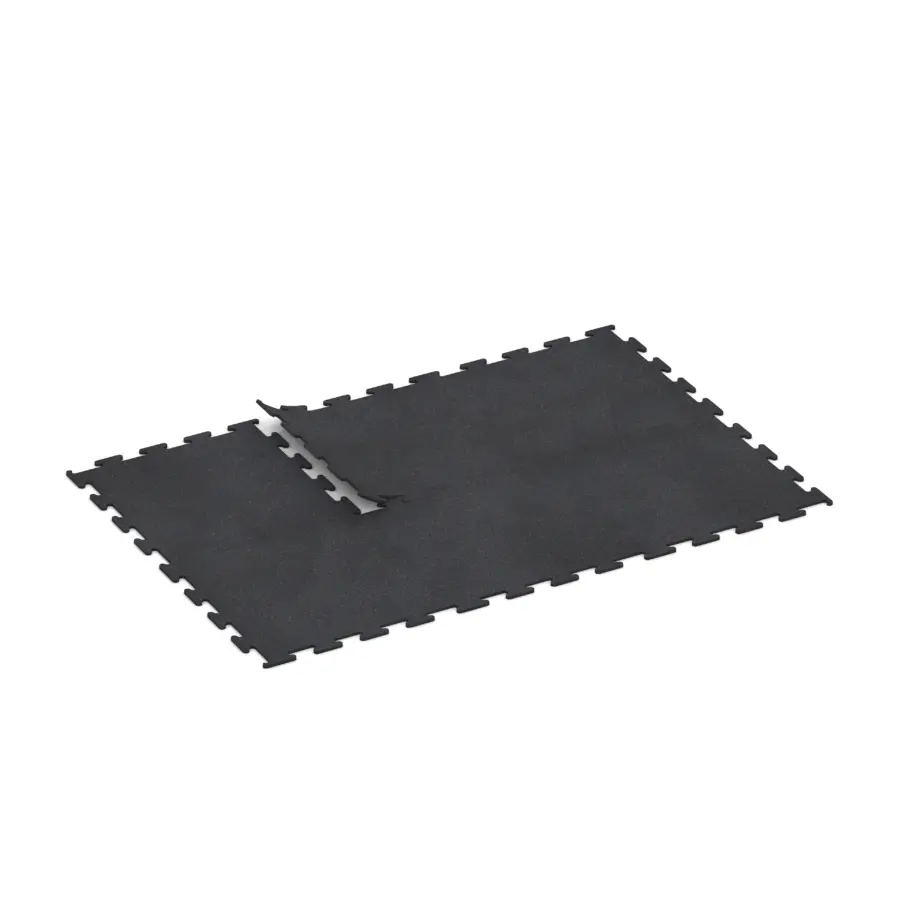

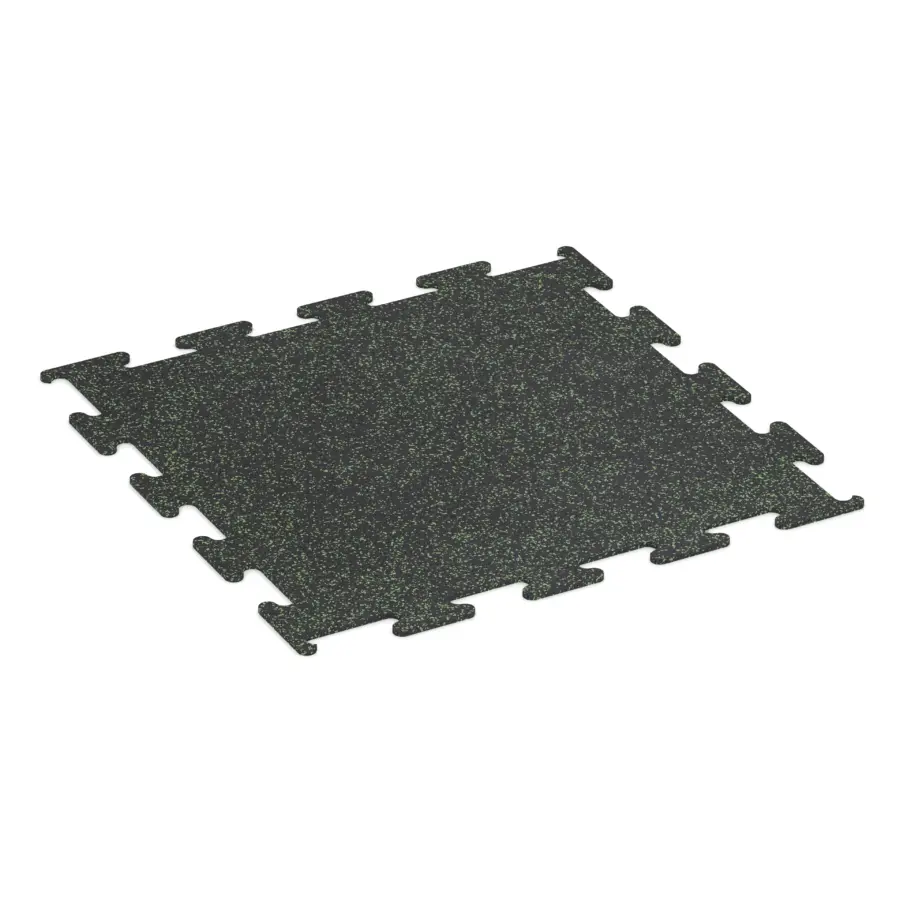

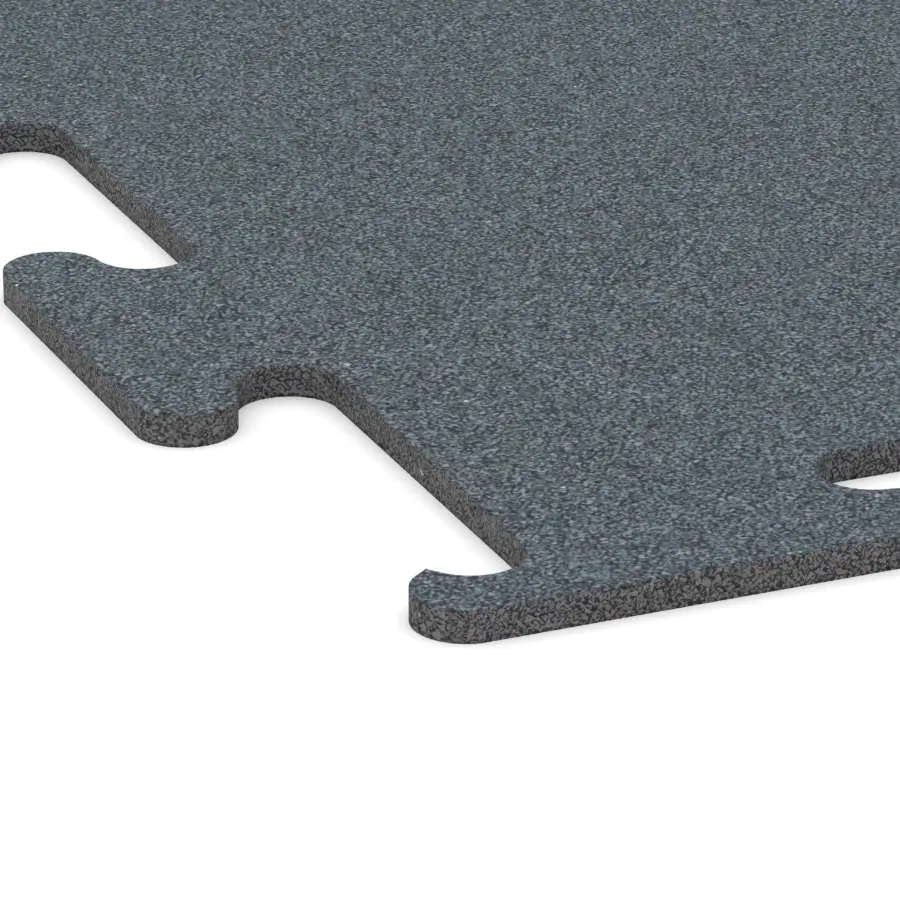

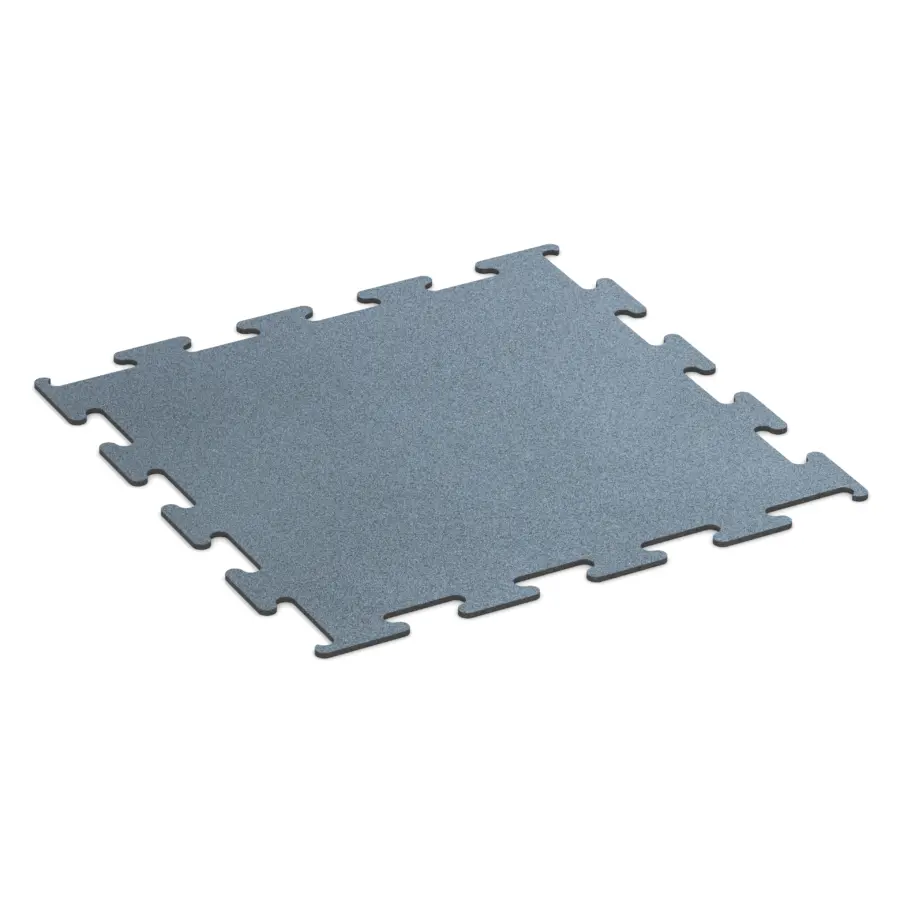

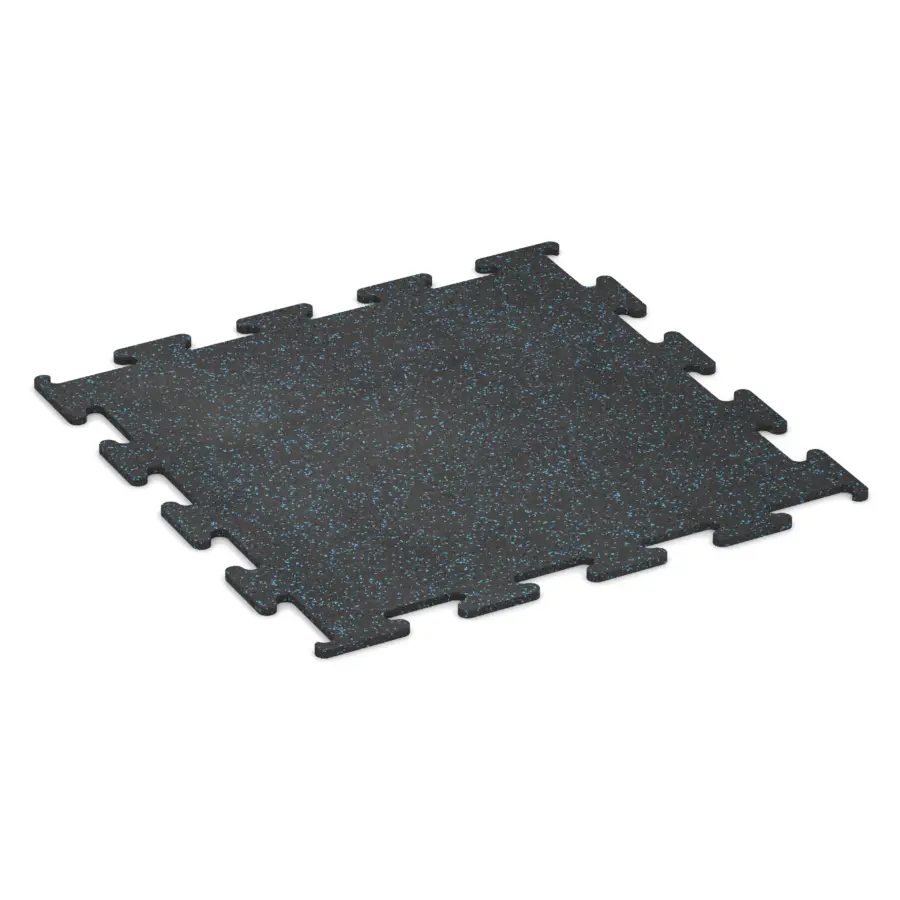

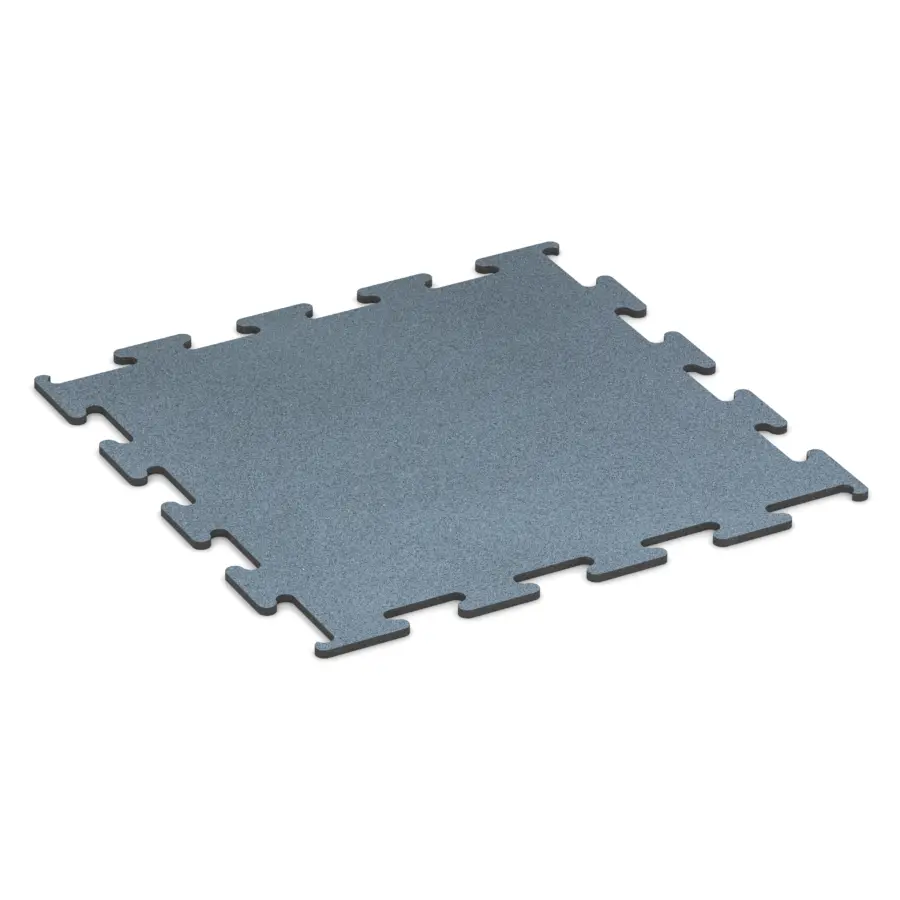

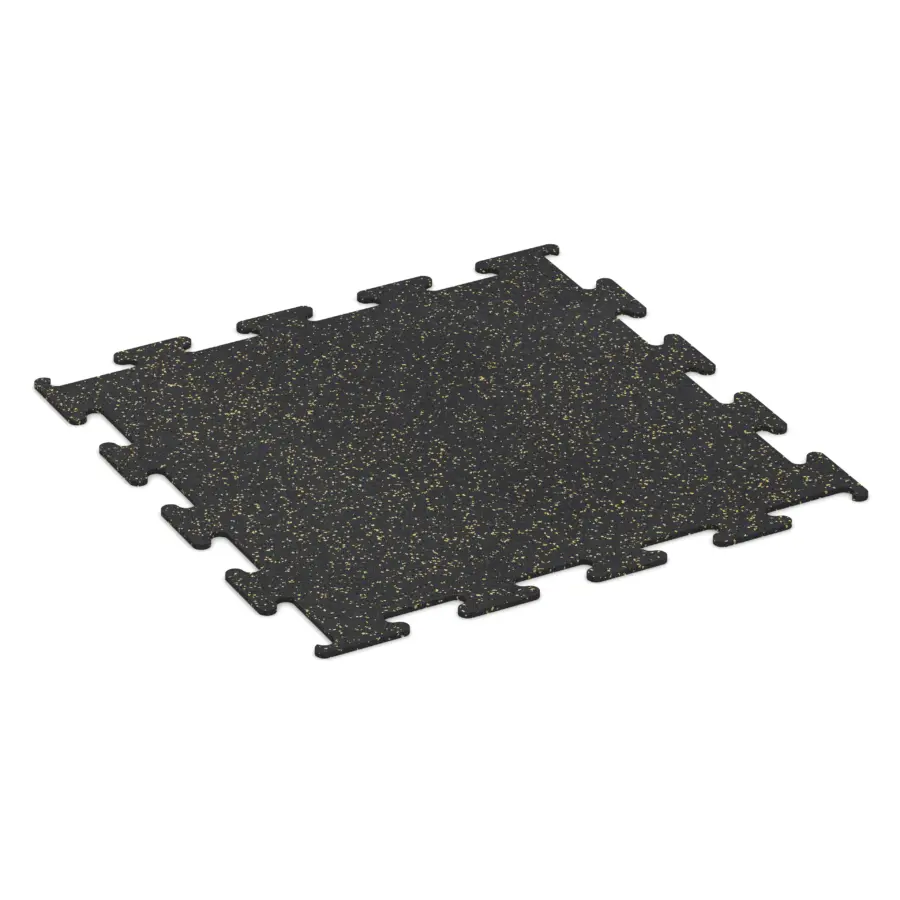

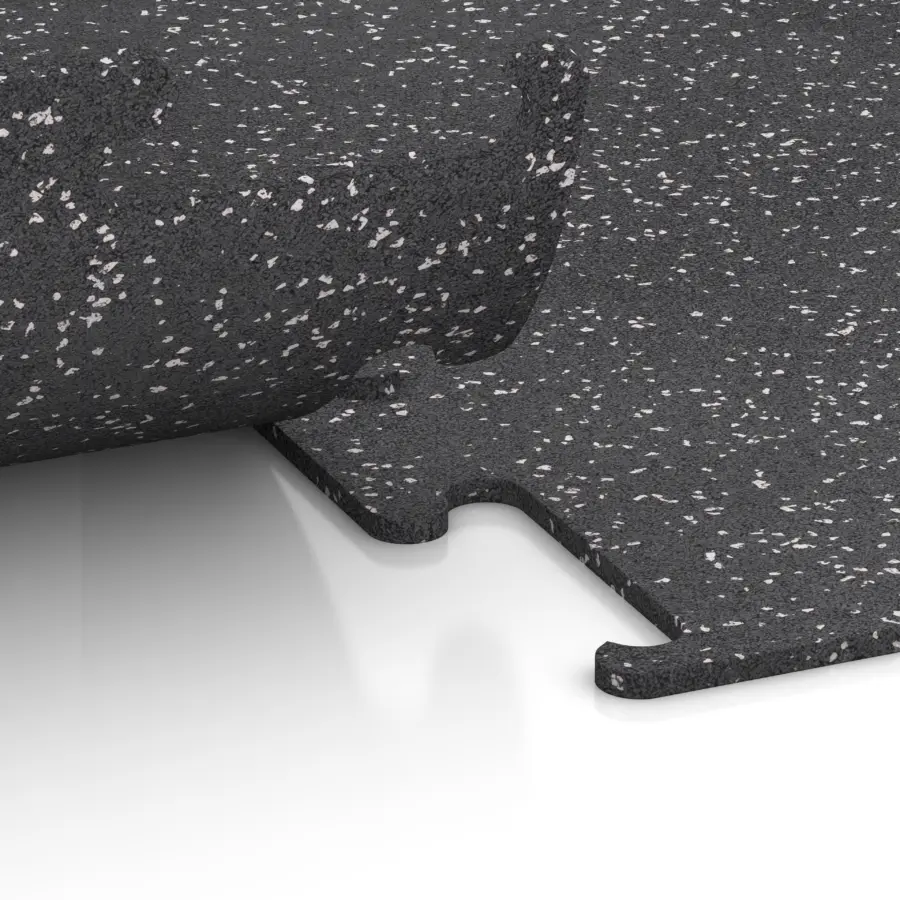

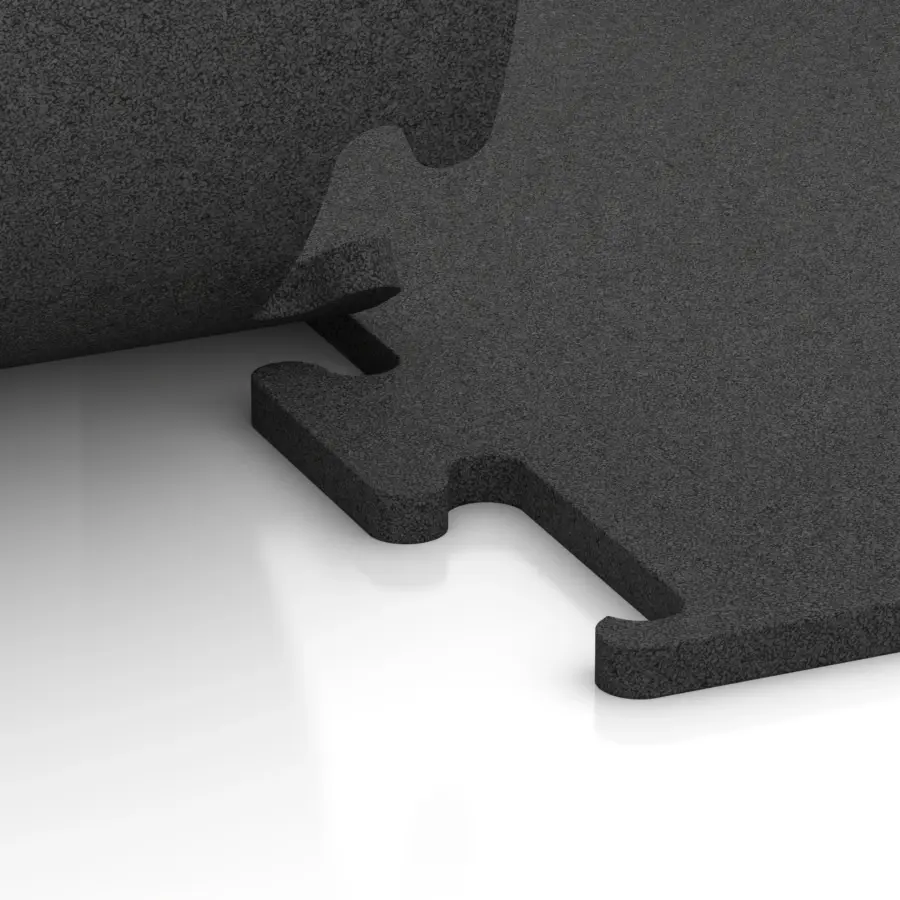

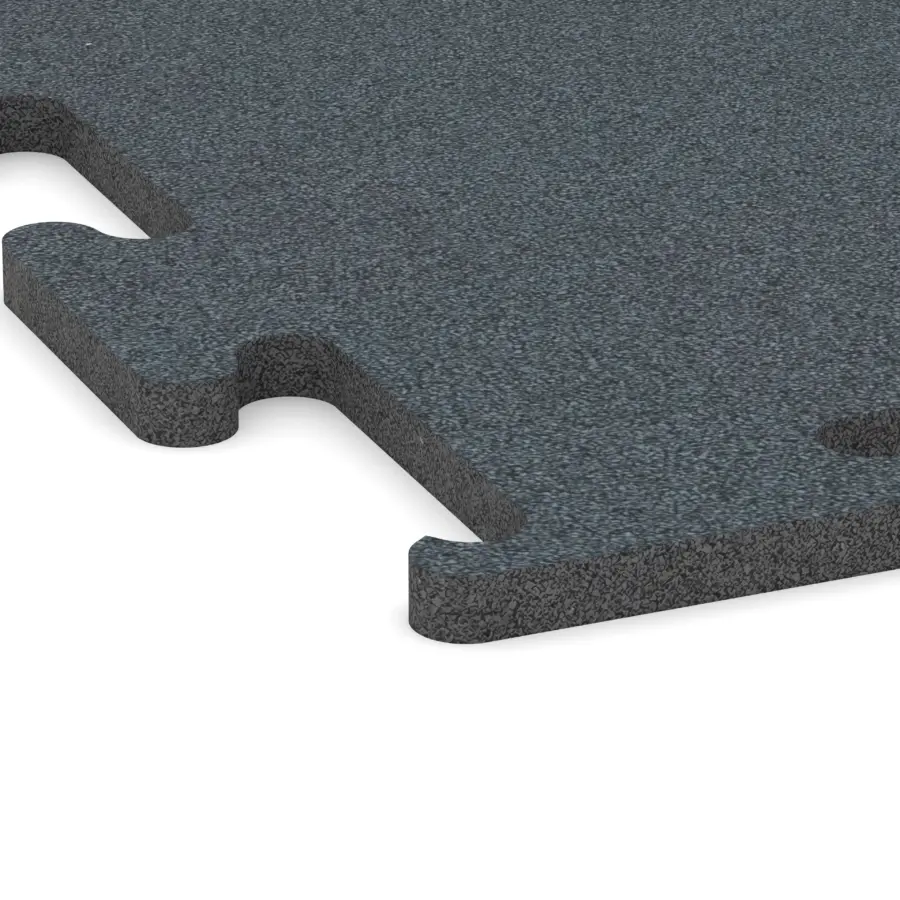

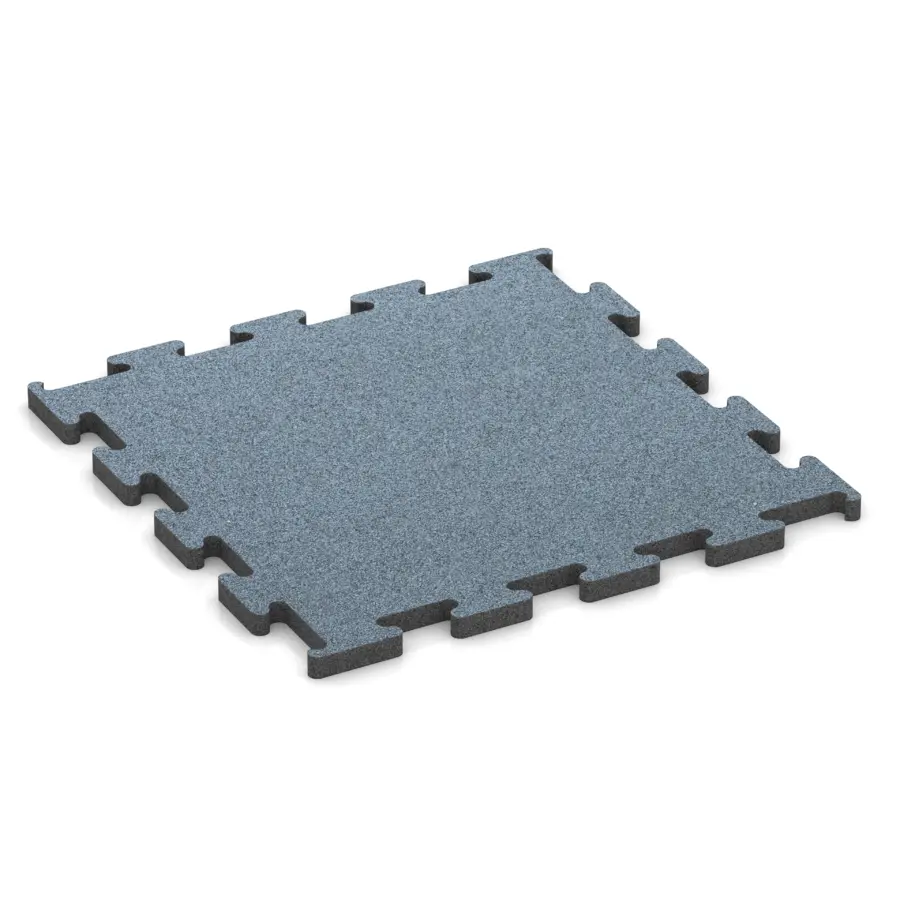

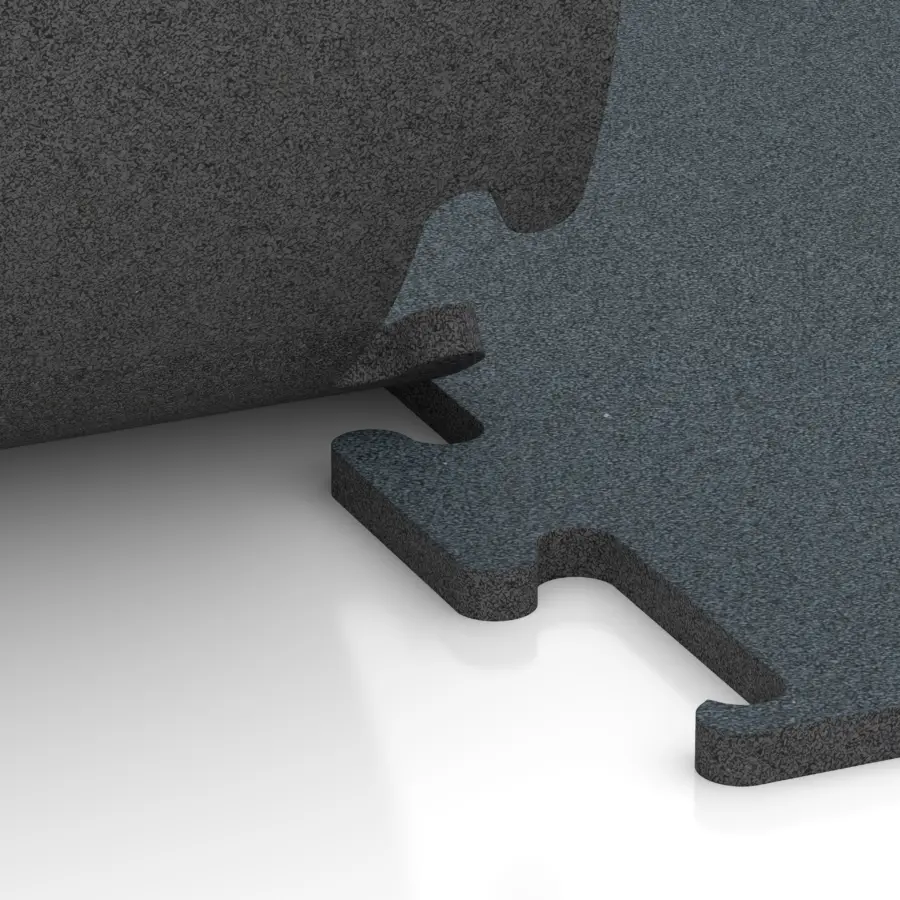

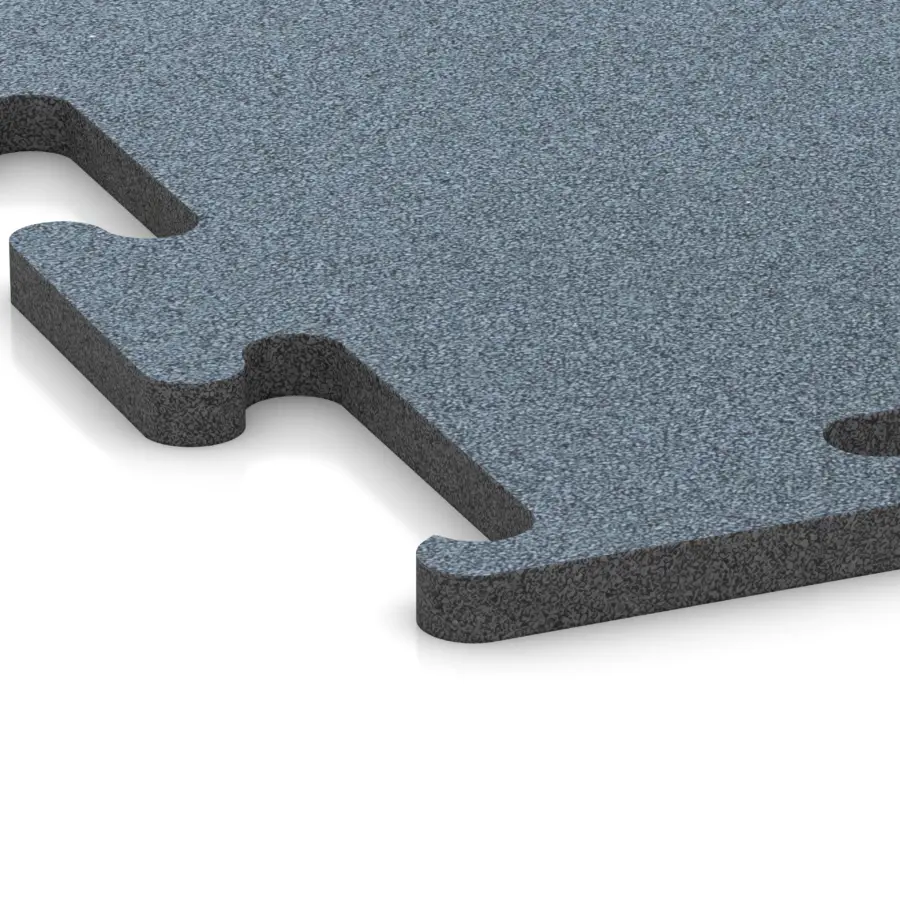

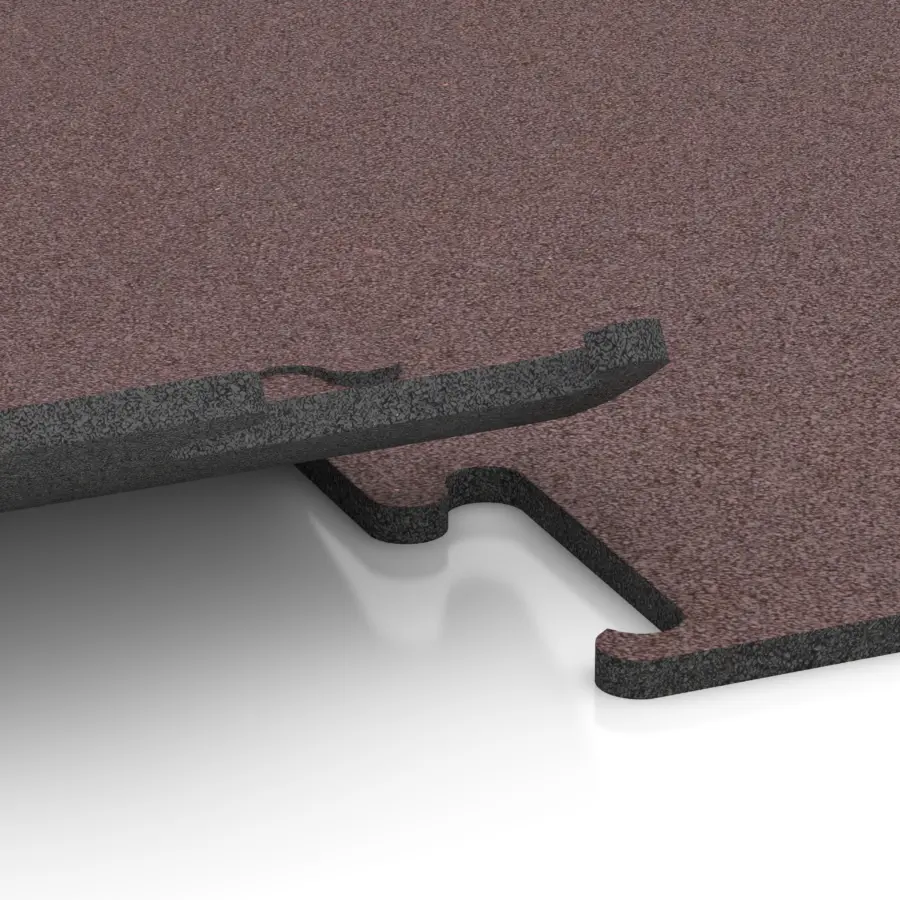

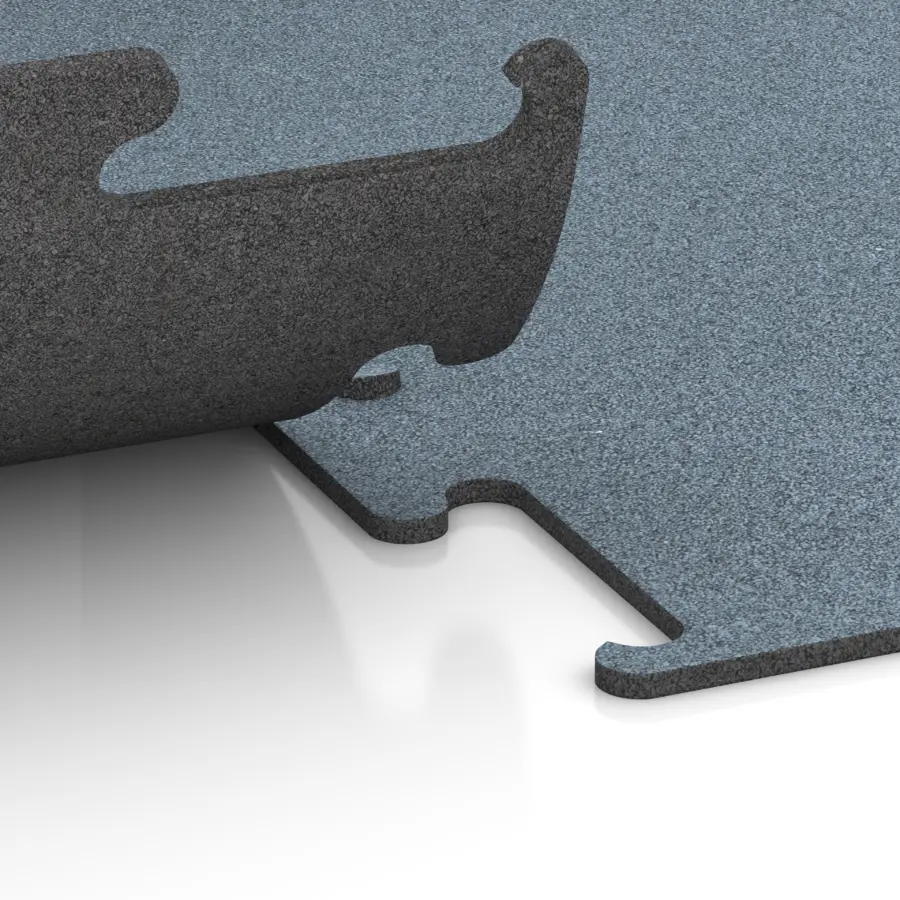

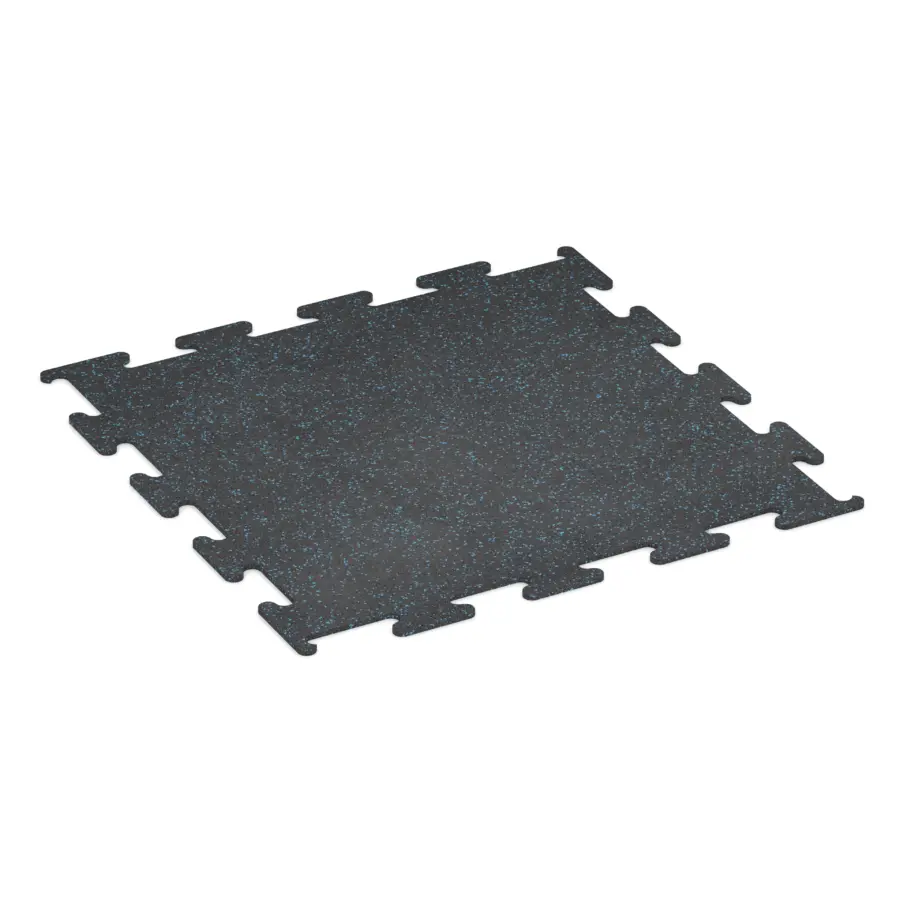

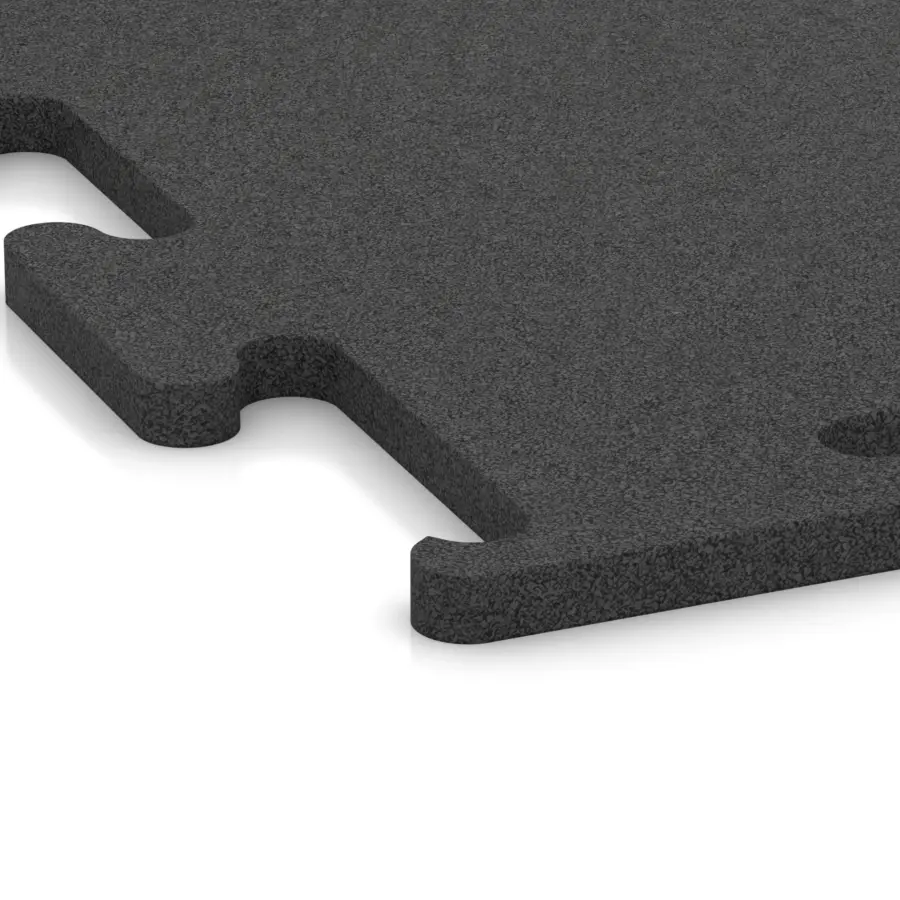

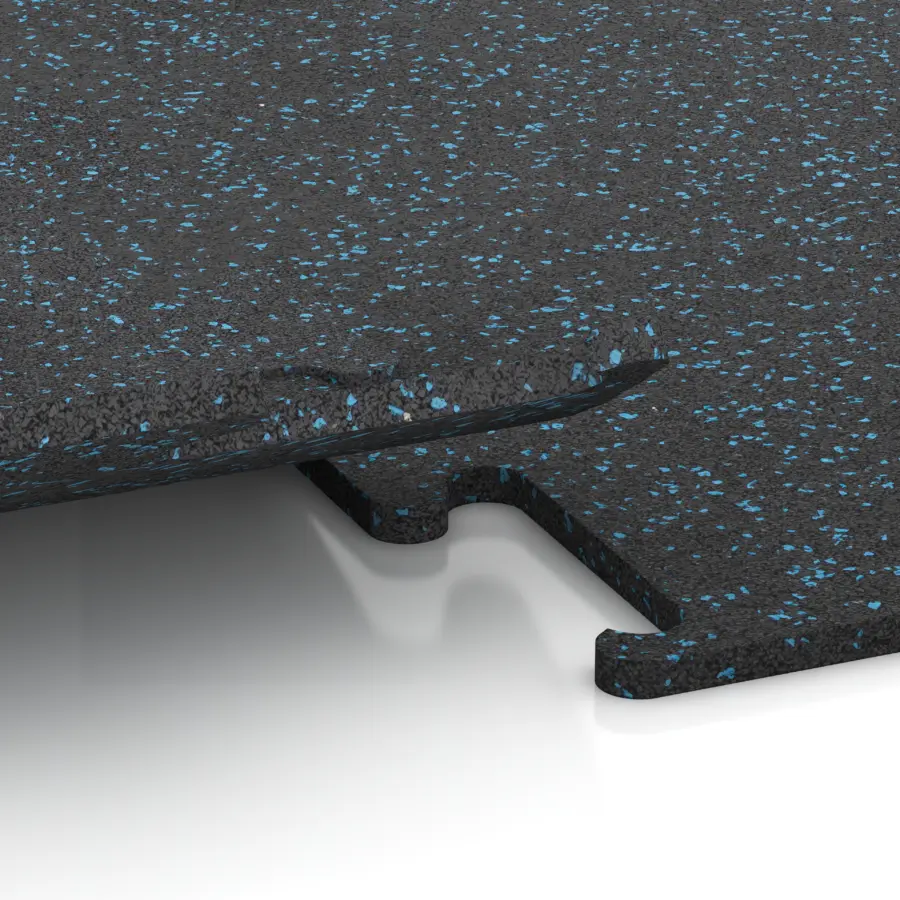

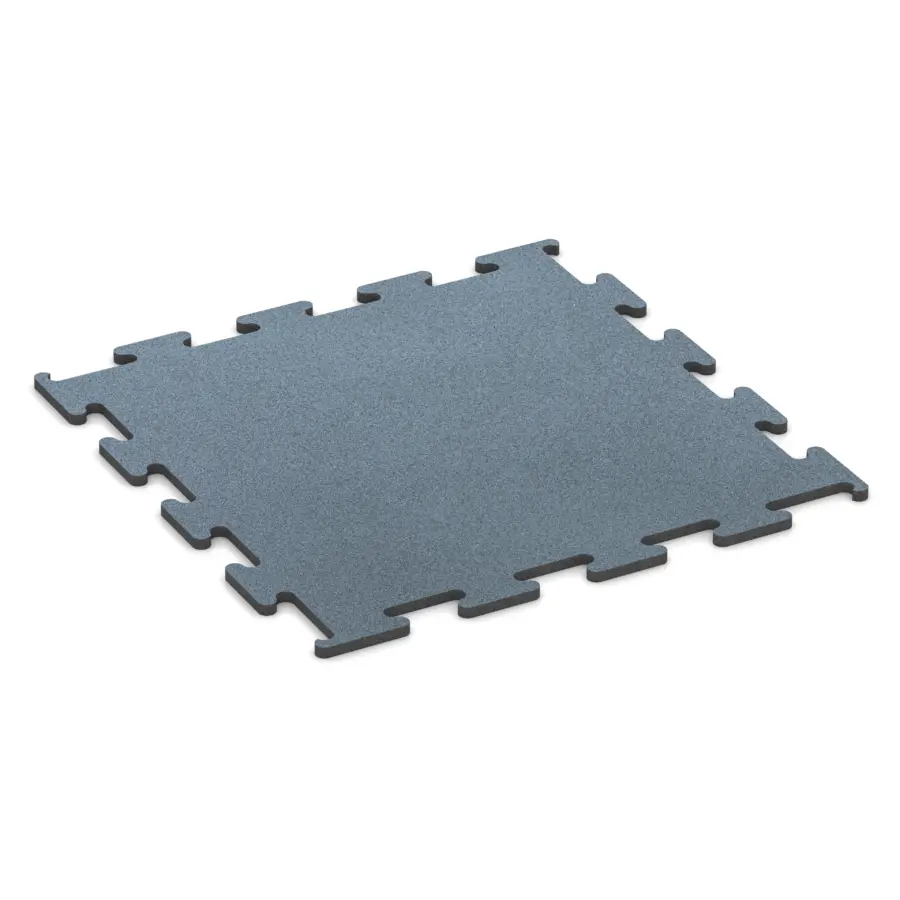

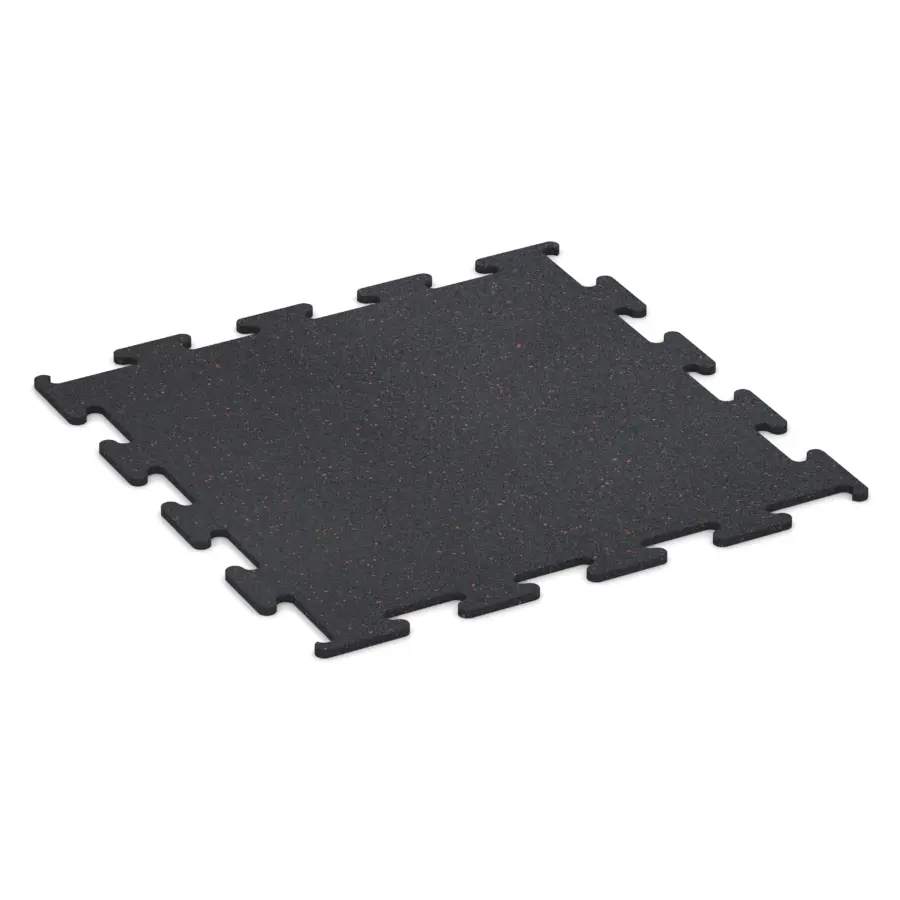

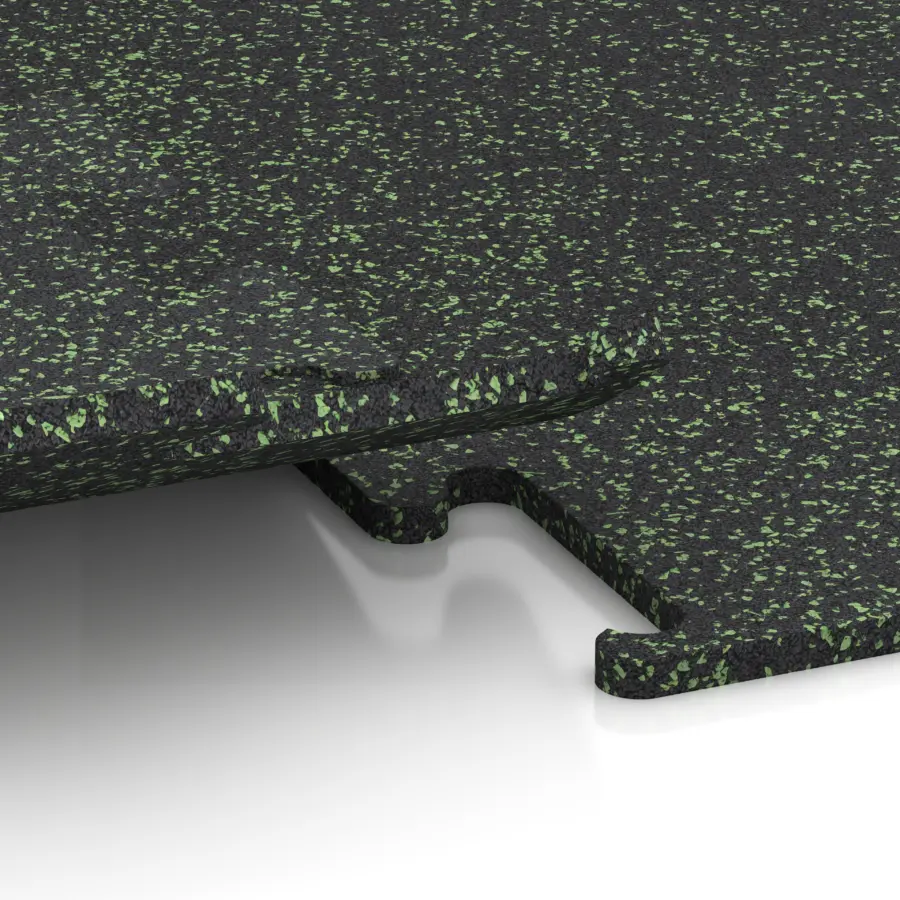

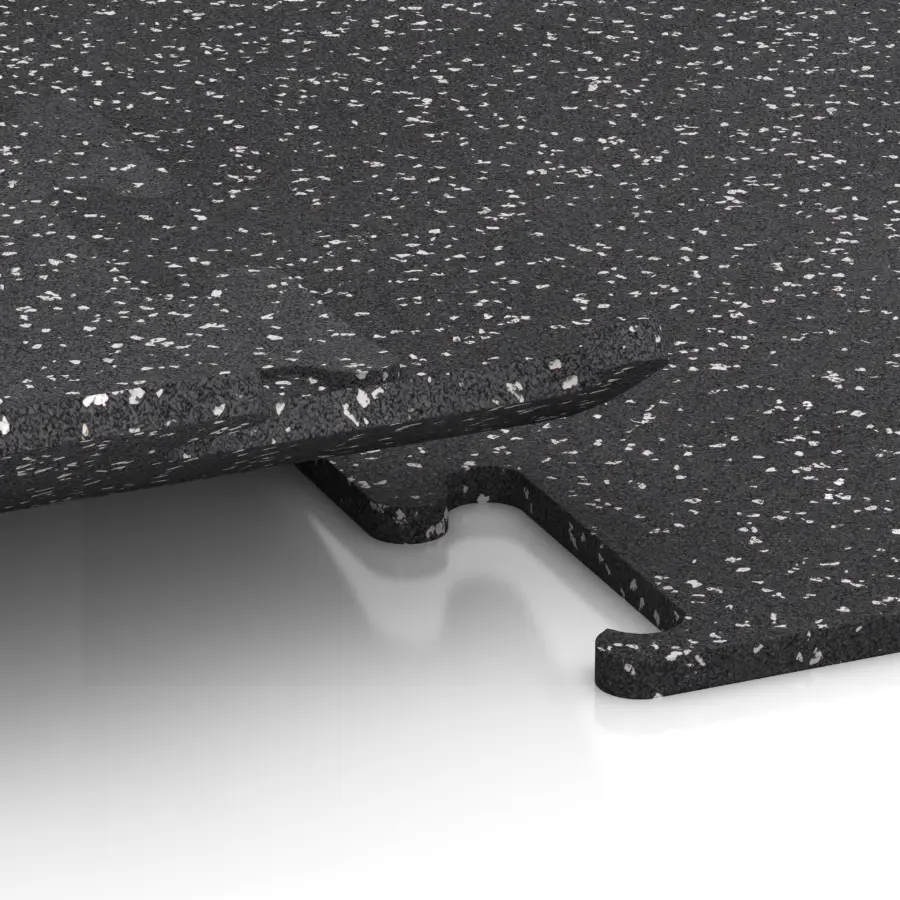

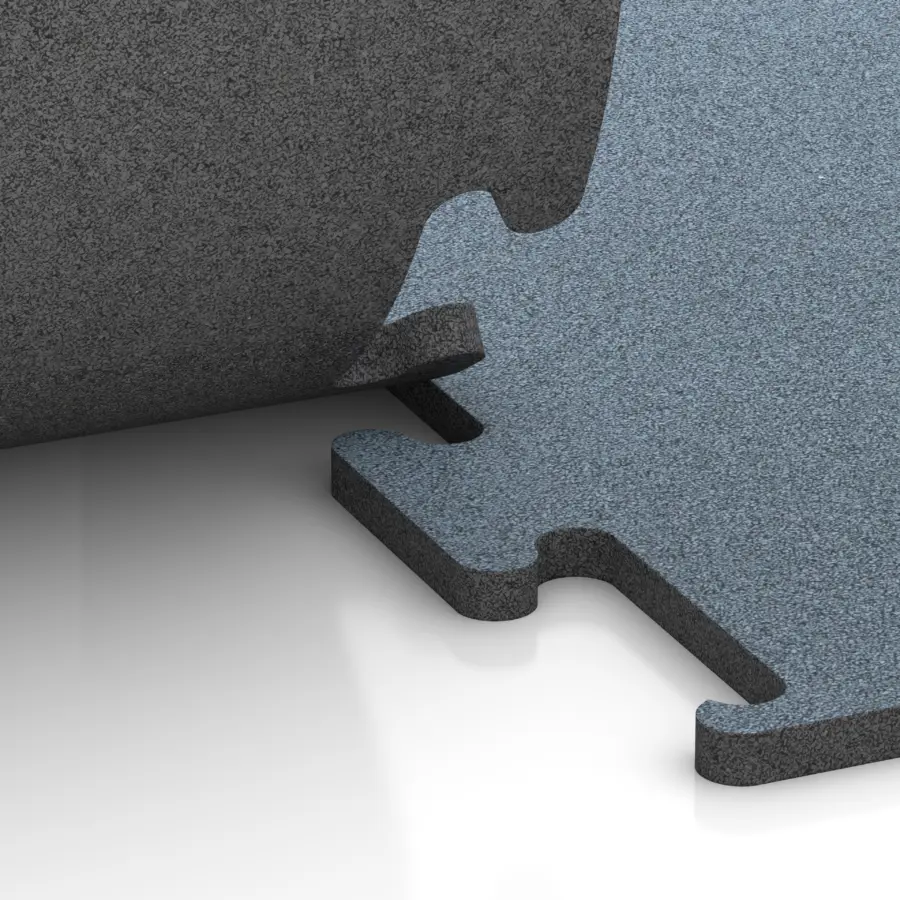

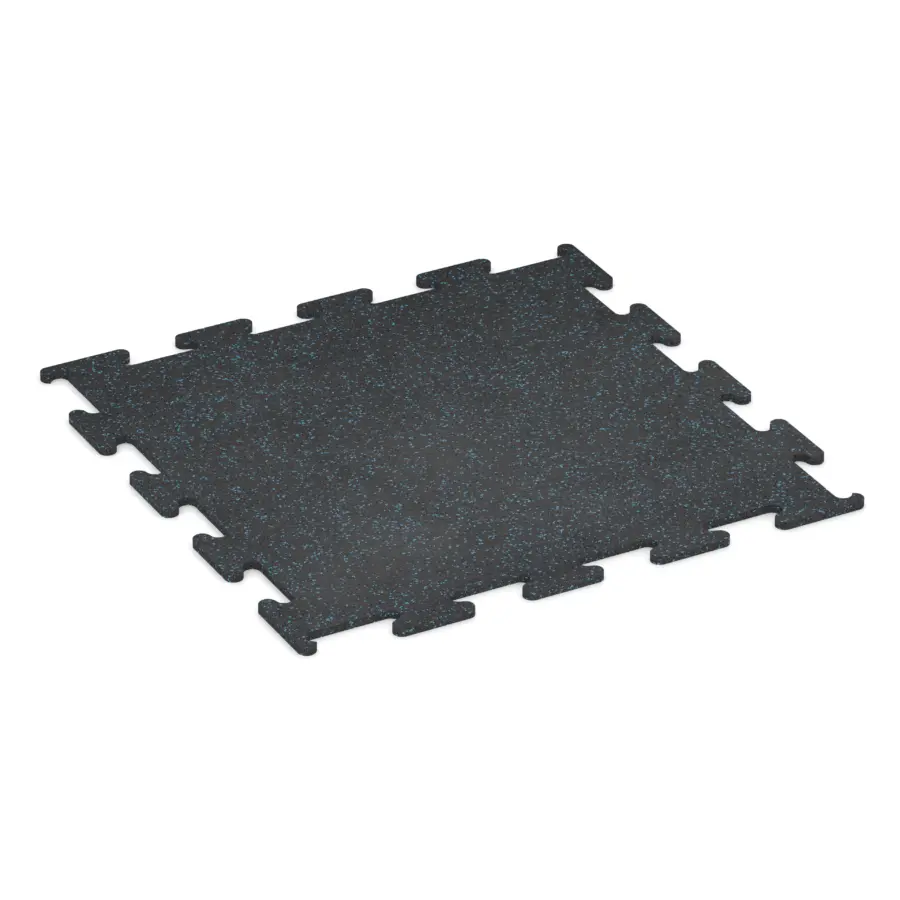

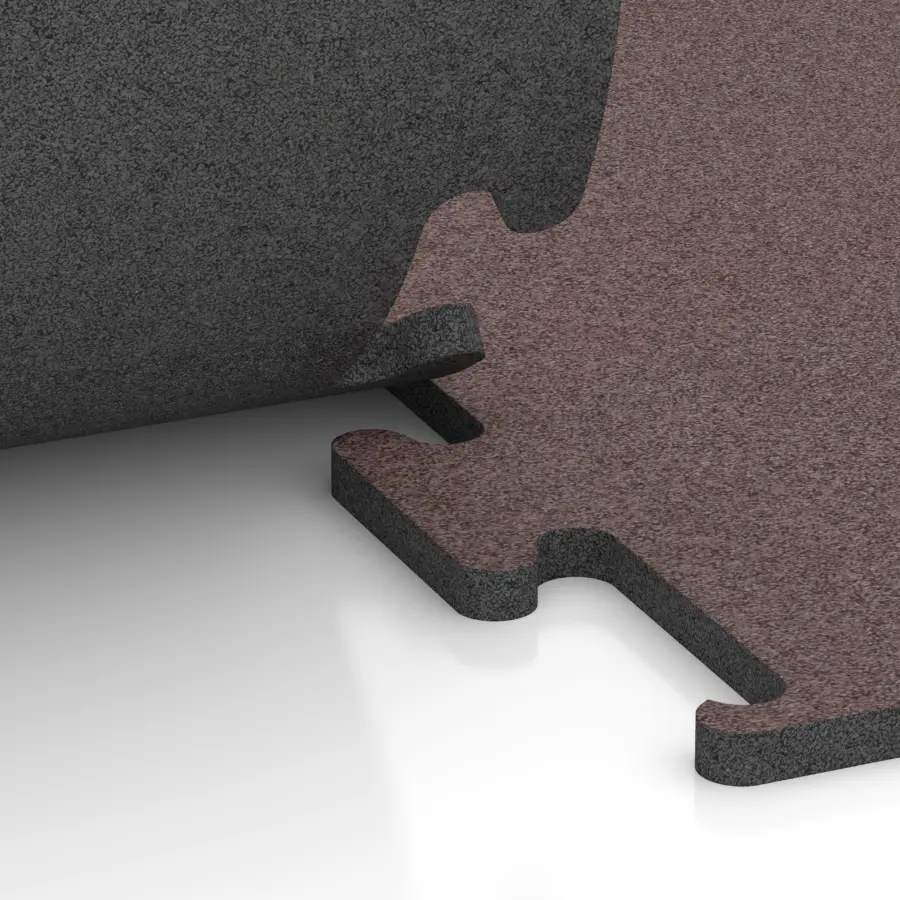

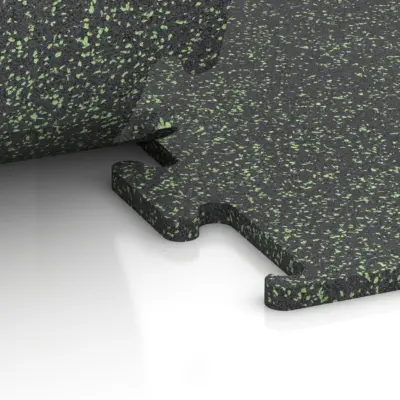

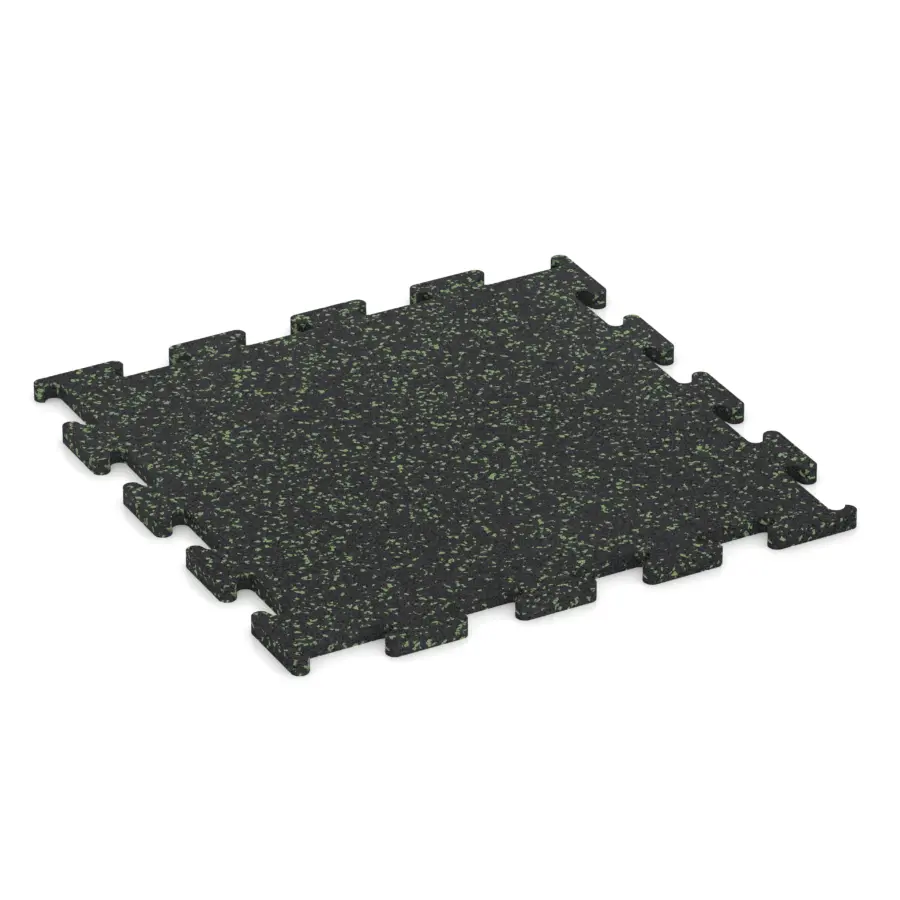

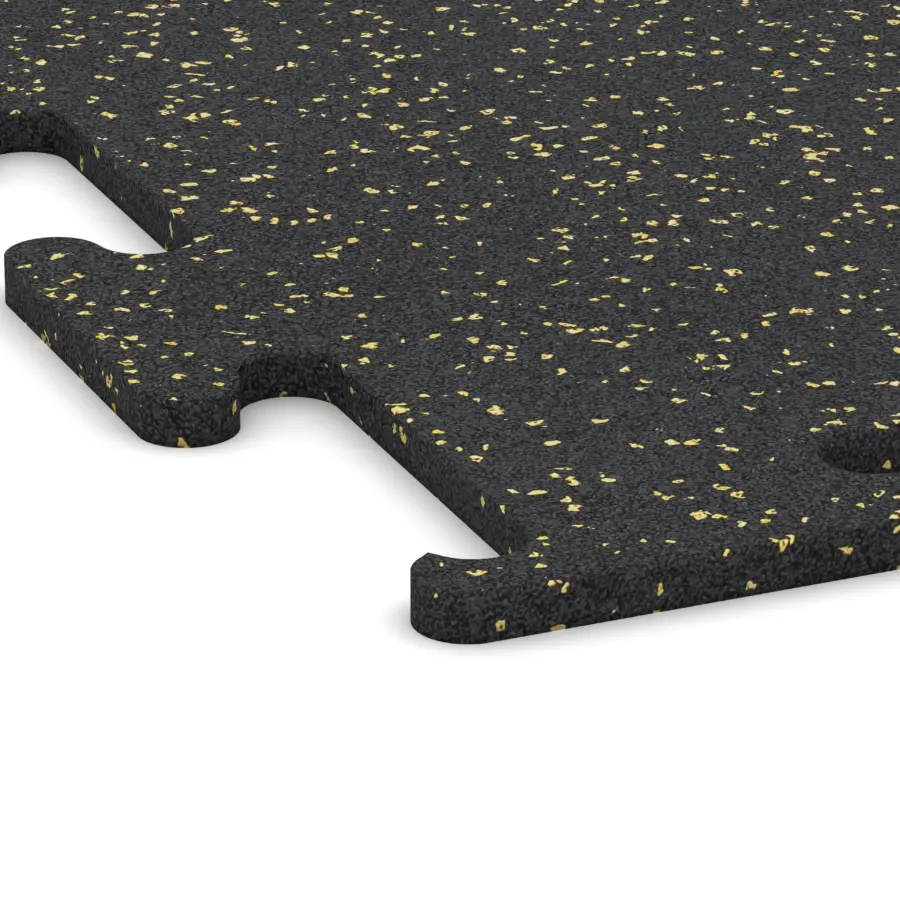

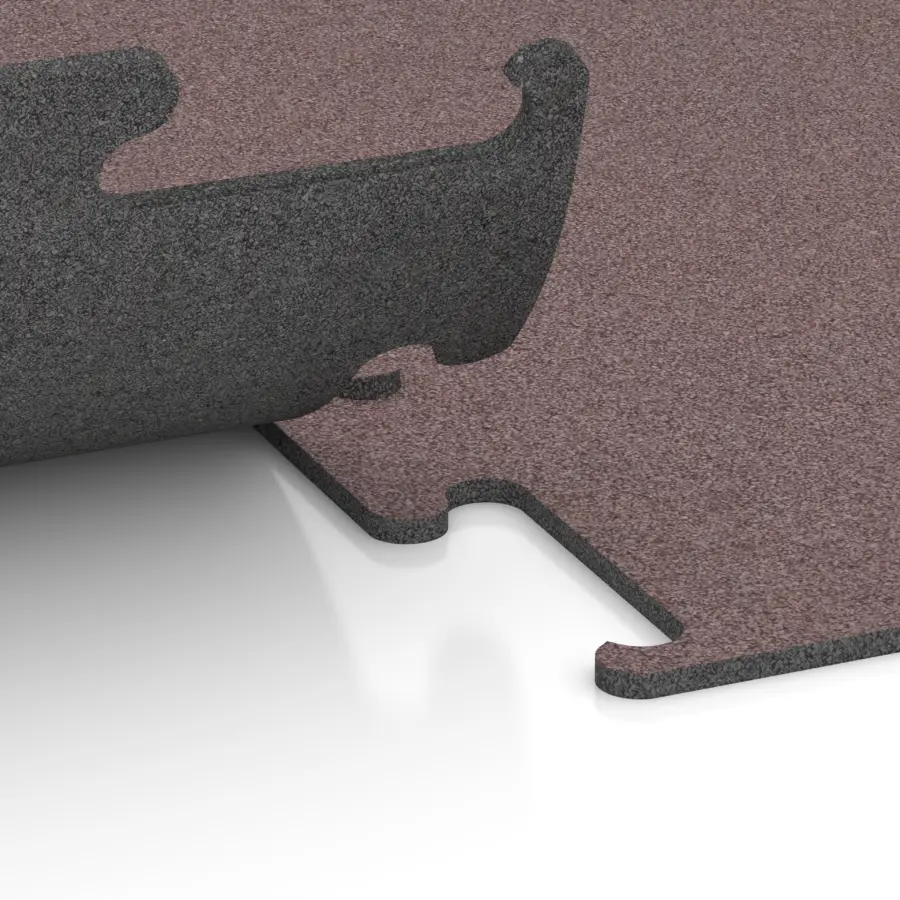

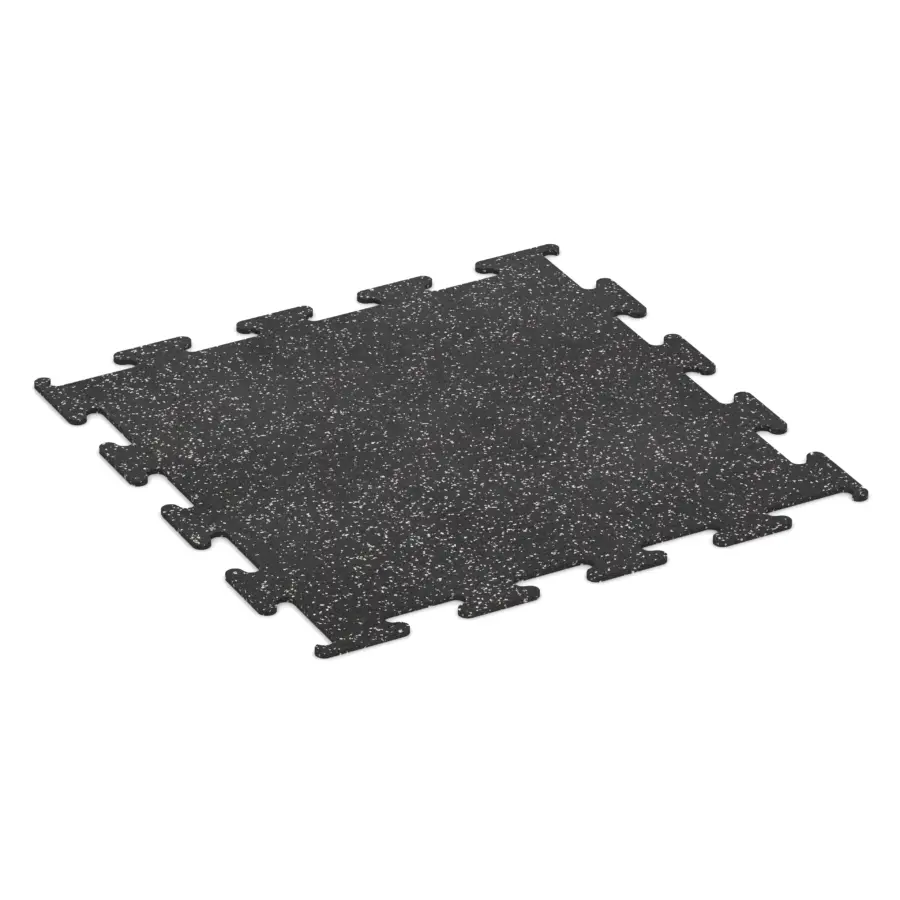

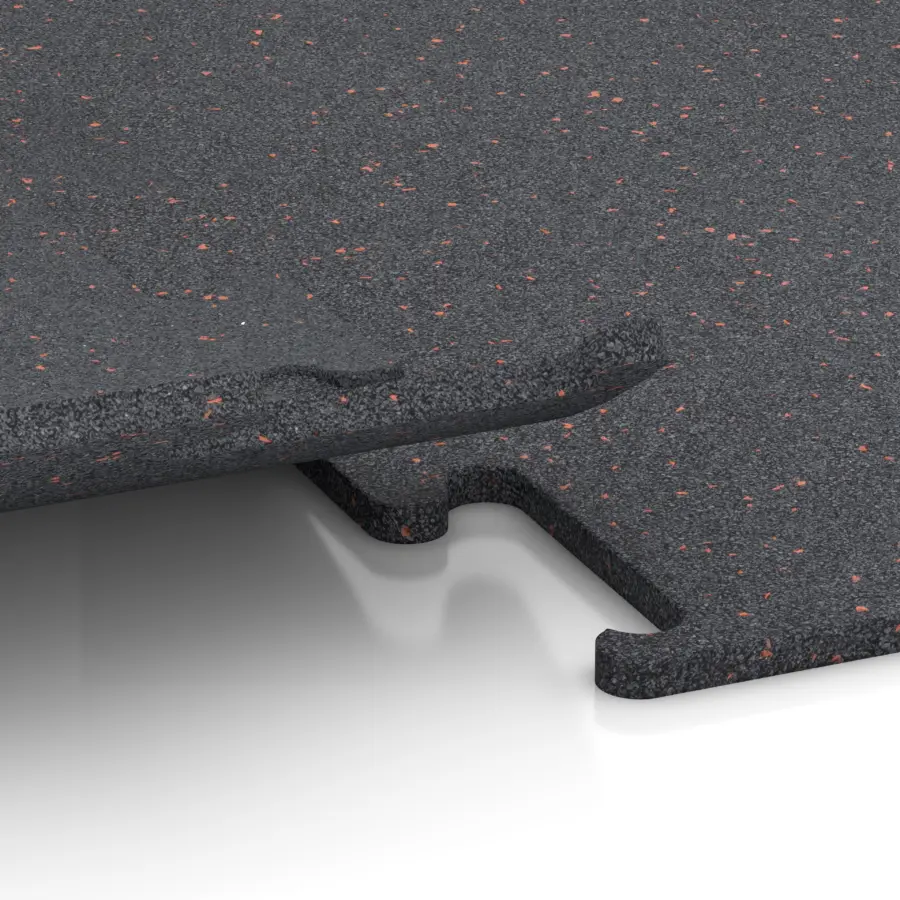

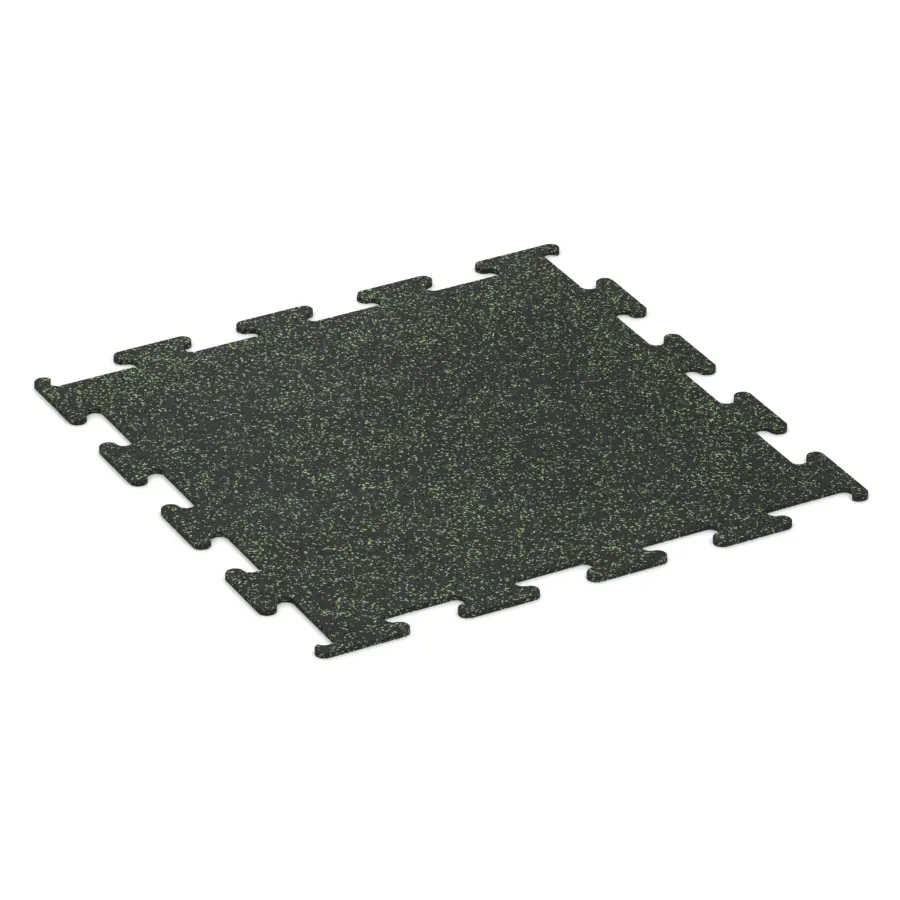

The training floor is available in dimensions of 500 × 500 mm and 1,000 × 1,000 mm, as well as in thicknesses of 10, 15, and 20 mm. The individual tiles feature a precisely cut interlocking edge without a bevel. Once installed, the tile joints are virtually invisible. The result is a smooth and uniform floor surface that integrates particularly well into modern training and fitness areas.

High load-bearing capacity and comfortable cushioning

The slip-resistant and abrasion-resistant surface is designed to meet the demands of heavily used training areas. Thanks to its compacted material structure, the flooring offers high compressive strength and is designed for long-term use.

At the same time, the rubber granules have shock-absorbing properties and reduce both vibrations and impact noise. As a result, training equipment, the subfloor, and adjacent areas are subjected to less stress from impacts and vibrations. This can be a significant advantage, especially in fitness centers or home gyms located above other rooms.

Application examples

Areas of application for the TM Fitness Elite:

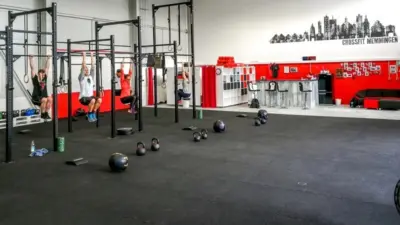

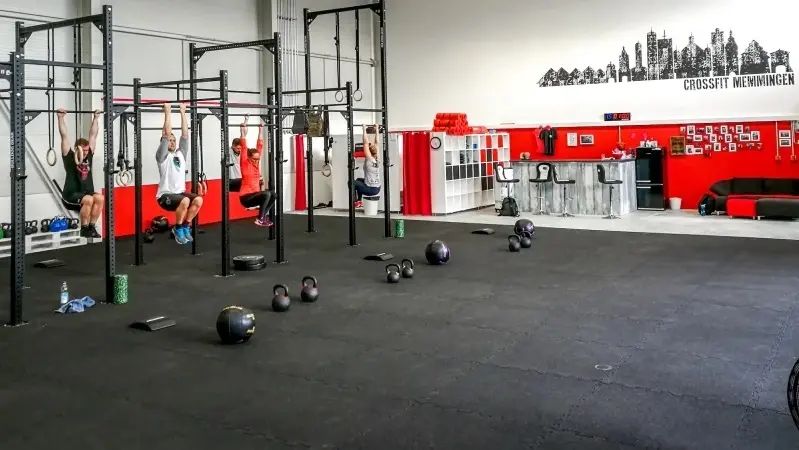

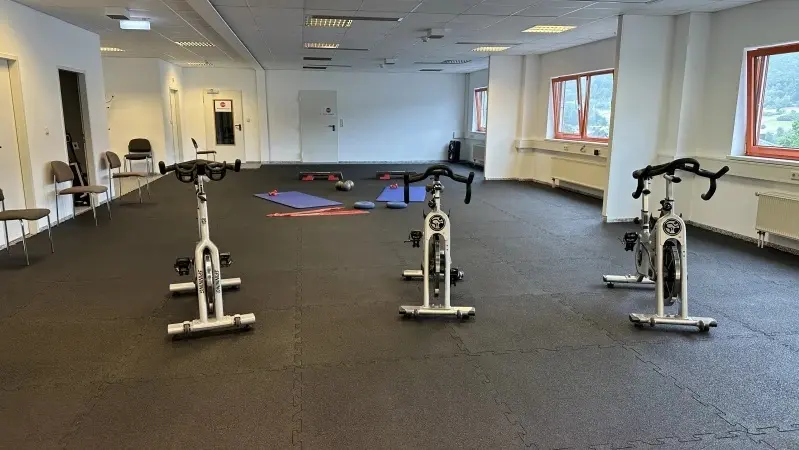

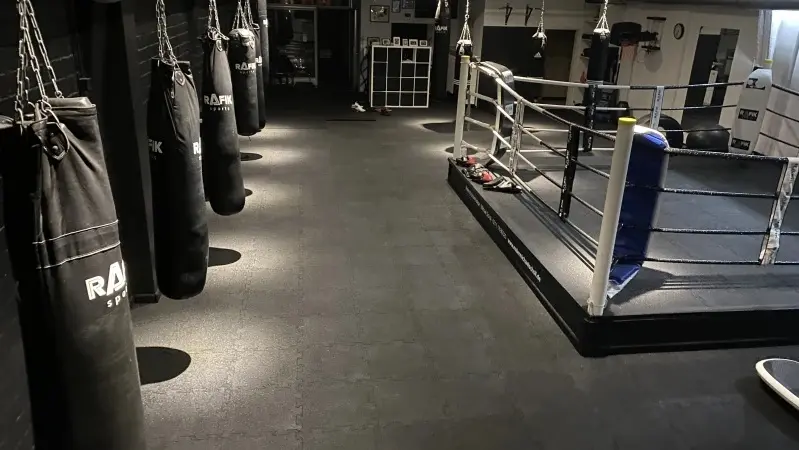

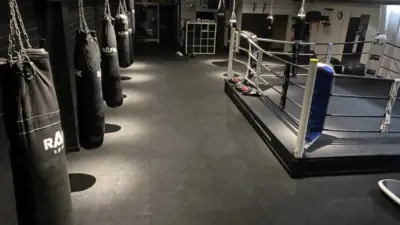

Fitness centres, functional training studios, CrossFit facilities, personal training studios and high-spec home gyms


Data & facts

Easy to install and versatile

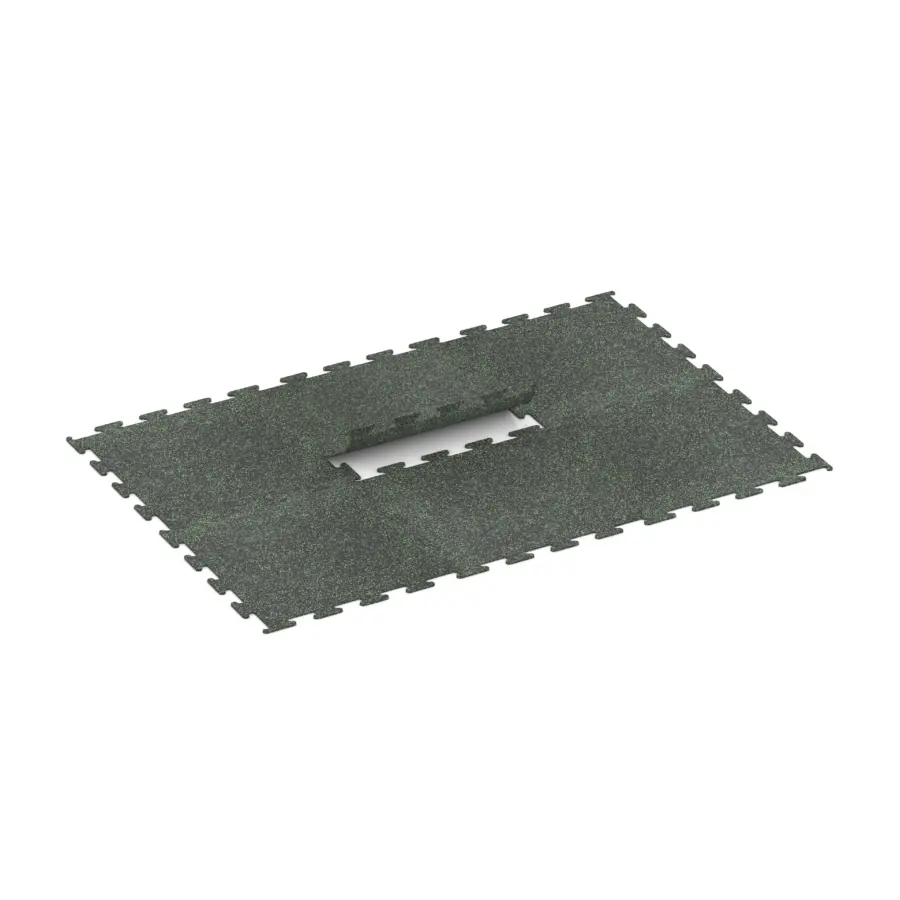

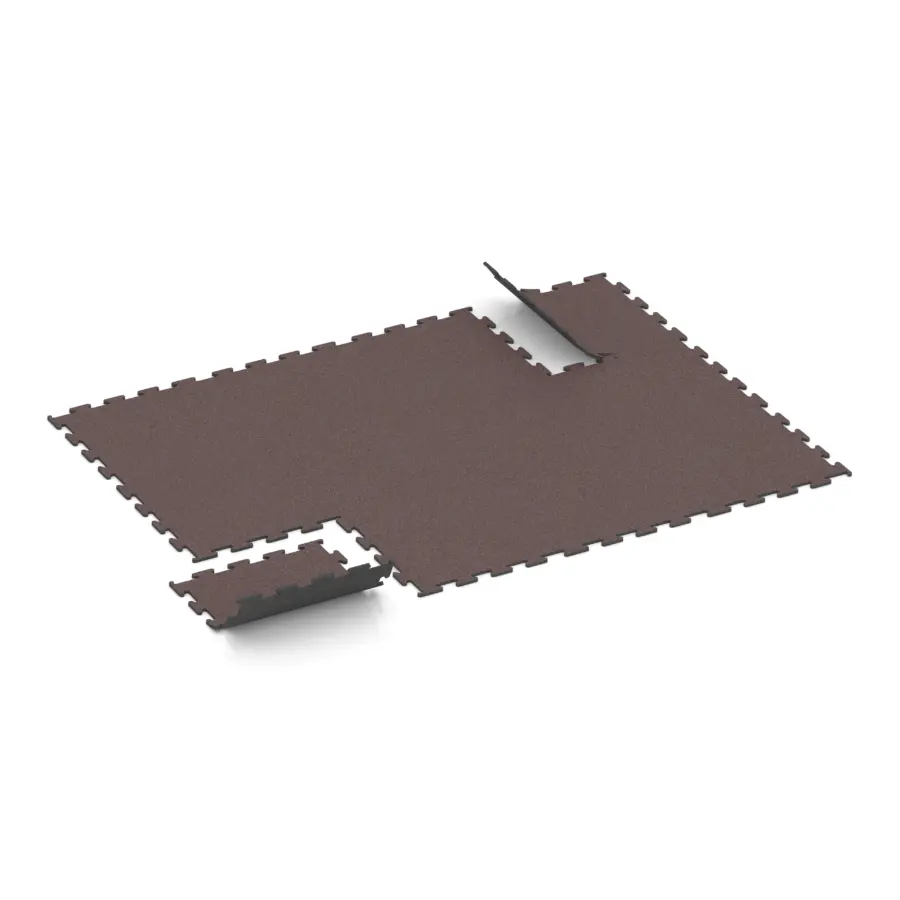

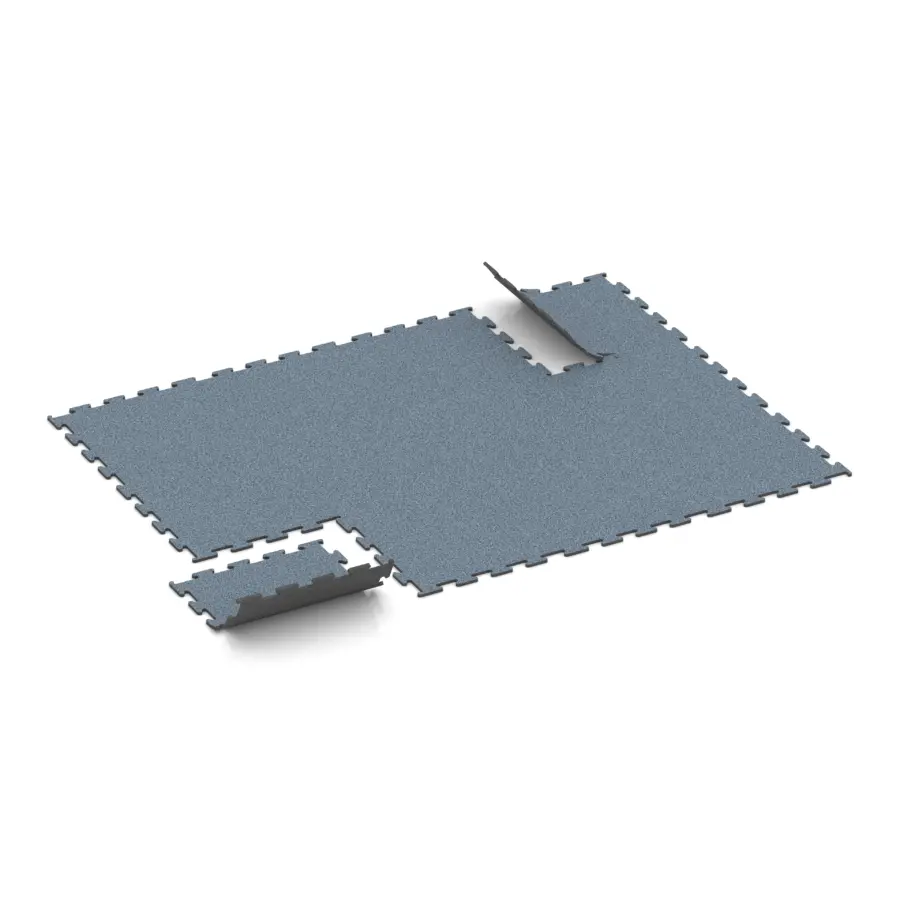

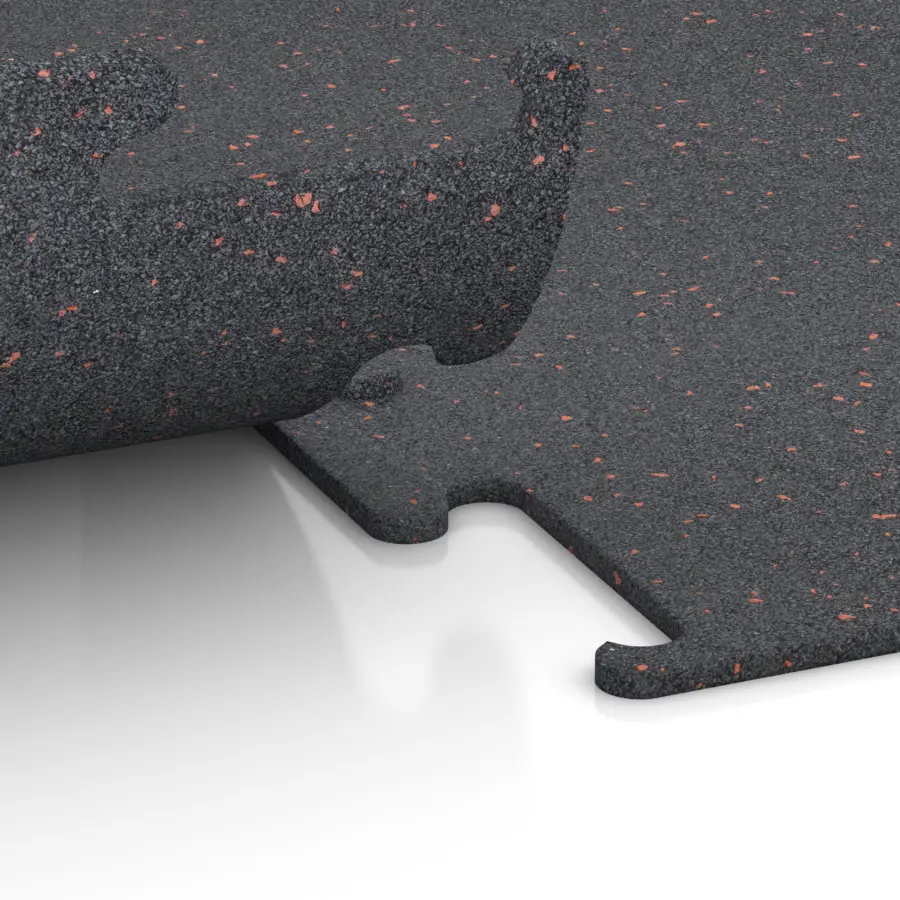

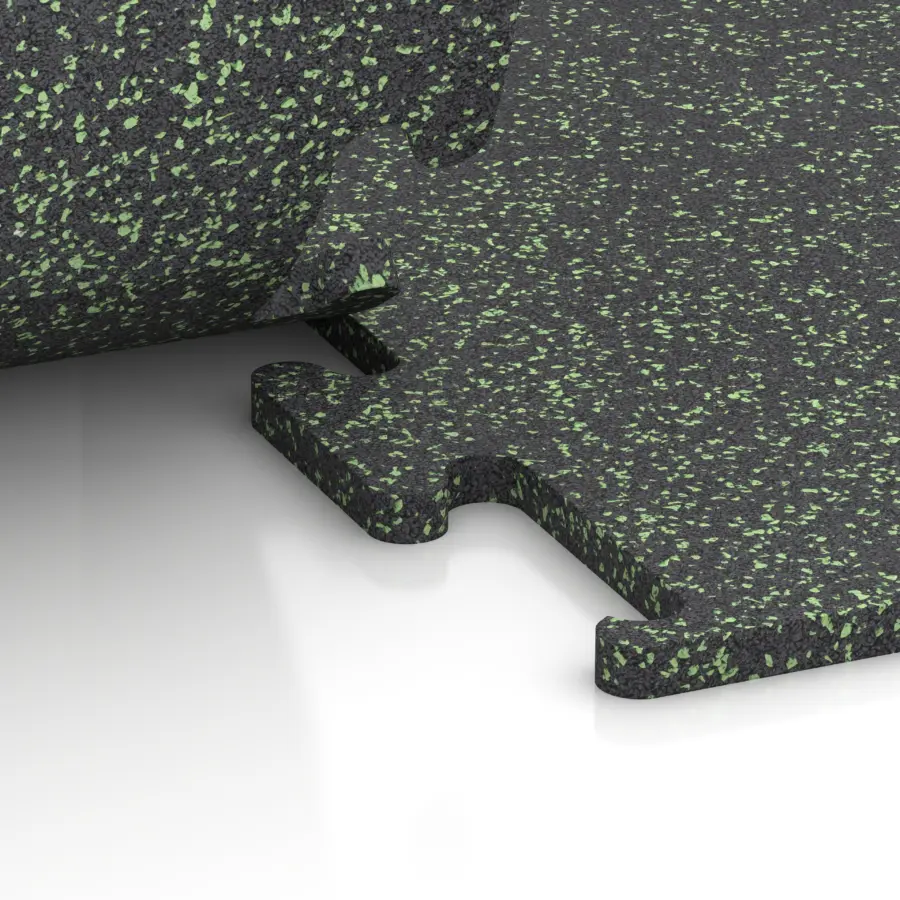

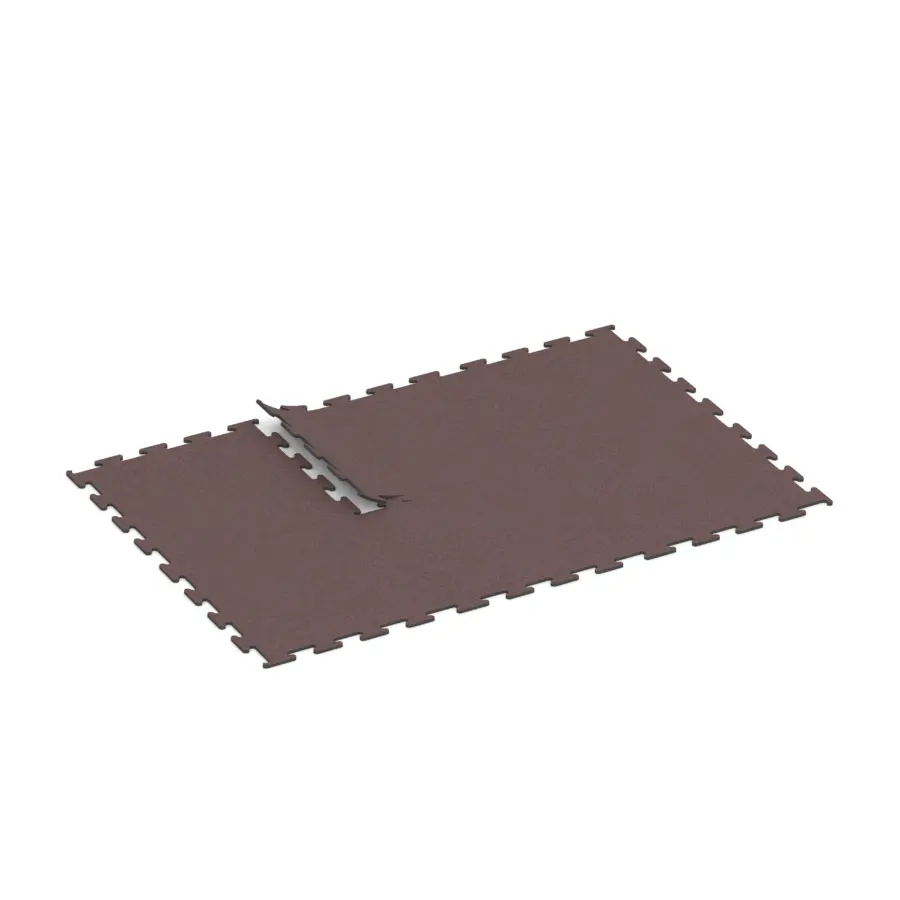

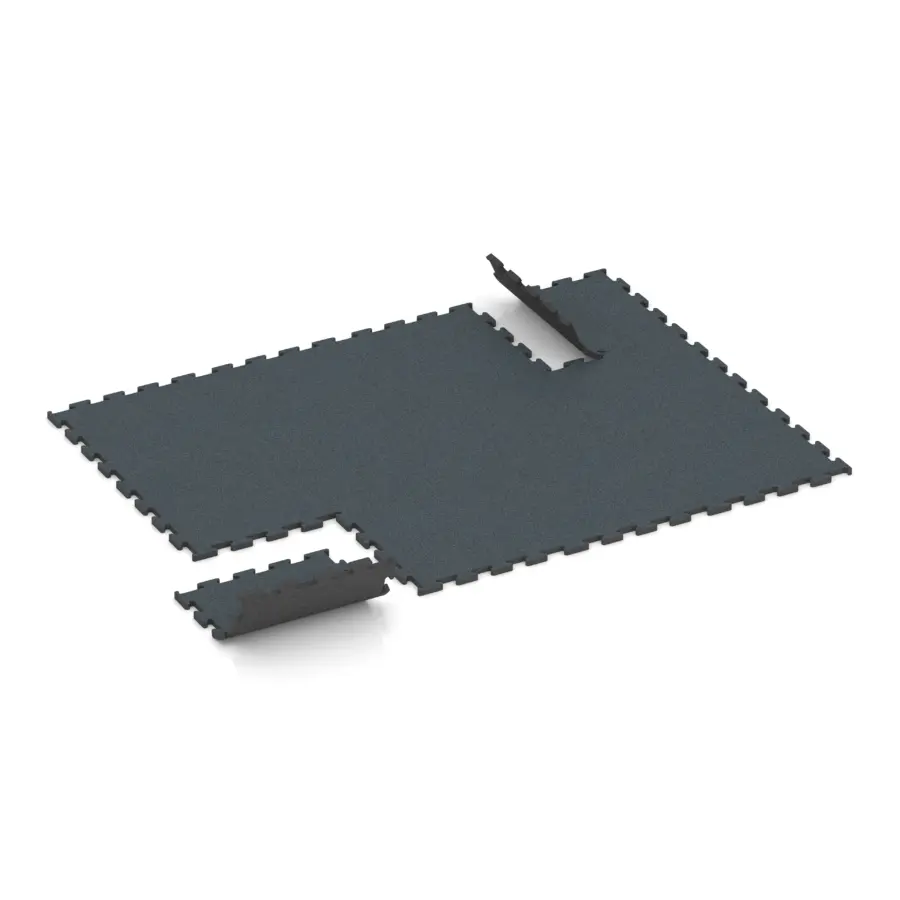

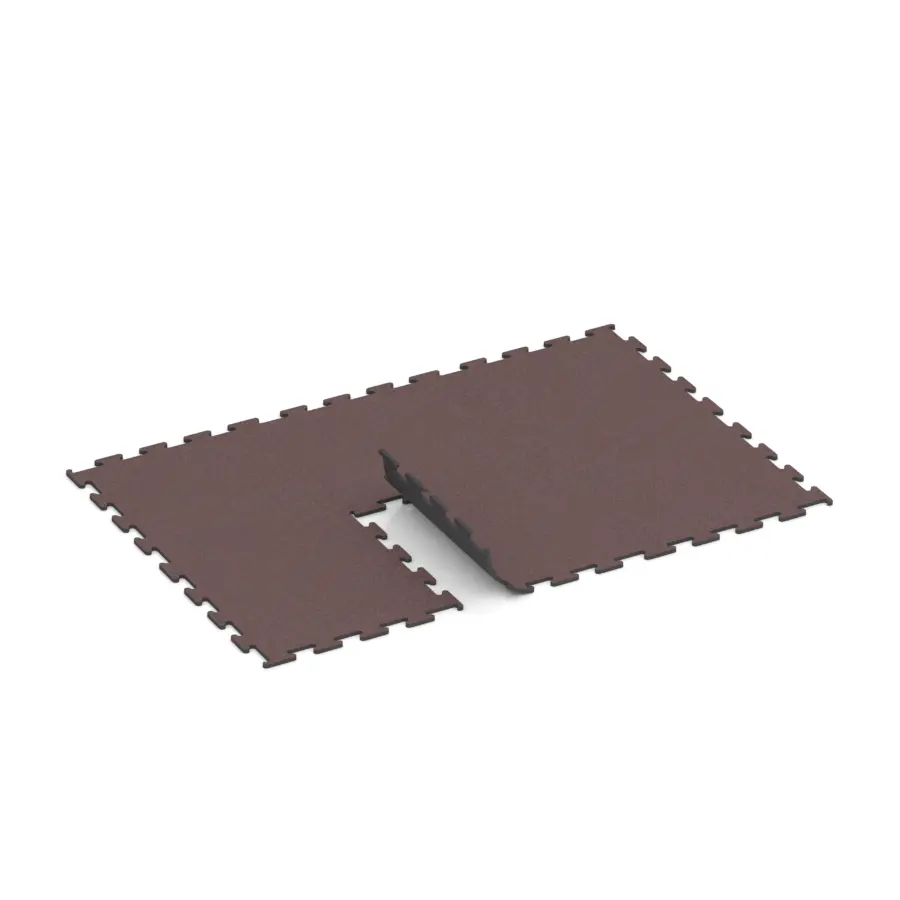

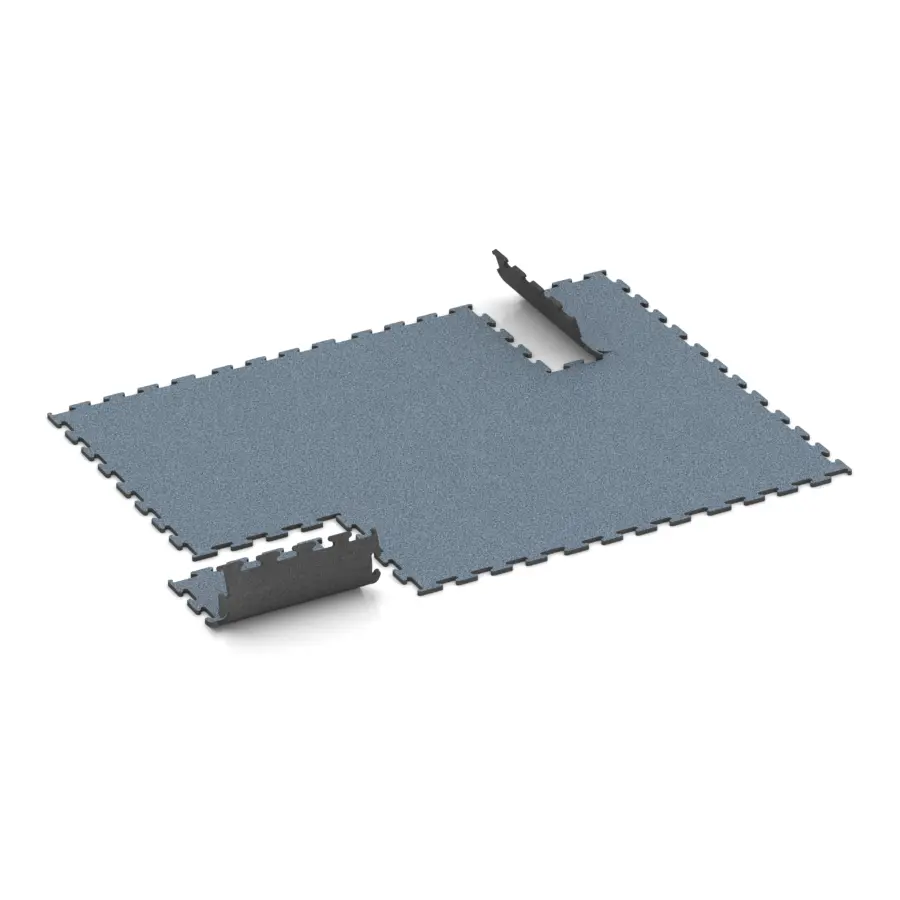

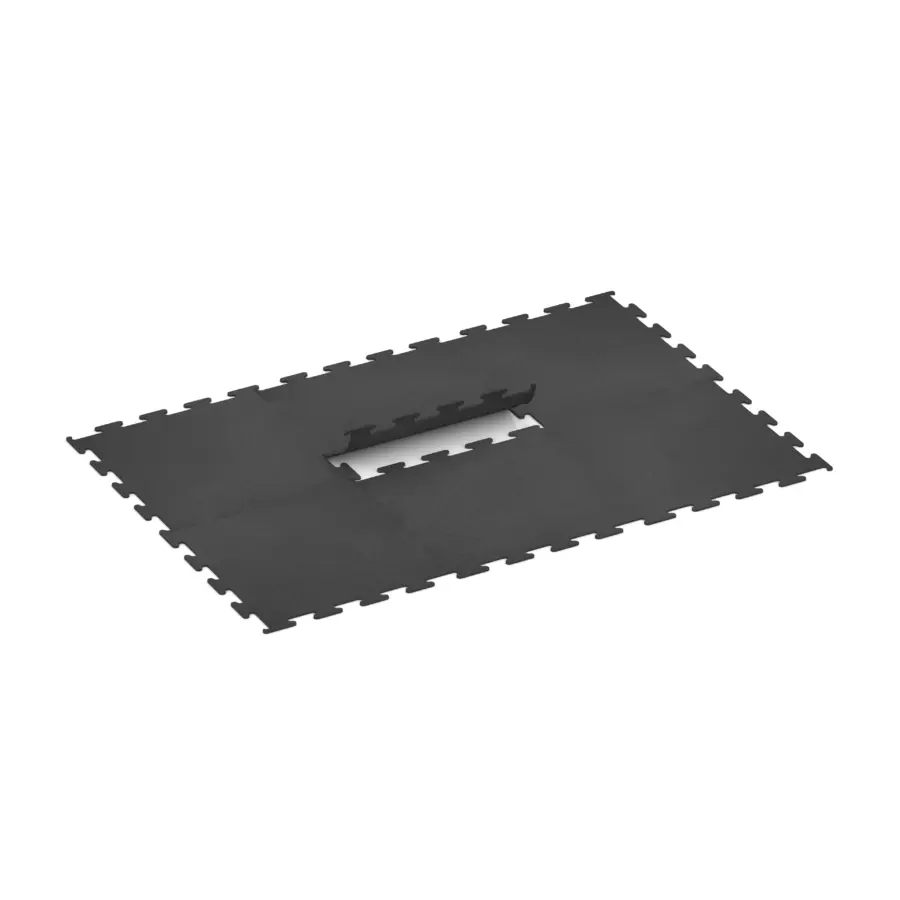

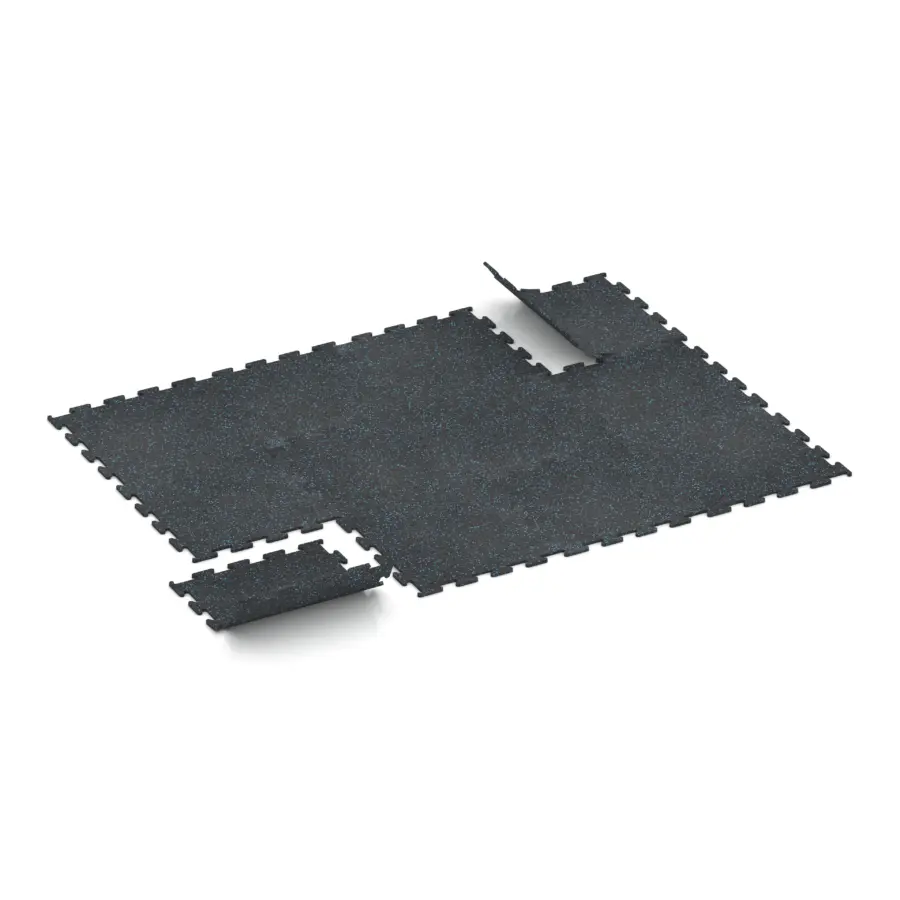

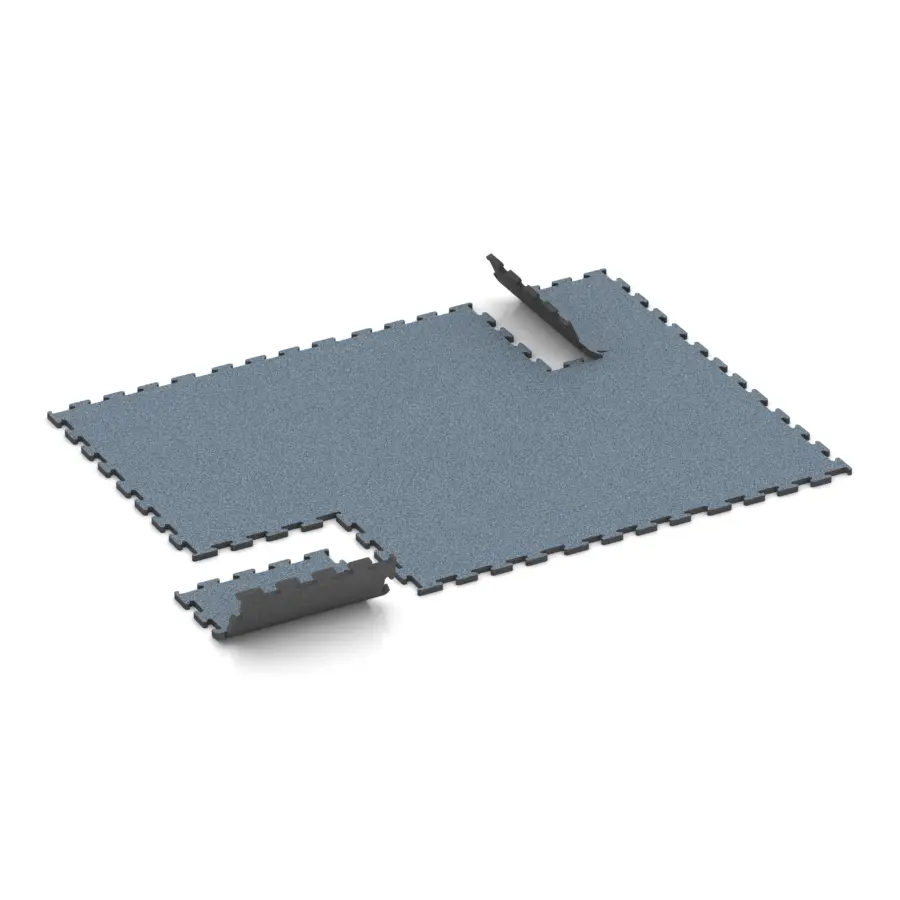

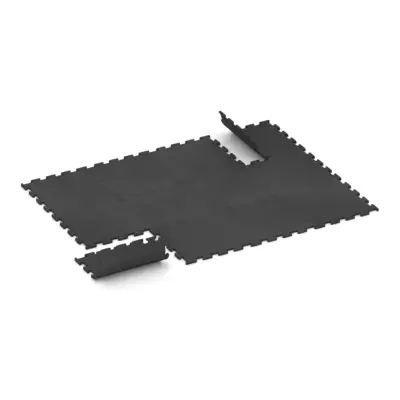

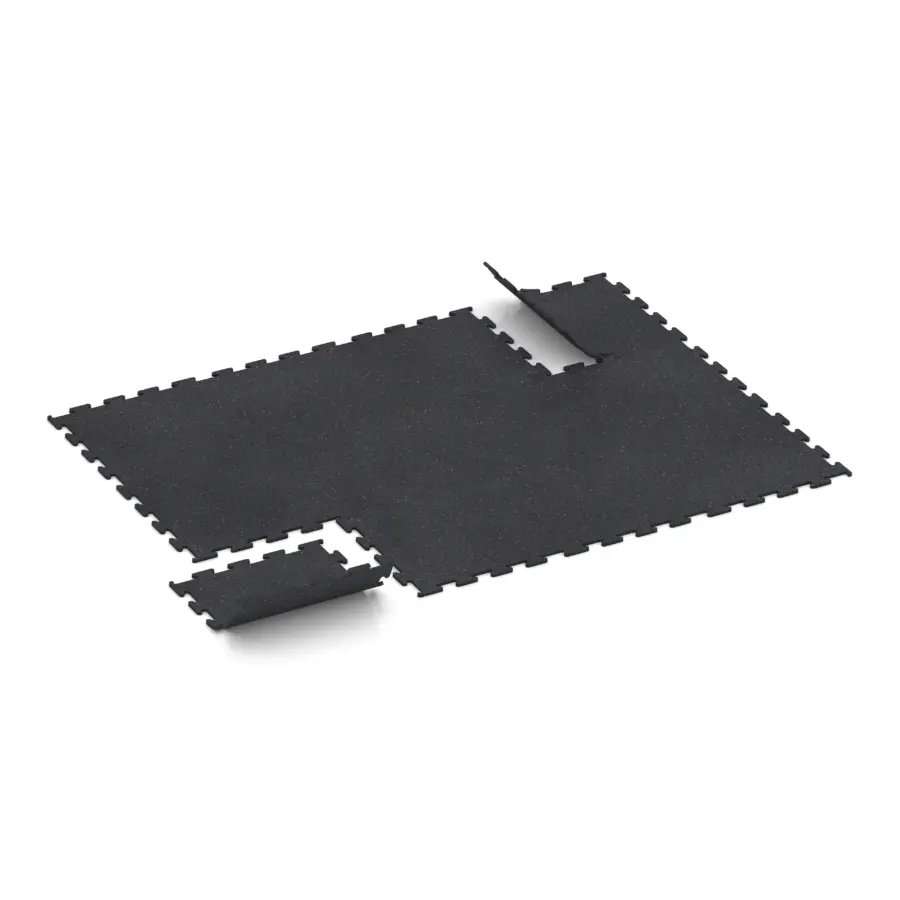

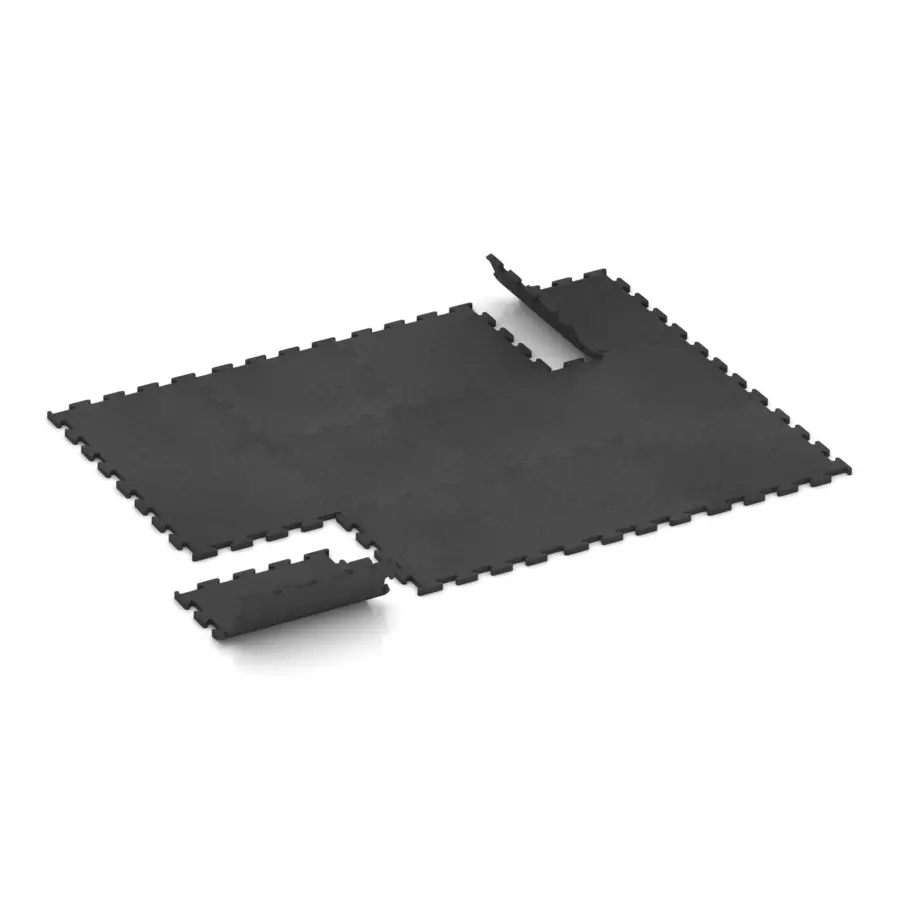

The panels are laid as a floating floor without the need for adhesive. The interlocking joints create a stable, continuous surface that can be lifted and dismantled if required.

A skirting ramp, specially designed to fit the system, is available for transitions to adjacent floor areas.

Ongoing maintenance is also straightforward: for regular cleaning, vacuuming and damp mopping are usually sufficient. If necessary, standard neutral cleaners can also be used.

  • Resilient rubber flooring
  • Very robust (anti-shock)
  • Impact-sound-insulating & non-slip
Material Recycled rubber granules
Dimensions 500 x 500 mm - 1000 x 1000 mm
Weight 10 kg/ m² (10 mm) | 15 kg/m² (15 mm) | 20 kg/m² (20 mm)
Thickness 10 mm | 15 mm | 20 mm
Fire resistance class Fire behaviour in accordance with EN 13501-1: Efl
Also available in Cfl-s1 as an option.

Colours

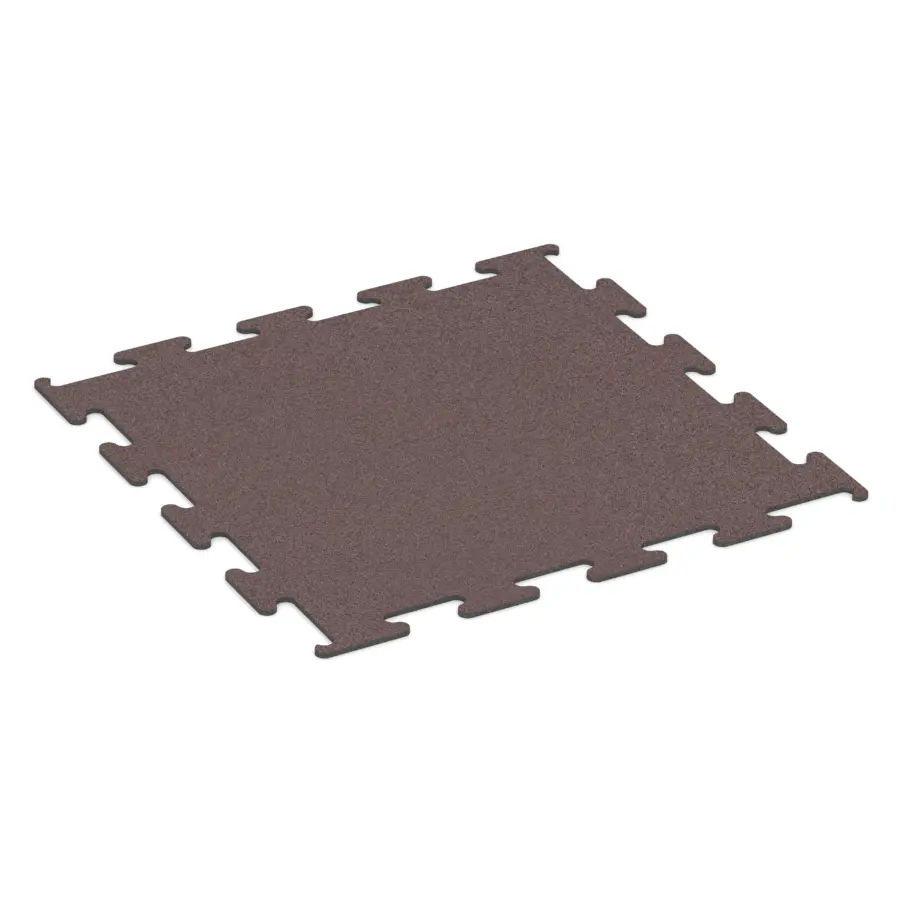

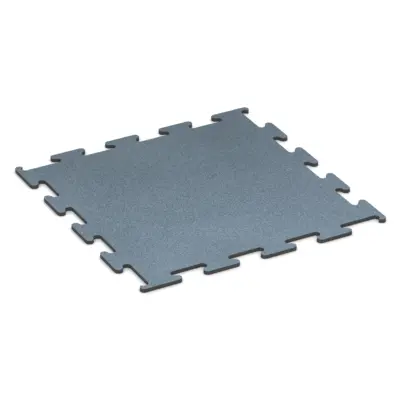

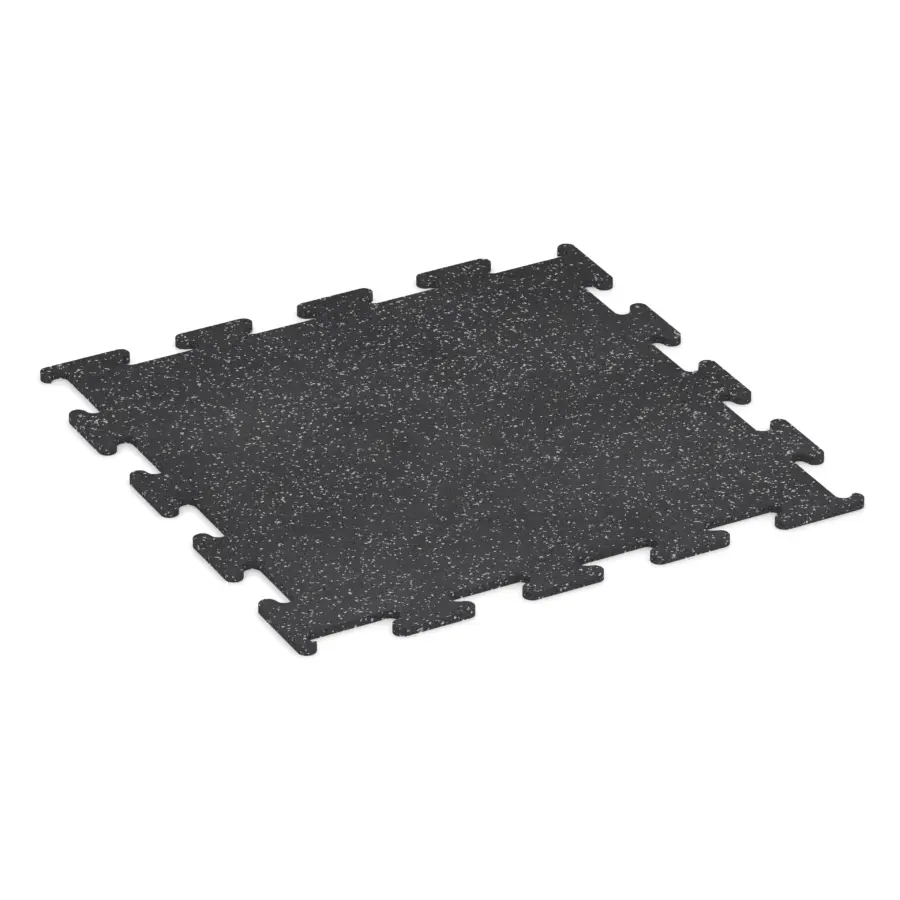

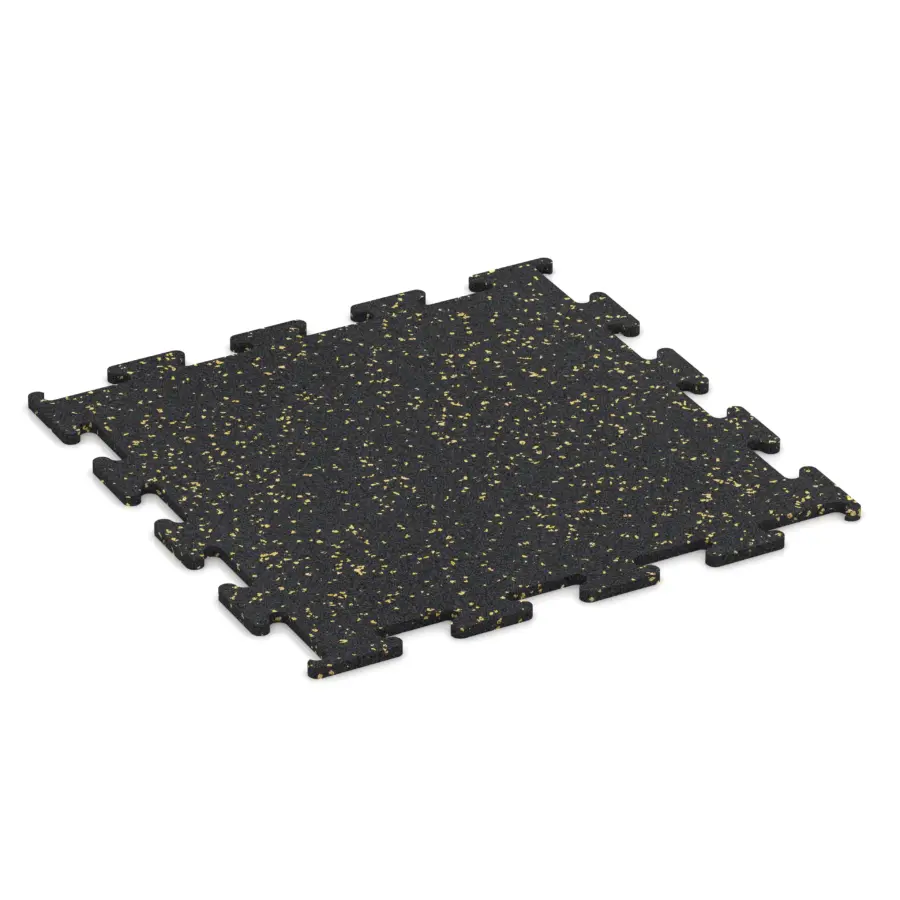

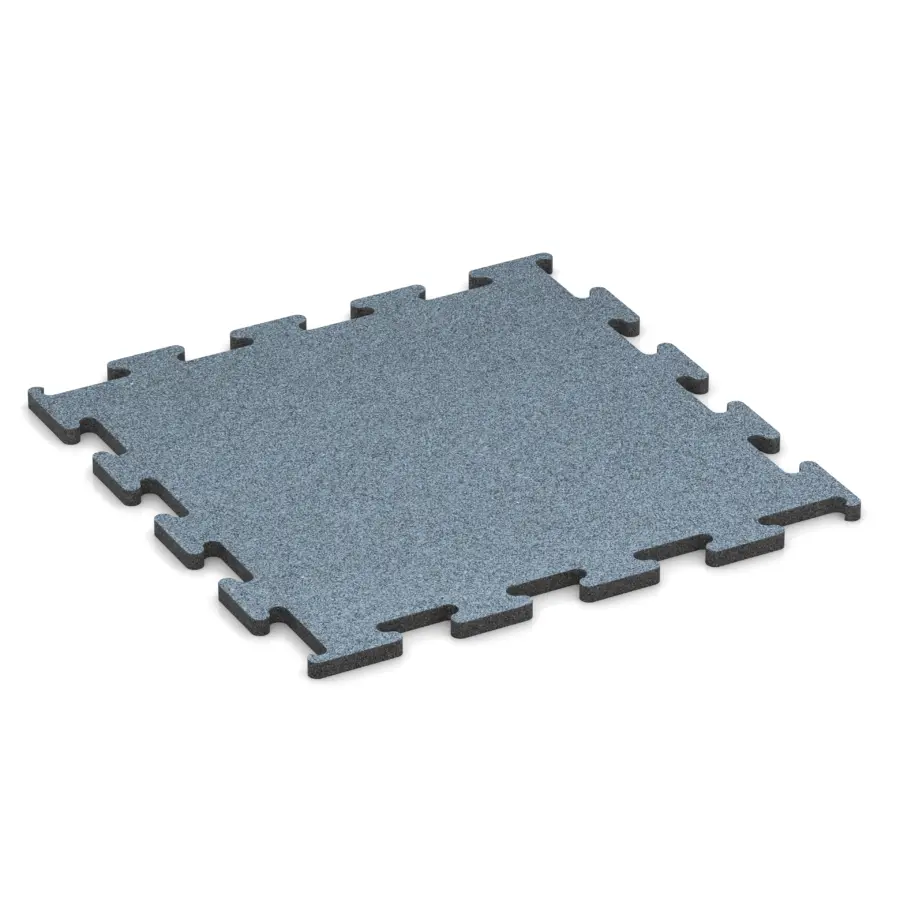

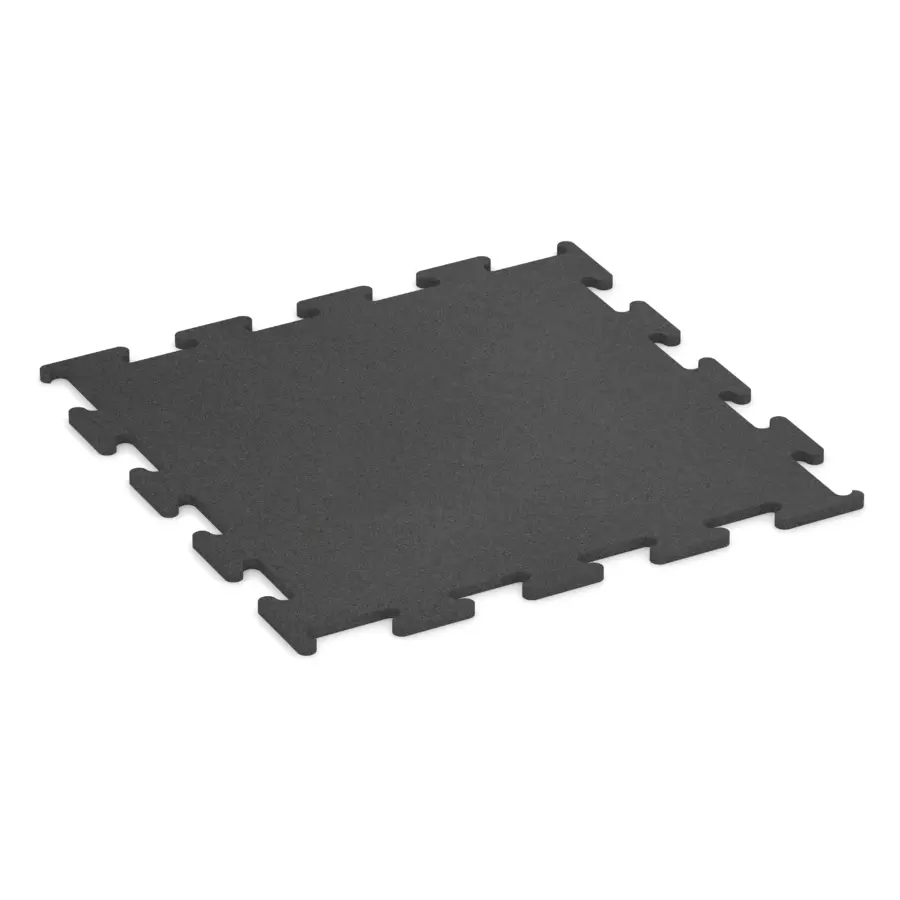

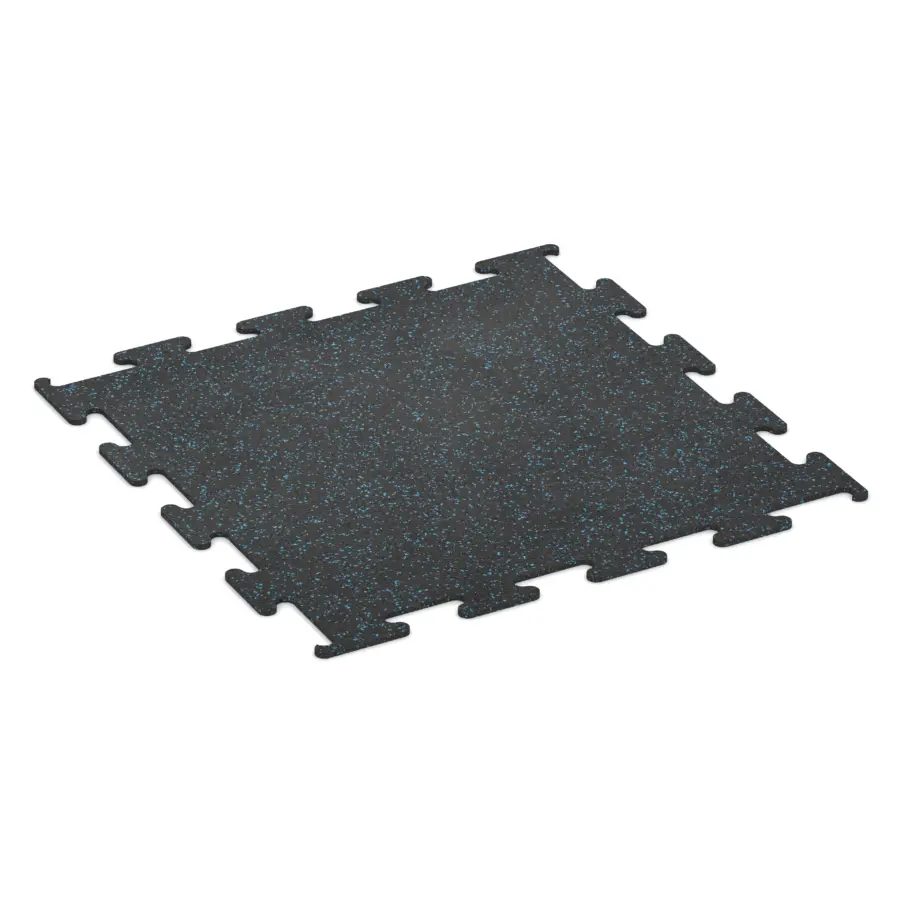

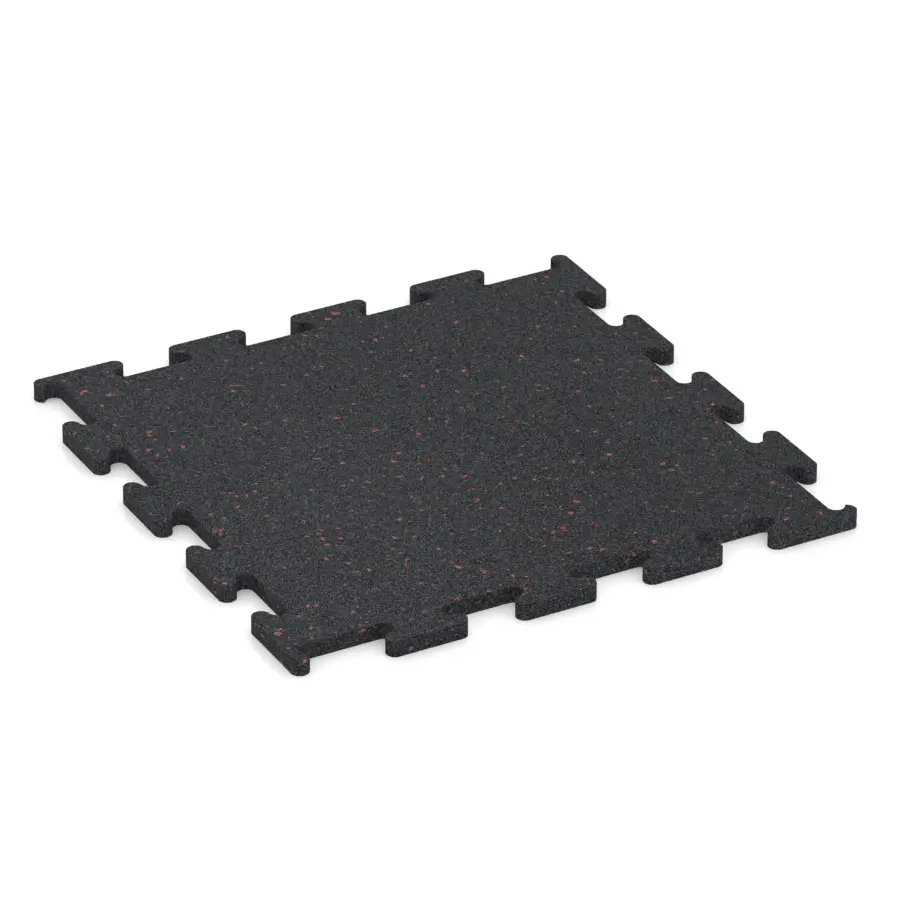

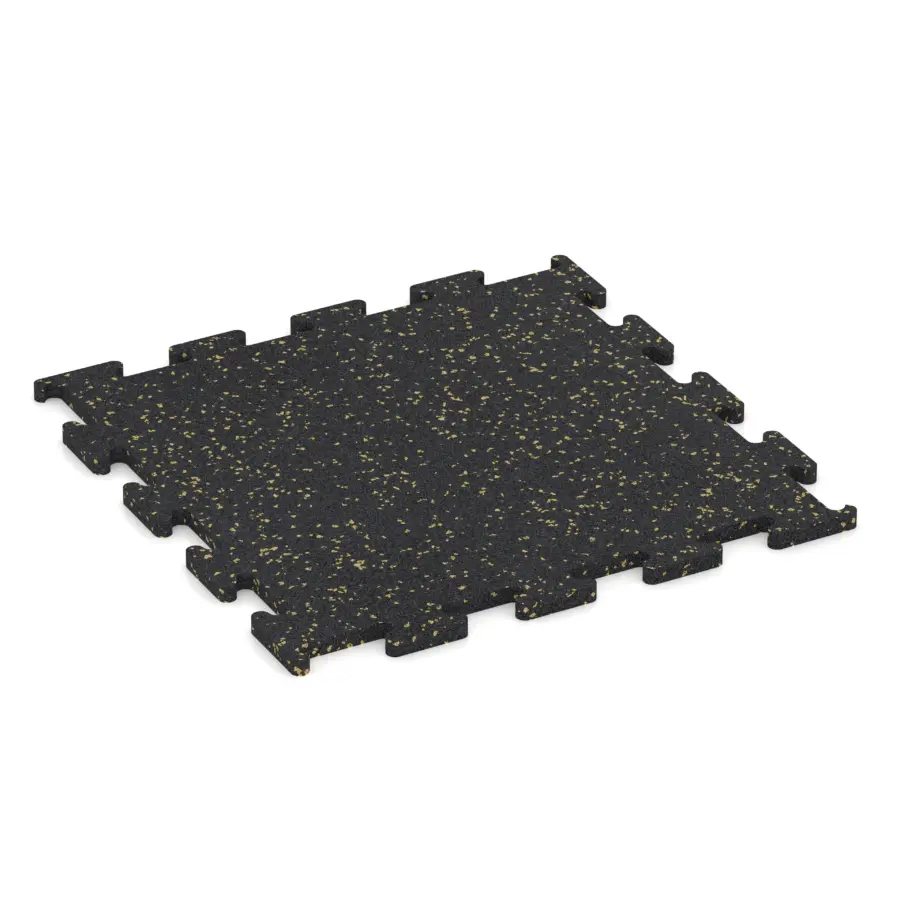

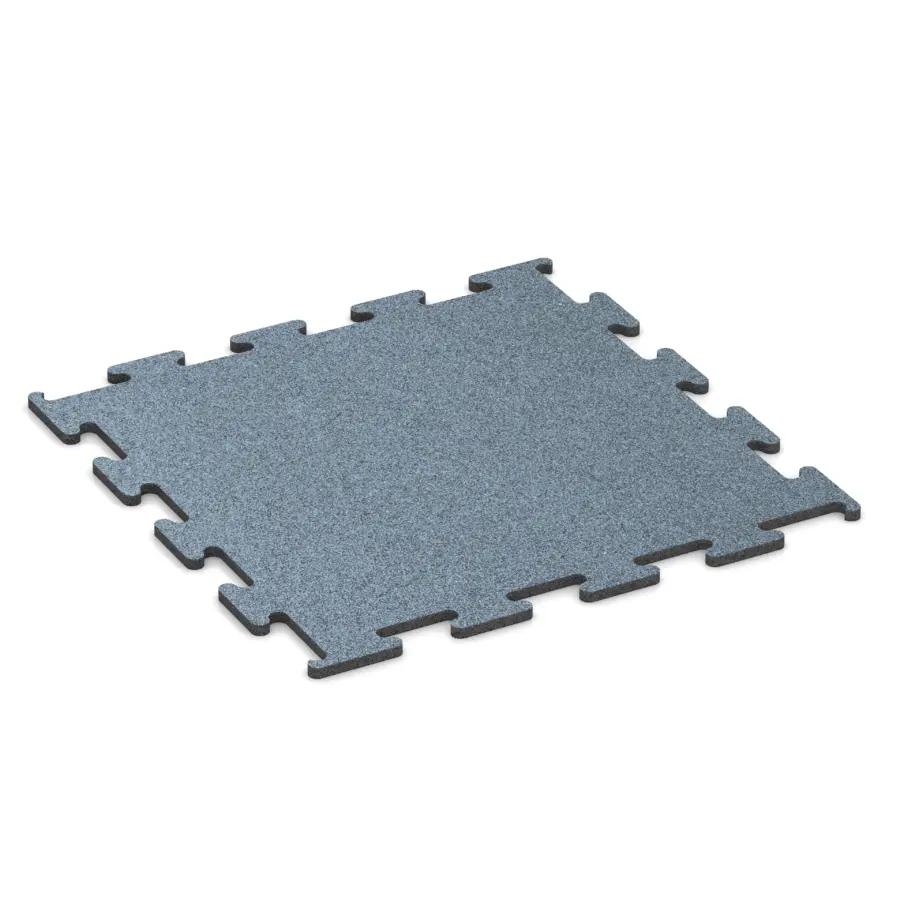

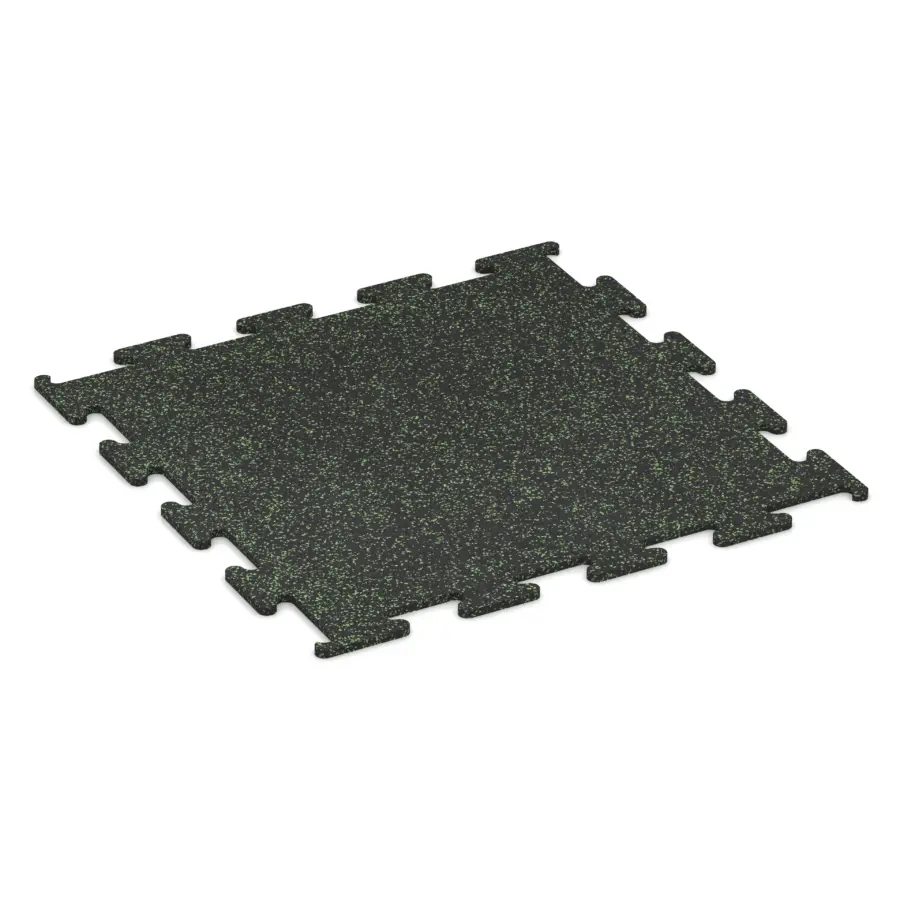

Anthracite Light grey speckled (10%) Light red speckled (10%) Light blue speckled (10%) Light green speckled (10%) Light yellow speckled (10%) Antique silver Fern green Mineral red
